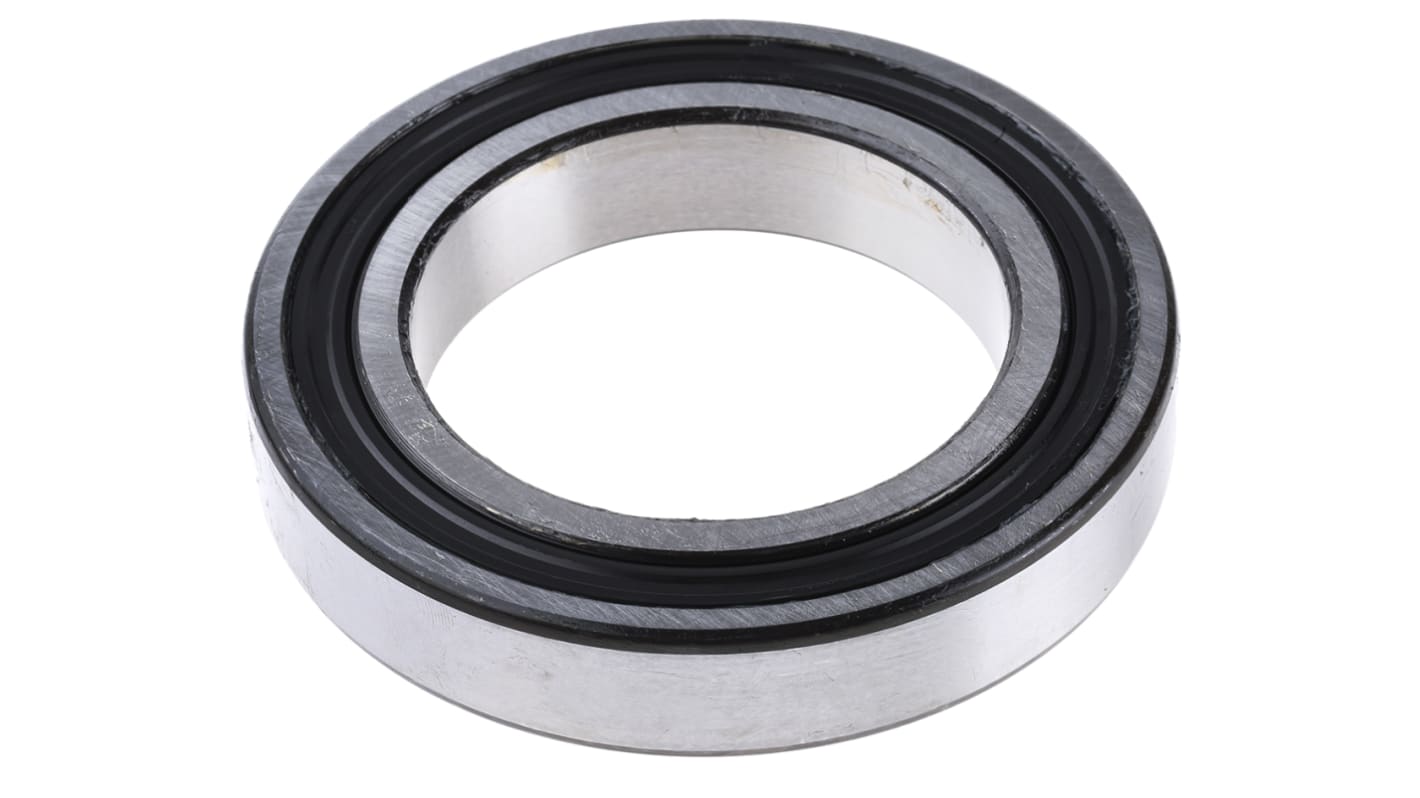

SKF 6014-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 70mm I.D, 110mm O.D
- RS Stock No.:
- 764-3540
- Mfr. Part No.:
- 6014-2RS1
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£49.71
(exc. VAT)
£59.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £49.71 |
5 - 9 | £47.72 |
10 - 24 | £46.73 |
25 + | £45.73 |
*price indicative
- RS Stock No.:
- 764-3540
- Mfr. Part No.:
- 6014-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 70mm | |
Outside Diameter | 110mm | |
Race Width | 20mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 31kN | |
Dynamic Load Rating | 39.7kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Race Material | Steel | |
Partial Bearing Code | 6014 | |
Flange Outside Diameter | 110mm | |
Model Number p | 60142RS | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 70mm | ||
Outside Diameter 110mm | ||
Race Width 20mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 31kN | ||
Dynamic Load Rating 39.7kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Race Material Steel | ||
Partial Bearing Code 6014 | ||
Flange Outside Diameter 110mm | ||
Model Number p 60142RS | ||
RoHS Status: Exempt
SKF Ball Bearing, Deep-Groove Bearing Type, 70mm ID, 110mm OD, 20mm Race Width - 6014-2RS1
To make sure your machinery goes with the flow, pick this ball bearing from SKF. It's a versatile option that gets radial and axial loads moving in both directions with minimal friction. Since it's a sealed deep-groove type, the unit operates with minimal resistance while preventing dust and debris from getting in. Its dynamic load rating of 39.7kN means it's suitable for high loads and speeds, so you can trust it to do the heavy lifting.
• Steel cage for resistance to wear and corrosion, ensuring a long service life
• Bore diameter of 70mm and outer diameter of 110mm improves load stability
• 0.63kg weight adds minimal strain to your setup
• Bore diameter of 70mm and outer diameter of 110mm improves load stability
• 0.63kg weight adds minimal strain to your setup
Applications
• Automotive industry
• Medical devices
• Agricultural equipment
• Consumer electronics
• Medical devices
• Agricultural equipment
• Consumer electronics
What type of lubricant should I use with this ball bearing?
You should use grease on this ball bearing to reduce friction as well as to prevent contamination and corrosion.
What's a parallel bore?
A parallel bore runs straight throughout the centre of the bearing. This helps you mount the unit accurately and achieves the stability necessary to support heavy axial and radial loads.
