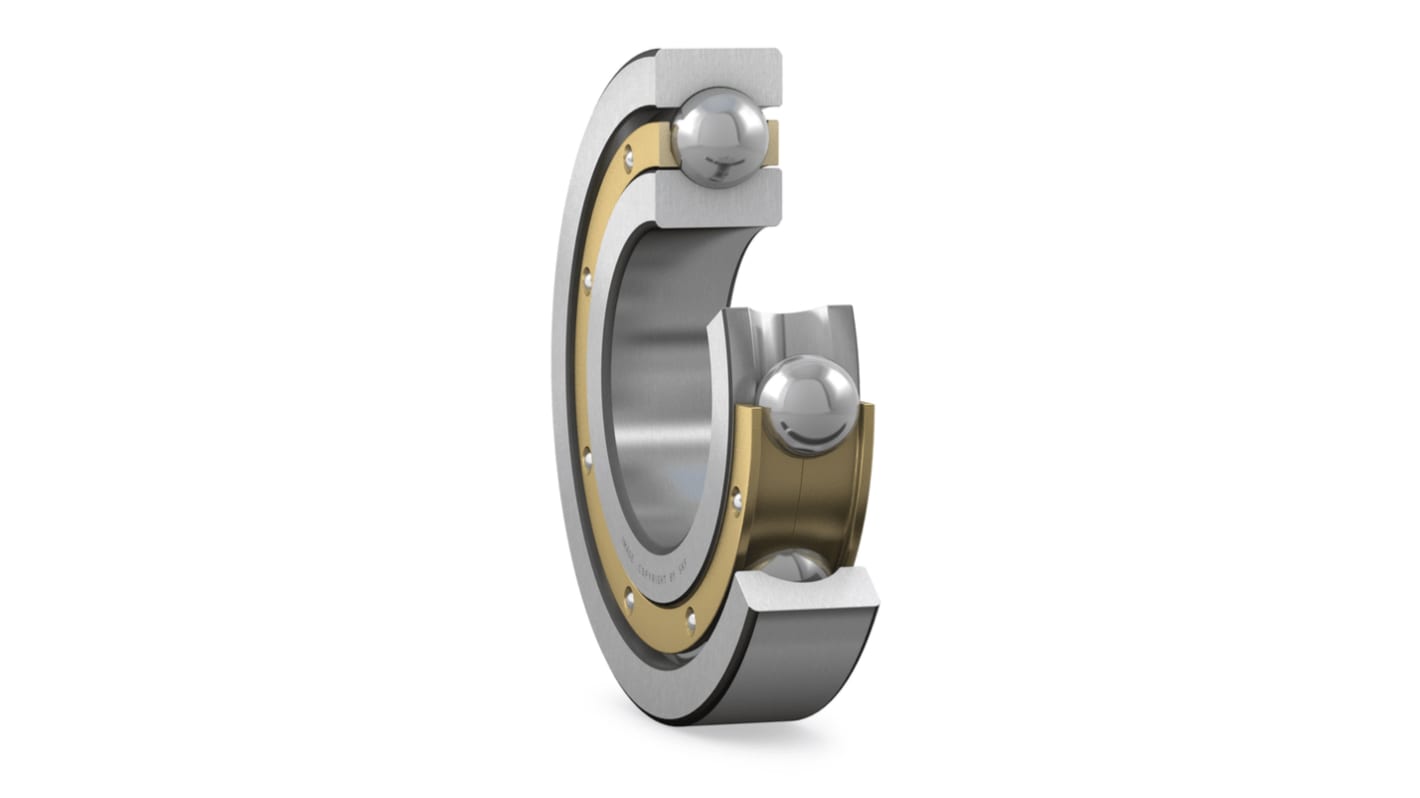

SKF 6014 M Single Row Deep Groove Ball Bearing- Open Type 70mm I.D, 110mm O.D
- RS Stock No.:
- 207-6404
- Mfr. Part No.:
- 6014 M
- Brand:
- SKF
Subtotal (1 unit)*
£288.50
(exc. VAT)
£346.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £288.50 |
*price indicative
- RS Stock No.:
- 207-6404
- Mfr. Part No.:
- 6014 M
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 70mm | |
Outside Diameter | 110mm | |
Race Width | 20mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Machined Metal | |
Number of Rows | 1 | |
Static Load Rating | 31kN | |
Dynamic Load Rating | 39.7kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 6014 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 70mm | ||
Outside Diameter 110mm | ||
Race Width 20mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Number of Rows 1 | ||
Static Load Rating 31kN | ||
Dynamic Load Rating 39.7kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6014 | ||
- COO (Country of Origin):
- FR
The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 70 mm ID and 110 mm OD.
Bearing material is of bearing steel
Cylindrical bore type
Cylindrical bore type
