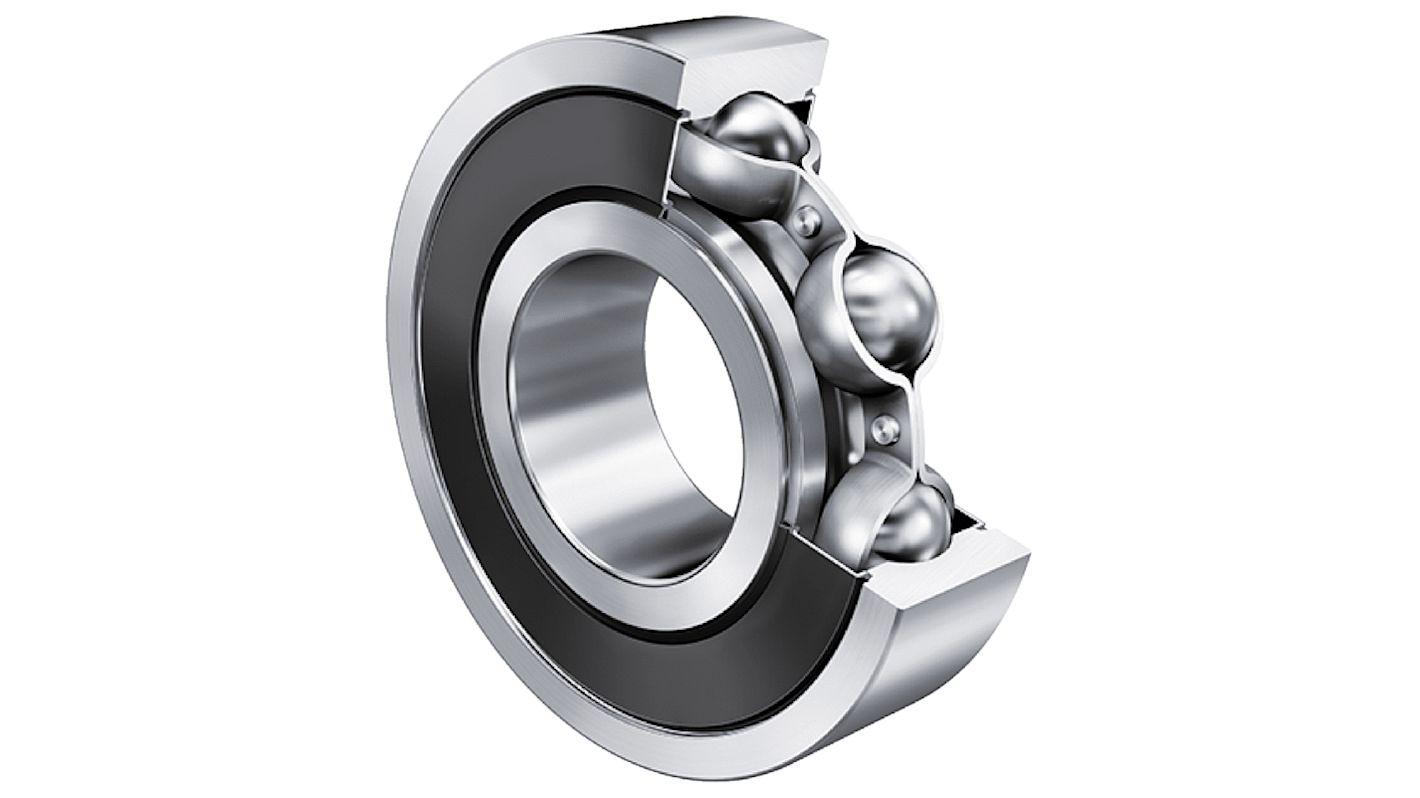

FAG 609-2RSR-CO7 1 Row Deep Groove Ball Bearing - 9 mm ID, 24 mm OD
- RS Stock No.:
- 277-6628
- Mfr. Part No.:
- 609-2RSR-CO7
- Brand:
- FAG
Subtotal (1 pack of 10 units)*
£69.35
(exc. VAT)
£83.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £6.935 | £69.35 |
*price indicative
- RS Stock No.:
- 277-6628
- Mfr. Part No.:
- 609-2RSR-CO7
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 9mm | |
| Outside Diameter | 24mm | |
| Race Width | 7mm | |
| Cage Material | Steel Sheet Metal | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 1.41kN | |
| Dynamic Load Rating | 3.3kN | |
| Series | 60 | |
| Standards/Approvals | No | |
| Limiting Speed | 20300rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 9mm | ||
Outside Diameter 24mm | ||
Race Width 7mm | ||
Cage Material Steel Sheet Metal | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 1.41kN | ||
Dynamic Load Rating 3.3kN | ||
Series 60 | ||
Standards/Approvals No | ||
Limiting Speed 20300rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
Schaeffler Series 60 Deep Groove Ball Bearing, 9mm Inside Diameter, 24mm Outside Diameter - 609-2RSR-CO7
This deep groove ball bearing is designed to support radial loads and enable smooth rotational motion in Compact electromechanical systems. It is a single-row, sealed unit with a steel sheet metal cage, intended for use where Compactness and sealed operation are required within industrial automation, electronics and electrical equipment.
Features & Benefits
• Sealed construction prevents contaminant ingress and reduces maintenance
• High permissible speed of 20,300 r/min supports fast-rotating shafts
• Dynamic capacity of 3.3 kN endures fluctuating radial loads
• Static capacity of 1.41 kN resists shock and standstill loads
• Low fatigue limit of 88 N indicates fatigue performance under repeated stress
• Operating range −30°C to 100°C suits varied temperature environments
• High permissible speed of 20,300 r/min supports fast-rotating shafts
• Dynamic capacity of 3.3 kN endures fluctuating radial loads
• Static capacity of 1.41 kN resists shock and standstill loads
• Low fatigue limit of 88 N indicates fatigue performance under repeated stress
• Operating range −30°C to 100°C suits varied temperature environments
**Applications**
• Suitable for miniature motors in automation equipment
• Ideal for spindle support in small electric actuators
• Used with precision fans and cooling blowers in electronics
• Can be used for rotary encoders in control systems
• Used for Compact gearboxes in robotics joints
• Ideal for spindle support in small electric actuators
• Used with precision fans and cooling blowers in electronics
• Can be used for rotary encoders in control systems
• Used for Compact gearboxes in robotics joints
What shaft shoulder and housing shoulder limits should I check during assembly?
Ensure the shaft shoulder diameter meets the minimum clearance of 11mm and the housing shoulder does not exceed 22mm to avoid interference with ring shoulders.
How should chamfer and fillet dimensions be accommodated in mating parts?
Provide a minimum chamfer of 0.3mm and keep fillet radii at mating shoulders below 0.3mm to permit proper seating of the rings.
What weight and handling considerations apply for installation?
The unit weighs 16 g, enabling manual handling without special lifting aids
handle with care to avoid seal damage.
Which calculation factor is useful for life estimations?
Use the provided calculation factor of 12.8 when applying standard bearing life formulae for planning service intervals.
