SKF 2206 E-2RS1KTN9/C3 Self Aligning Ball Bearing- Both Sides Sealed 30mm I.D, 62mm O.D
- RS Stock No.:
- 209-1897
- Mfr. Part No.:
- 2206 E-2RS1KTN9/C3
- Brand:
- SKF
Subtotal (1 unit)*
£44.50
(exc. VAT)
£53.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £44.50 |
*price indicative
- RS Stock No.:
- 209-1897
- Mfr. Part No.:
- 2206 E-2RS1KTN9/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 30mm | |
Outside Diameter | 62mm | |
Race Width | 20mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 4.65kN | |
Dynamic Load Rating | 15.6kN | |
Bore Type | Tapered | |
Bearing Series | 2 Light | |
Partial Bearing Code | 2206 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Outside Diameter 62mm | ||
Race Width 20mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 4.65kN | ||
Dynamic Load Rating 15.6kN | ||
Bore Type Tapered | ||
Bearing Series 2 Light | ||
Partial Bearing Code 2206 | ||

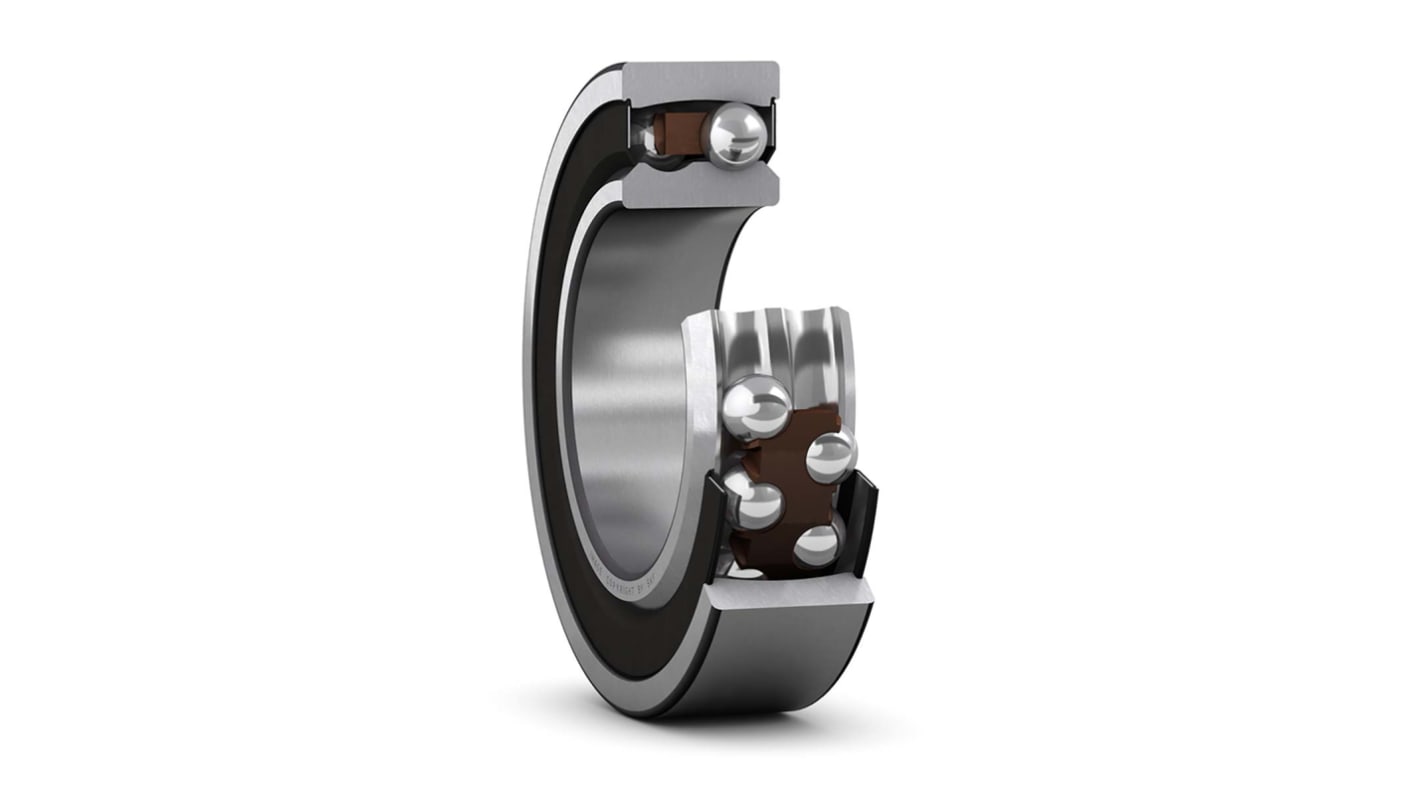

The SKF self-aligning ball bearings with two rows of balls having bore diameter 30mm and outside diameter 62mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Tapered type bore
Steel bearing
Steel bearing
