SKF 2312 K/C3 Self Aligning Ball Bearing- Open Type 60mm I.D, 130mm O.D
- RS Stock No.:
- 207-9823
- Mfr. Part No.:
- 2312 K/C3
- Brand:
- SKF
Subtotal (1 unit)*
£244.80
(exc. VAT)
£293.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 999,999,990 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £244.80 |
*price indicative
- RS Stock No.:
- 207-9823
- Mfr. Part No.:
- 2312 K/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 60mm | |
Outside Diameter | 130mm | |
Race Width | 46mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 2 | |
Static Load Rating | 28.5kN | |
Dynamic Load Rating | 87.1kN | |
Bore Type | Tapered | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 2312 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 60mm | ||
Outside Diameter 130mm | ||
Race Width 46mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Static Load Rating 28.5kN | ||
Dynamic Load Rating 87.1kN | ||
Bore Type Tapered | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 2312 | ||
- COO (Country of Origin):
- MY

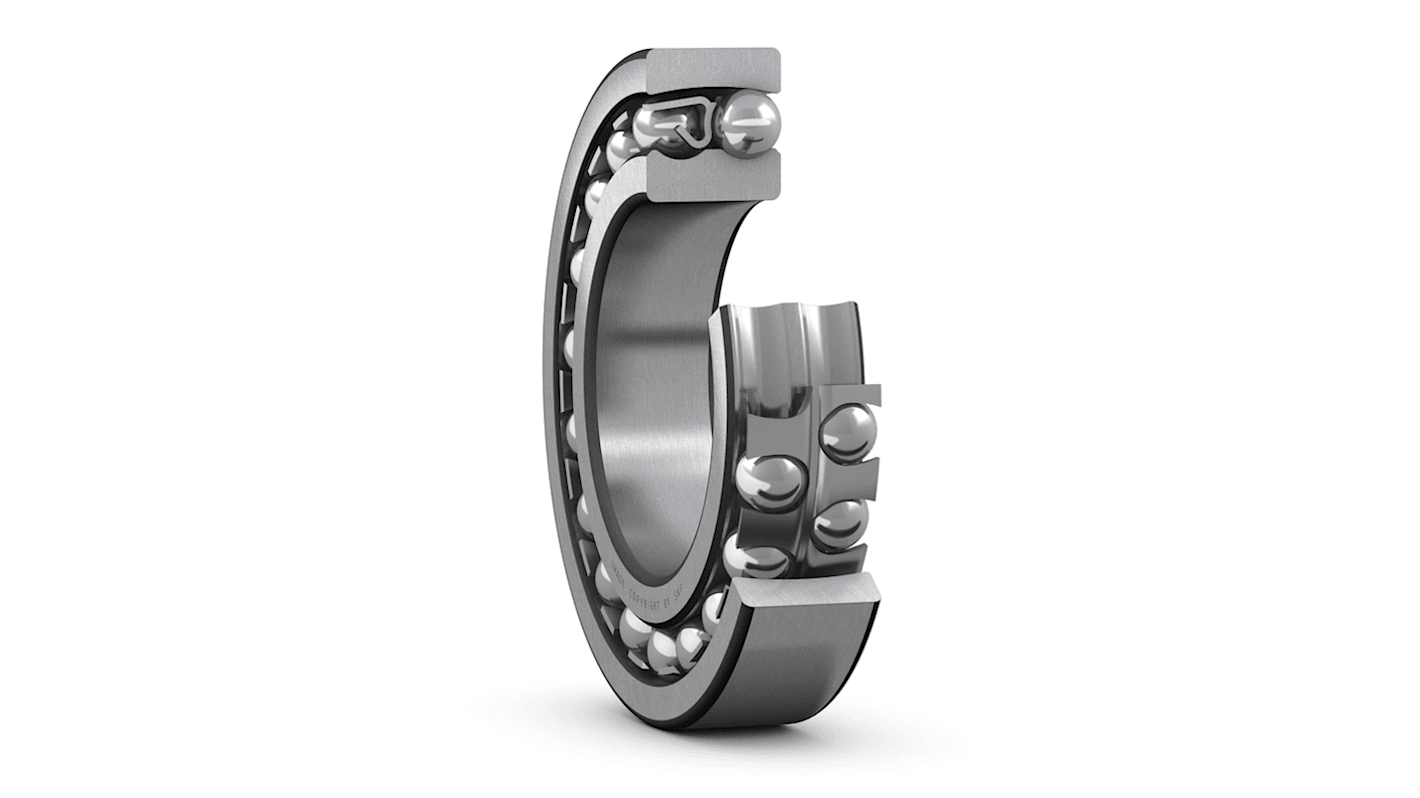

The SKF self-aligning ball bearings with two rows of balls having bore diameter 60mm and outside diameter 130mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Tapered type bore
Steel bearing
Steel bearing
