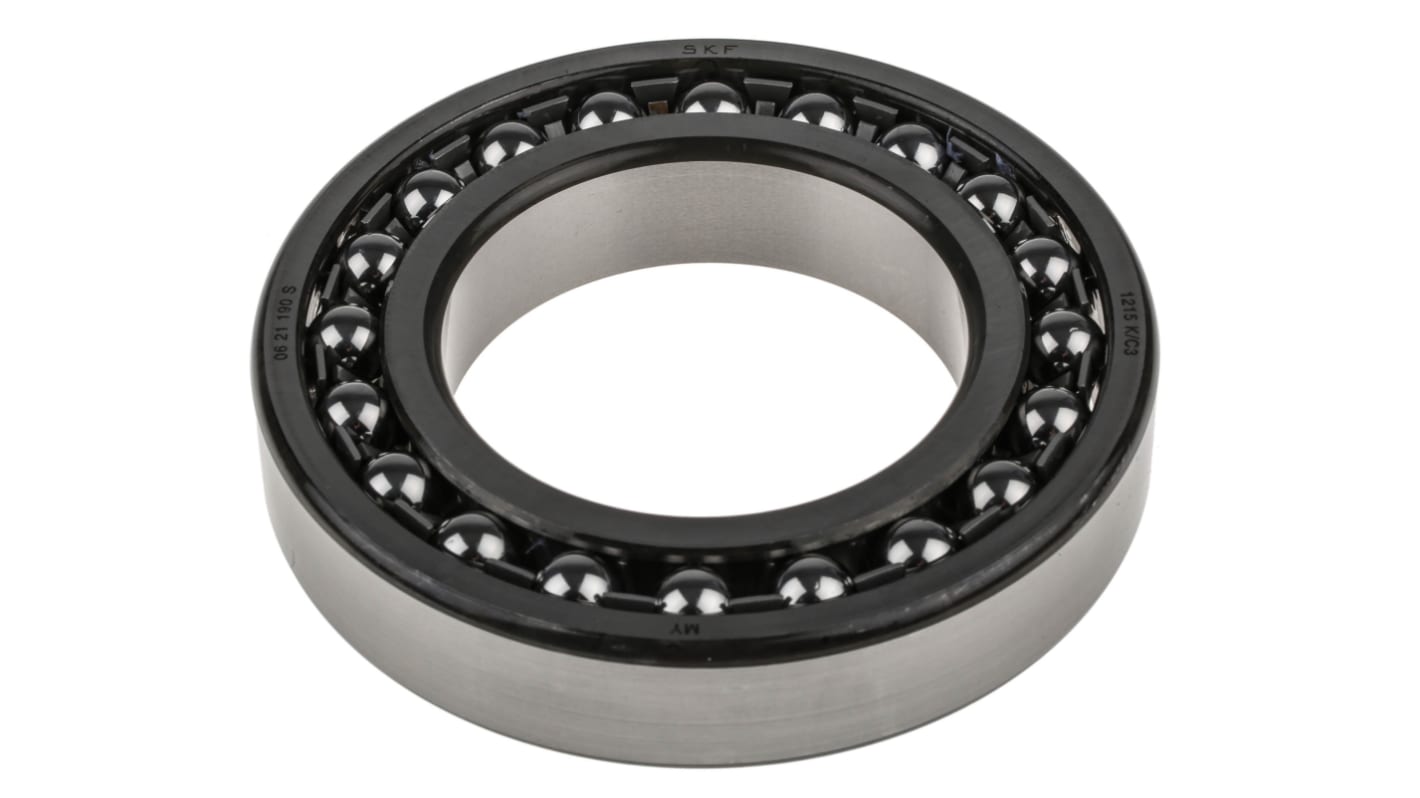

SKF 1215 K/C3 75 mm ID 2 Row Ball Bearing -, 130 mm OD
- RS Stock No.:
- 233-7052
- Mfr. Part No.:
- 1215 K/C3
- Brand:
- SKF
Subtotal (1 unit)*
£131.15
(exc. VAT)
£157.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £131.15 |
*price indicative
- RS Stock No.:
- 233-7052
- Mfr. Part No.:
- 1215 K/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 75mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 130mm | |
| Race Width | 25mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 2 | |
| Internal Clearance | C3 | |
| Static Load Rating | 15.6kN | |
| Dynamic Load Rating | 39kN | |
| Standards/Approvals | No | |
| Series | Self-aligning ball bearings | |
| Bore Type | Tapered | |
| Limiting Speed | 6700rpm | |
| Bearing Type | Self-Aligning | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 75mm | ||
Product Type Ball Bearing | ||
Outside Diameter 130mm | ||
Race Width 25mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 2 | ||
Internal Clearance C3 | ||
Static Load Rating 15.6kN | ||
Dynamic Load Rating 39kN | ||
Standards/Approvals No | ||
Series Self-aligning ball bearings | ||
Bore Type Tapered | ||
Limiting Speed 6700rpm | ||
Bearing Type Self-Aligning | ||
The SKF self-aligning ball bearings with two rows of balls having bore diameter 75mm and outside diameter 130mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Tapered type bore
Steel bearing
