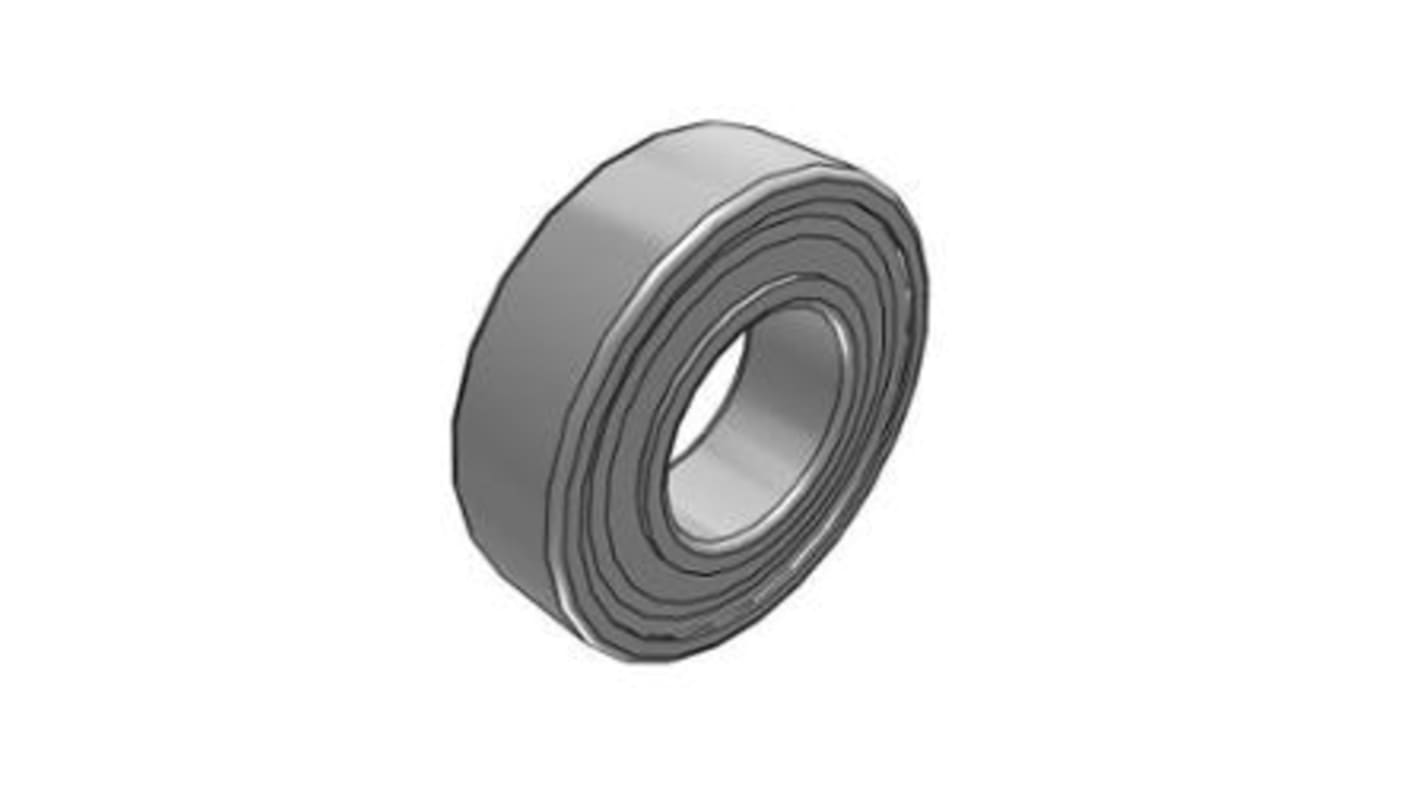

SKF 6205-2RSH/C4 1 Row Ball Bearing - 25 mm ID, 52 mm OD
- RS Stock No.:
- 207-6484
- Mfr. Part No.:
- 6205-2RSH/C4
- Brand:
- SKF
Subtotal (1 unit)*
£10.19
(exc. VAT)
£12.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.19 |
*price indicative
- RS Stock No.:
- 207-6484
- Mfr. Part No.:
- 6205-2RSH/C4
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 25mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 52mm | |
| Race Width | 15mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 7.8kN | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 14.8kN | |
| Series | 6205 | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 8500rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Product Type Ball Bearing | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Internal Clearance C4 | ||
Dynamic Load Rating 14.8kN | ||
Series 6205 | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 8500rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
SKF 6205 Series Deep Groove Ball Bearing, 25mm Inside Diameter, 52mm Outside Diameter - 6205-2RSH/C4
This deep-groove ball bearing is a sealed, single-row rolling element designed to support radial and limited axial loads in rotating machinery. It is suitable for applications where consistent clearance and controlled internal play are required, and where protection against contamination is necessary for continuous operation.
Features and Benefits:
• Sealed construction reduces contamination ingress and maintenance needs
• C4 internal clearance allows thermal expansion compensation
• Sheet-metal cage ensures stable ball guidance at speed
• Steel balls provide consistent rolling contact and wear resistance
• Dynamic load capacity 14.8 kN supports moderate duty cycles
• Limiting speed 8,500 r/min enables high-speed rotation performance
• C4 internal clearance allows thermal expansion compensation
• Sheet-metal cage ensures stable ball guidance at speed
• Steel balls provide consistent rolling contact and wear resistance
• Dynamic load capacity 14.8 kN supports moderate duty cycles
• Limiting speed 8,500 r/min enables high-speed rotation performance
Applications
• Suitable for electric motors in automation equipment
• Ideal for precision fans and cooling assemblies in electronics
• Used with gearboxes in light mechanical drives
• Can be used for spindles in electrical actuator systems
• Suitable for conveyor rollers in assembly lines
• Ideal for precision fans and cooling assemblies in electronics
• Used with gearboxes in light mechanical drives
• Can be used for spindles in electrical actuator systems
• Suitable for conveyor rollers in assembly lines
What bore Interface does it provide for shafts?
It uses a cylindrical bore to accommodate standard press-fit or slip-fit shaft arrangements depending on mounting requirements.
How does the bearing handle side loads in Compact assemblies?
Its single-row deep-groove design permits radial load support with limited axial load capacity in both directions.
What material choices affect compatibility with lubricants and environments?
The races and rolling elements are steel, which is compatible with standard bearing greases
the sealed end prevents ingress that could contaminate the lubricant.
How does cage construction influence operational behaviour at high speed?
The sheet-metal cage offers low centrifugal distortion and good ball spacing, aiding performance near the specified maximum rotational speed.
What static support can it provide when equipment is stationary?
The static load capability is 7.8 kN, allowing it to withstand substantial static forces during stops or parked conditions.
