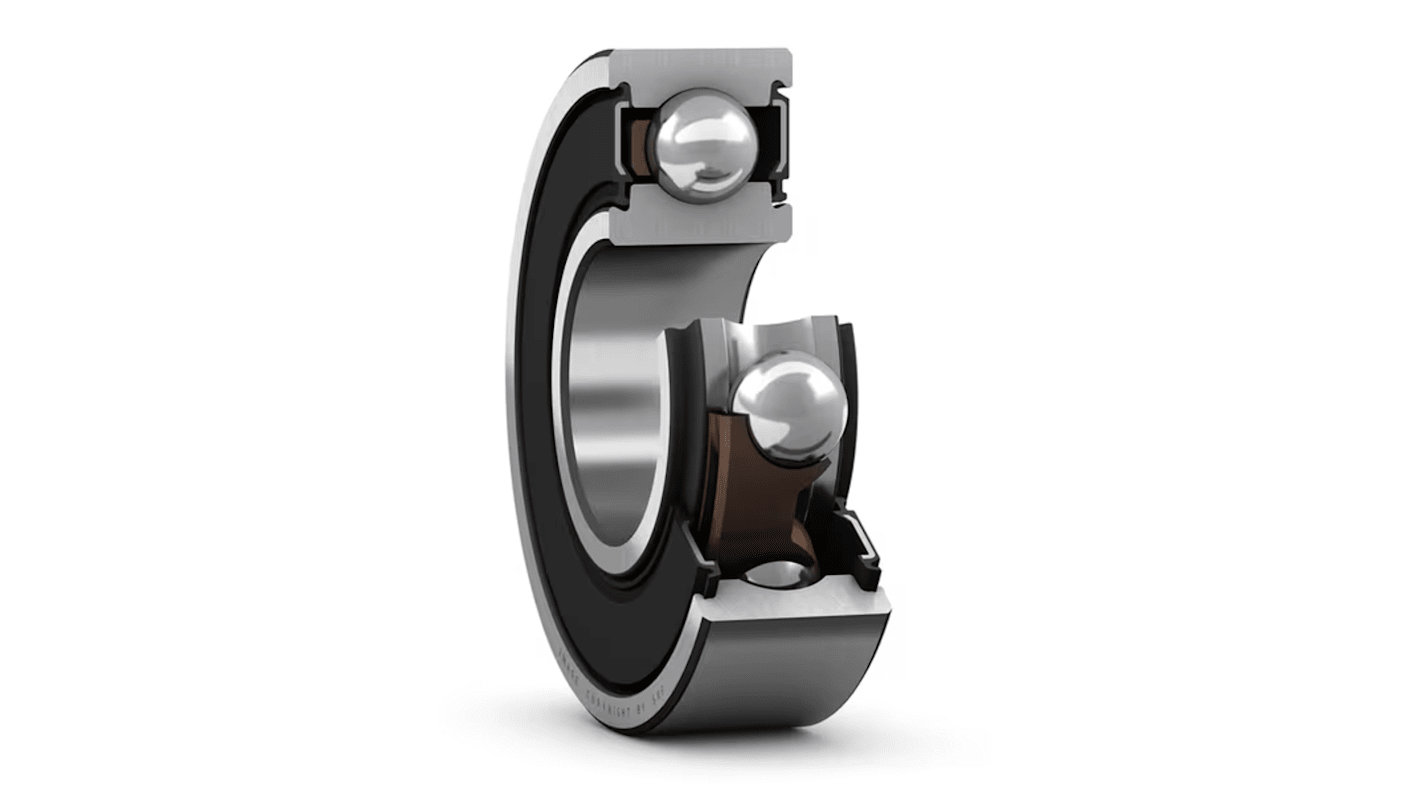

SKF 6205-2RSLTN9/C3VT162 Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 123-4852
- Mfr. Part No.:
- 6205-2RSLTN9/C3VT162
- Brand:
- SKF
Save 7% when you buy 25 units
Subtotal (1 unit)*
£22.08
(exc. VAT)
£26.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £22.08 |
5 - 9 | £21.21 |
10 - 24 | £20.78 |
25 + | £20.34 |
*price indicative
- RS Stock No.:
- 123-4852
- Mfr. Part No.:
- 6205-2RSLTN9/C3VT162
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 15mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 7.8kN | |
Dynamic Load Rating | 14.8kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Model Number p | 6205 | |
Race Type | Plain | |
Partial Bearing Code | 6205 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 14.8kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Model Number p 6205 | ||
Race Type Plain | ||
Partial Bearing Code 6205 | ||
- COO (Country of Origin):
- BG
SKF Deep Groove Ball Bearing, 52mm Outside Diameter, 14.8 kN Dynamic Load Rating - 6205-2RSLTN9/C3VT162
This deep groove ball bearing is built for efficiency and dependability in diverse mechanical applications. Its sturdy construction and sealed design contribute to prolonged performance while managing heavy loads. This bearings versatility makes it suitable for various industries, especially where low-friction operation is essential.
Features & Benefits
• Robust sealing on both sides to block contamination
• C3 bearing clearance accommodates thermal expansion for enhanced performance
• Constructed from high-quality steel for improved durability
• Capable of enduring dynamic loads up to 14.8kN
• Single-row configuration ensures smooth operation and reduced noise
• C3 bearing clearance accommodates thermal expansion for enhanced performance
• Constructed from high-quality steel for improved durability
• Capable of enduring dynamic loads up to 14.8kN
• Single-row configuration ensures smooth operation and reduced noise
Applications
• Utilised in high-speed electric motors
• Ideal for industrial machinery requiring low-friction bearings
• Appropriate for automation and robotics where precision is key
• Used in electrical equipment to boost operational efficiency
• Ideal for industrial machinery requiring low-friction bearings
• Appropriate for automation and robotics where precision is key
• Used in electrical equipment to boost operational efficiency
What type of load can it support in operations?
It can manage dynamic loads up to 14.8kN, making it suitable for various applications.
Is it compatible with high-speed applications?
Yes, it is designed for high-speed operations, ensuring efficient performance.
How does the sealing affect performance over time?
The sealing prevents the ingress of dirt and moisture, thus extending the bearing's lifespan and maintaining its functionality.
Can this be used in applications with thermal fluctuations?
Yes, the C3 clearance allows for thermal expansion, assuring reliable operation amid varying temperatures.
