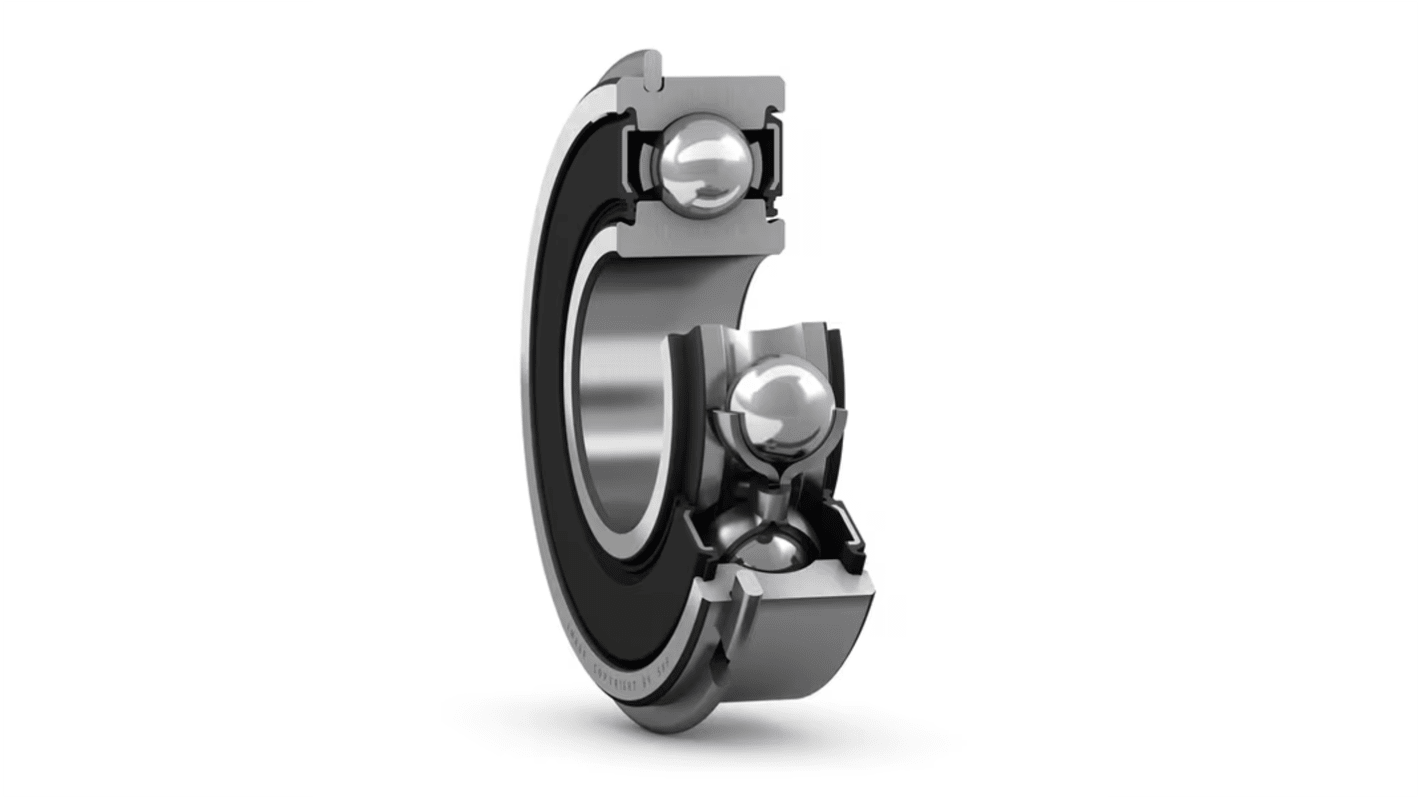

SKF 6205-2RSHNR Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 126-2380
- Mfr. Part No.:
- 6205-2RSHNR
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£21.91
(exc. VAT)
£26.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £21.91 |
5 - 9 | £21.00 |
10 - 24 | £20.56 |
25 + | £20.15 |
*price indicative
- RS Stock No.:
- 126-2380
- Mfr. Part No.:
- 6205-2RSHNR
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 15mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 7.8kN | |
Dynamic Load Rating | 14.8kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Model Number p | 62052RSNR | |
Race Material | Steel | |
Partial Bearing Code | 6205 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 14.8kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Model Number p 62052RSNR | ||
Race Material Steel | ||
Partial Bearing Code 6205 | ||
- COO (Country of Origin):
- BG
SKF High Temperature Deep Groove Ball Bearing
SKF Ball Bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in high operating temperatures.
Features:
Excellent performance in hot conditions, dry environments and low rotational speed applications
Temperature range -30°C to 150°C
Suitable for high and very high speeds
Steel/Ceramic ball material
Plain race type
Low friction
Available in many designs, variants and sizes
Why choose Deep Groove Ball Bearings?
For their versatility - channelling radial and axial loads they are widely used in many industries
Cost efficient - due to low friction torque the temperature remains low therefore reduces the energy cost of running in equipment such as the conveyor belt
Low maintenance - no additional lubrication after installation
Applications:
Agricultural industry
Food processing
Machine Tools
Material handling
Medical/Pharmaceutical
Printing
Wind energy
What is the inner ring diameter?
A range between 6 mm to 40 mm
What is internal/external design?
2RS1 - Contact seal NBR on both sides 2RSH - Contact seal NBR on both sides
Z, 2Z - Shield on one or both sides
2RSL - RSL low-friction contact seal on both sides of the bearing
2RZ - RZ low-friction non-contact seal on both sides of the bearing
2ZNR - Shield on both sides, snap ring groove in the outer ring, with snap ring
NR - Snap ring groove in the outer ring, with an appropriate snap ring
E - Reinforced ball set
Cage Design
TN9 - Glass fibre reinforced polyamide 66 cages, rolling element centred
Stainless steel
Lubrication
GJN - Grease with a polyurea thickener of consistency 2 to the NLGI scale for a temperature range -30°C to +150°C (normal fill grade) VT162 - Lubricated with Klueber Isoflex Topas NB52 grease
WT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +160 °C
LHT - Grease with a lithium thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –50°C to +140 °C
HT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +150 °C (normal fill grade)
Accuracy/Clearance
C2 - Radial internal clearance smaller than normal C3 - Internal clearance greater than normal
C4 - Radial internal clearance greater than C3
C5 - Radial internal clearance greater than C4
Features:
Excellent performance in hot conditions, dry environments and low rotational speed applications
Temperature range -30°C to 150°C
Suitable for high and very high speeds
Steel/Ceramic ball material
Plain race type
Low friction
Available in many designs, variants and sizes
Why choose Deep Groove Ball Bearings?
For their versatility - channelling radial and axial loads they are widely used in many industries
Cost efficient - due to low friction torque the temperature remains low therefore reduces the energy cost of running in equipment such as the conveyor belt
Low maintenance - no additional lubrication after installation
Applications:
Agricultural industry
Food processing
Machine Tools
Material handling
Medical/Pharmaceutical
Printing
Wind energy
What is the inner ring diameter?
A range between 6 mm to 40 mm
What is internal/external design?
2RS1 - Contact seal NBR on both sides 2RSH - Contact seal NBR on both sides
Z, 2Z - Shield on one or both sides
2RSL - RSL low-friction contact seal on both sides of the bearing
2RZ - RZ low-friction non-contact seal on both sides of the bearing
2ZNR - Shield on both sides, snap ring groove in the outer ring, with snap ring
NR - Snap ring groove in the outer ring, with an appropriate snap ring
E - Reinforced ball set
Cage Design
TN9 - Glass fibre reinforced polyamide 66 cages, rolling element centred
Stainless steel
Lubrication
GJN - Grease with a polyurea thickener of consistency 2 to the NLGI scale for a temperature range -30°C to +150°C (normal fill grade) VT162 - Lubricated with Klueber Isoflex Topas NB52 grease
WT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +160 °C
LHT - Grease with a lithium thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –50°C to +140 °C
HT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +150 °C (normal fill grade)
Accuracy/Clearance
C2 - Radial internal clearance smaller than normal C3 - Internal clearance greater than normal
C4 - Radial internal clearance greater than C3
C5 - Radial internal clearance greater than C4
SKF 2 Light Series Deep Groove Ball Bearing, 25mm Inside Diameter, 52mm Outside Diameter - 6205-2RSHNR
This deep groove ball bearing is ideal for various mechanical applications, providing efficient operation and reliability. Featuring a 25mm inside diameter and a 52mm outside diameter, making it suitable for use in demanding environments. The single-row configuration supports high-load conditions while maintaining smooth operation.
Features & Benefits
• Single row deep groove design for high stability
• Sealed ball bearings protect against dirt and moisture
• Made with durable steel for long-lasting performance
• 25mm inside diameter bearing adapts to standard shafts
• 52mm outside diameter bearing optimises load distribution
• CN clearance bearings allow for minimal axial play
• Sealed ball bearings protect against dirt and moisture
• Made with durable steel for long-lasting performance
• 25mm inside diameter bearing adapts to standard shafts
• 52mm outside diameter bearing optimises load distribution
• CN clearance bearings allow for minimal axial play
Applications
• Used for electric motors in automation systems
• Suitable for automotive for drive shafts
• Ideal for conveyor systems in manufacturing environments
• Suitable for fans and pumps requiring consistent speed
• Suitable for automotive for drive shafts
• Ideal for conveyor systems in manufacturing environments
• Suitable for fans and pumps requiring consistent speed
What load ratings can this bearing handle?
The deep groove ball bearing has a static load rating of 7.8kN and a dynamic load rating of 14.8kN, ensuring it can withstand high pressures in various applications.
How does the sealing arrangement benefit the bearing?
The sealing arrangement on both sides protects the internal components from contaminants and lubrication loss, enhancing longevity and reducing maintenance.
What temperature range is suitable for operation?
This bearing operates effectively within a temperature range of -40 to +100 °C, making it versatile for different environments.
