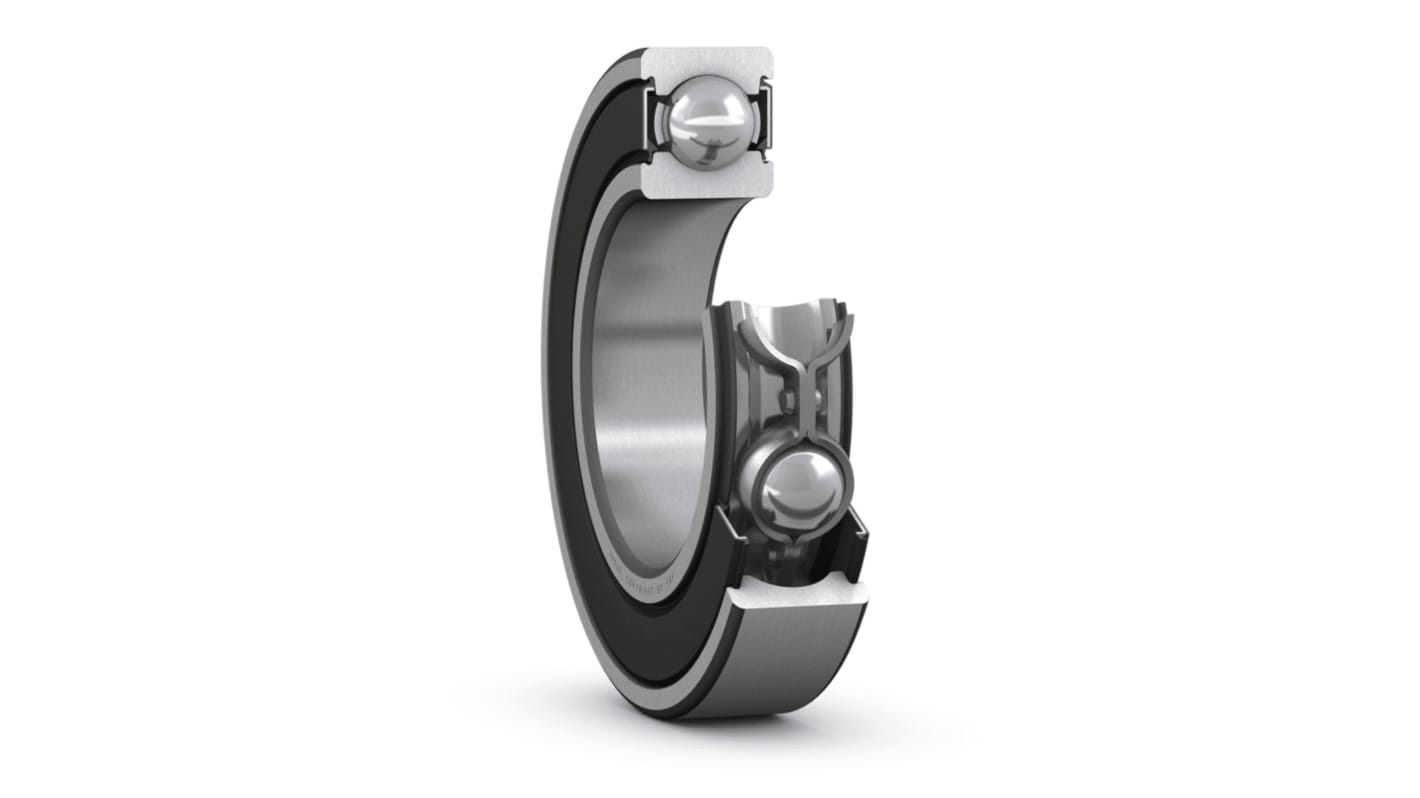

SKF 6205-2RSH/C3WT 1 Row Ball Bearing - 25 mm ID, 52 mm OD
- RS Stock No.:
- 207-6483
- Mfr. Part No.:
- 6205-2RSH/C3WT
- Brand:
- SKF
Subtotal (1 unit)*
£23.51
(exc. VAT)
£28.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.51 |
*price indicative
- RS Stock No.:
- 207-6483
- Mfr. Part No.:
- 6205-2RSH/C3WT
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 25 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 52 mm | |
| Race Width | 15mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 7.8kN | |
| Dynamic Load Rating | 14.8kN | |
| Bore Type | Parallel | |
| Series | 6205-2RSH | |
| Standards/Approvals | No | |
| Limiting Speed | 8500rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 25 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 52 mm | ||
Race Width 15mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 14.8kN | ||
Bore Type Parallel | ||
Series 6205-2RSH | ||
Standards/Approvals No | ||
Limiting Speed 8500rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- BG
The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from skf in many designs, variants and sizes. It has 25 mm ID and 52 mm OD.
Bearing is of bearing steel
Cylindrical bore type
