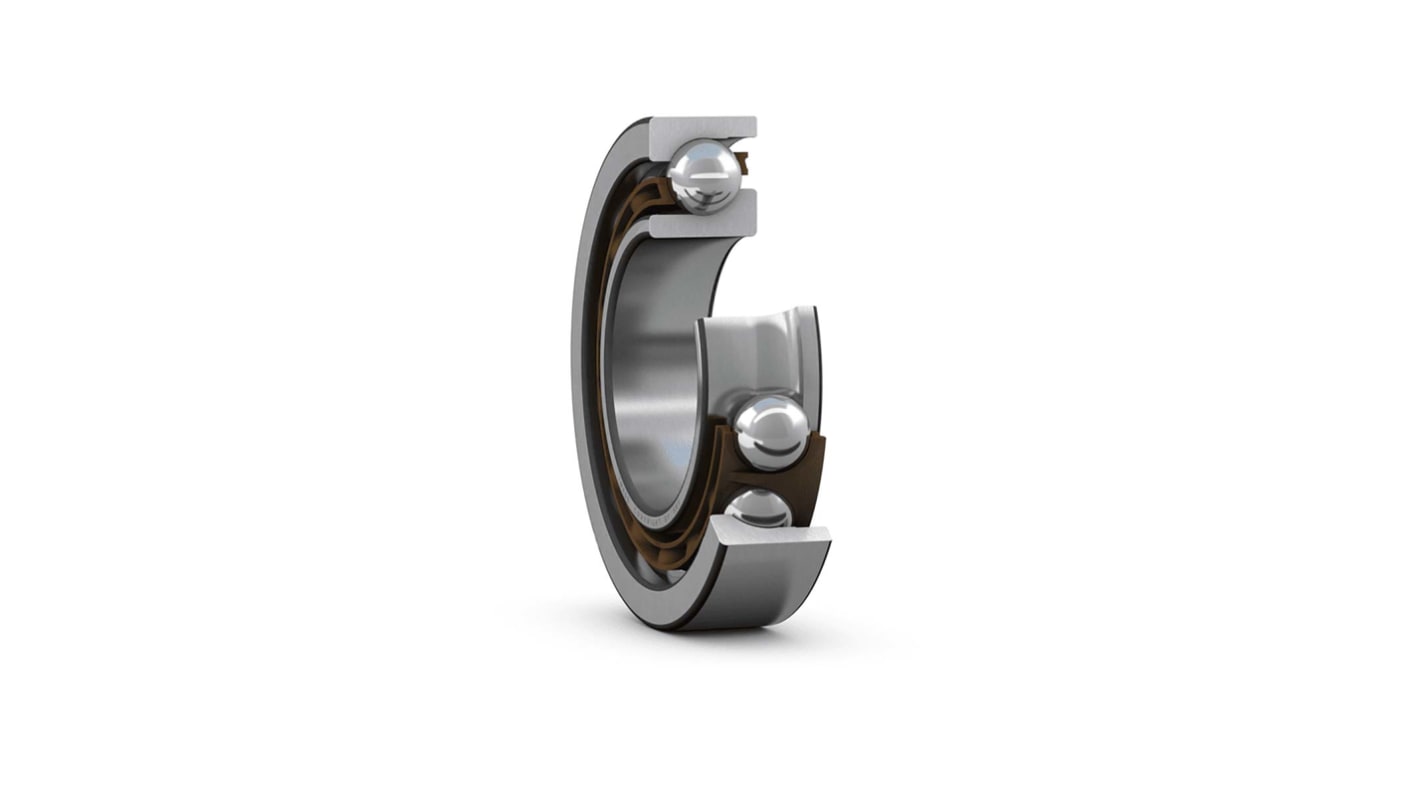

SKF 7221 BECBP Single Row Angular Contact Ball Bearing- Open Type 105mm I.D, 190mm O.D
- RS Stock No.:
- 207-5496
- Mfr. Part No.:
- 7221 BECBP
- Brand:
- SKF
Subtotal (1 unit)*
£531.23
(exc. VAT)
£637.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £531.23 |
*price indicative
- RS Stock No.:
- 207-5496
- Mfr. Part No.:
- 7221 BECBP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 105mm | |
Outside Diameter | 190mm | |
Race Width | 36mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 150kN | |
Dynamic Load Rating | 156kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 7221 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 105mm | ||
Outside Diameter 190mm | ||
Race Width 36mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 150kN | ||
Dynamic Load Rating 156kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 7221 | ||
- COO (Country of Origin):
- DE
The SKF Angular contact ball bearing has 105mm inner bore and 190mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This bearing is designed to accommodate combined loads, i.e. Simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Single row
Cylindrical type bore
Steel bearing
Nominal contact angle 40 deg
Cylindrical type bore
Steel bearing
Nominal contact angle 40 deg
