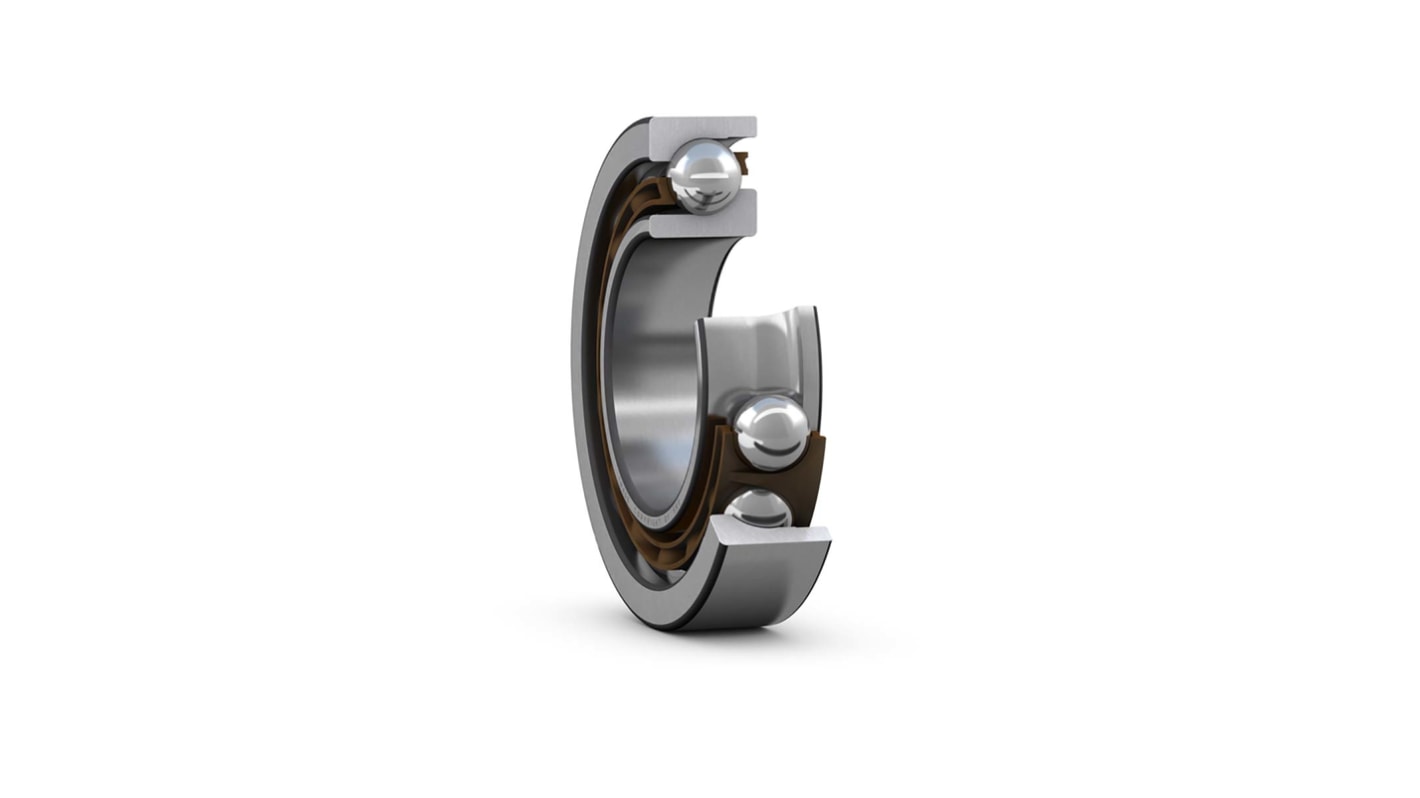

SKF 7012 CDGA/P4A 1 Row Ball Bearing - 60 mm ID, 95 mm OD 18 mm Race Width
- RS Stock No.:
- 207-5428
- Mfr. Part No.:
- 7012 CDGA/P4A
- Brand:
- SKF
Subtotal (1 unit)*
£392.06
(exc. VAT)
£470.47
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £392.06 |
*price indicative
- RS Stock No.:
- 207-5428
- Mfr. Part No.:
- 7012 CDGA/P4A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 60mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 95mm | |
| Race Width | 18mm | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Contact Angle | 15° | |
| Static Load Rating | 34.5kN | |
| Dynamic Load Rating | 40.3kN | |
| Series | 7012 | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 22000rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 60mm | ||
Product Type Ball Bearing | ||
Outside Diameter 95mm | ||
Race Width 18mm | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Contact Angle 15° | ||
Static Load Rating 34.5kN | ||
Dynamic Load Rating 40.3kN | ||
Series 7012 | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 22000rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
SKF 7012 Series Angular Contact Ball Bearing, 60mm Bore Diameter, 95mm Outside Diameter - 7012 CDGA/P4A
This angular contact ball bearing provides axial and radial load handling for precision rotating assemblies in automation and electromechanical systems. Designed as a single-row unit with an open-end configuration, it suits applications requiring accurate rotational alignment and consistent contact geometry at moderate contact angles. The product is intended for use where compact, high-speed performance and defined internal clearance are required.
Features and Benefits:
• 15° contact angle for combined axial and radial load support
• Steel balls for Durable rolling contact and wear resistance
• Limiting speed 22,000 r/min for high-speed operational demands
• Internal clearance CN to maintain predictable preload and stiffness
• Dynamic load capacity 40.3 kN for sustained operational loads
• Static load capacity 34.5 kN to withstand stationary loads
• Steel balls for Durable rolling contact and wear resistance
• Limiting speed 22,000 r/min for high-speed operational demands
• Internal clearance CN to maintain predictable preload and stiffness
• Dynamic load capacity 40.3 kN for sustained operational loads
• Static load capacity 34.5 kN to withstand stationary loads
Applications
• Suitable for high-speed spindle systems in automation equipment
• Ideal for precision motor shafts in electrical drives
• Used with servo gearboxes requiring axial load accommodation
• Can be used for rotary encoders and indexing mechanisms
• Used for Compact gearboxes in robotics and motion control
• Ideal for precision motor shafts in electrical drives
• Used with servo gearboxes requiring axial load accommodation
• Can be used for rotary encoders and indexing mechanisms
• Used for Compact gearboxes in robotics and motion control
What shaft Interface does it require for installation?
The bore is manufactured with a parallel internal profile for slip-fit mounting onto cylindrical shafts.
How does the open-end design affect maintenance?
With exposed rings and rolling elements, Visual inspection and lubrication access are simplified compared with sealed variants.
What element material is used for rolling contact?
The bearing utilises steel balls to provide consistent contact behaviour and long service under dynamic cycling.
How many rows of rolling elements are provided?
The bearing is configured as a single row to allow axial load transmission in one direction while retaining compactness.
