NSK 606DD+6 1 Row Deep Groove Ball Bearing - 6 mm ID, 17 mm OD
- RS Stock No.:
- 644-231
- Mfr. Part No.:
- 606DD+6
- Brand:
- NSK
Subtotal (1 unit)*
£7.44
(exc. VAT)
£8.93
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 26 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.44 |
*price indicative
- RS Stock No.:
- 644-231
- Mfr. Part No.:
- 606DD+6
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 6mm | |
| Outside Diameter | 17mm | |
| Race Width | 6mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 835N | |
| Dynamic Load Rating | 2490N | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 34000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 6mm | ||
Outside Diameter 17mm | ||
Race Width 6mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 835N | ||
Dynamic Load Rating 2490N | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 34000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
Non Compliant
- COO (Country of Origin):
- JP

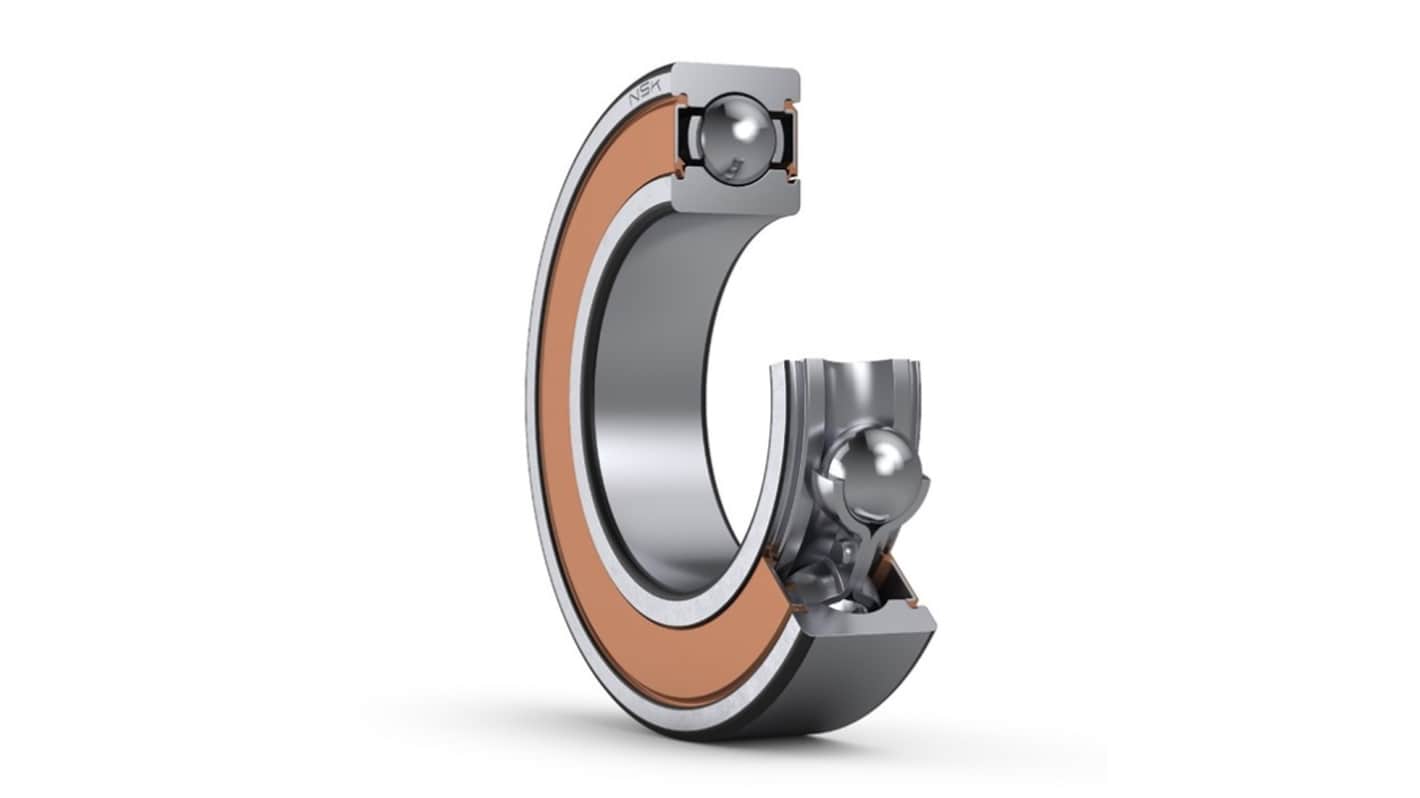

The NSK Extra small, single-row deep groove ball bearing designed for applications requiring compact size and high-speed performance. With a bore diameter of 6 mm, an outer diameter of 17 mm, and a width of 6 mm, it is suitable for precision machinery and instruments where space is limited. The bearing is sealed on both sides with rubber seals (DD), providing protection against contaminants and retaining lubrication.
Durable construction
Excellent wear resistance due to the high quality materials
Compact design providing optimal space usage with minimal weight
