NSK 607DD 1 Row Deep Groove Ball Bearing - 7 mm ID, 19 mm OD
- RS Stock No.:
- 643-778
- Mfr. Part No.:
- 607DD
- Brand:
- NSK
Subtotal (1 unit)*
£3.49
(exc. VAT)
£4.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.49 |
*price indicative
- RS Stock No.:
- 643-778
- Mfr. Part No.:
- 607DD
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Inside Diameter | 7mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 19mm | |
| Race Width | 6mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 885N | |
| Dynamic Load Rating | 2570N | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 32000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Inside Diameter 7mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 19mm | ||
Race Width 6mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 885N | ||
Dynamic Load Rating 2570N | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 32000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
Non Compliant

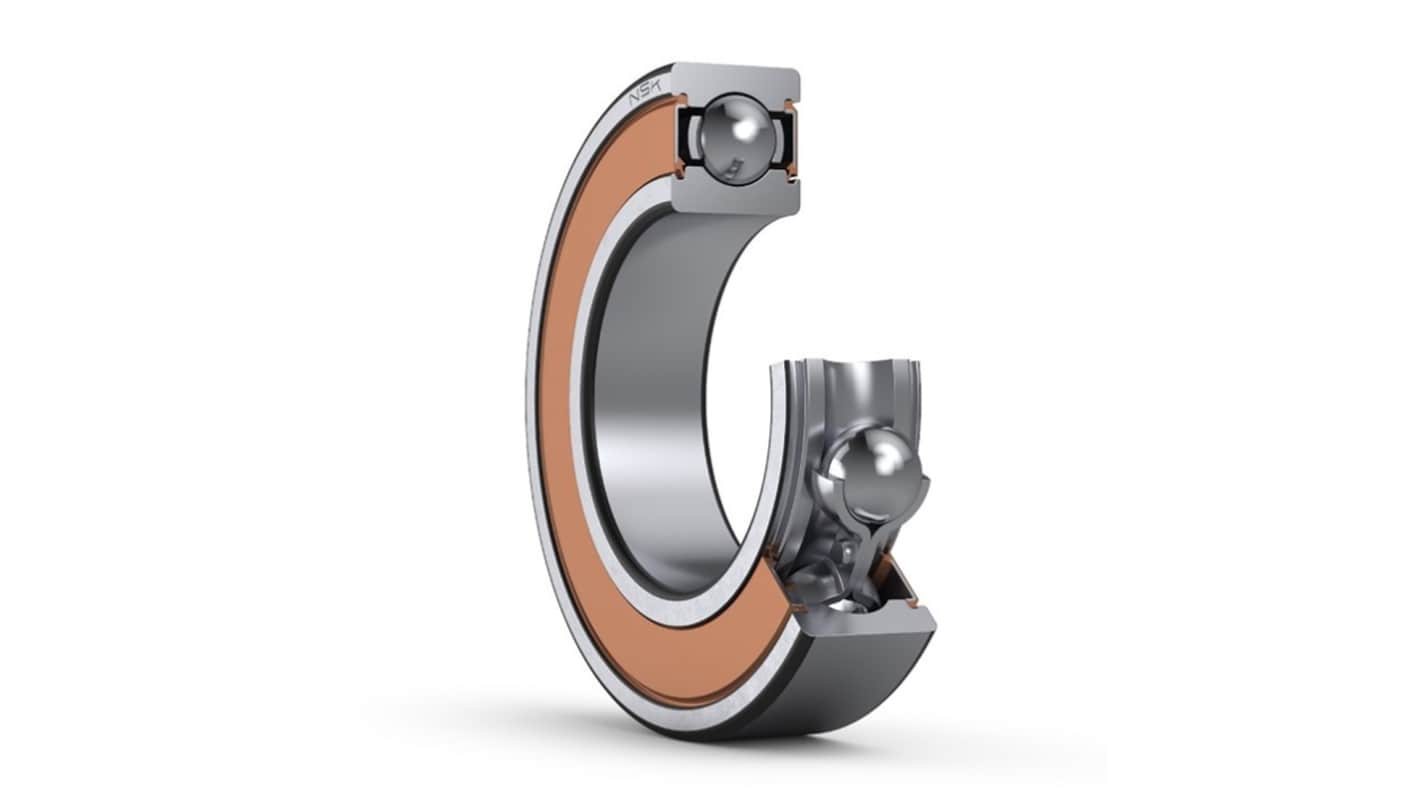

The NSK Extra small ball bearing designed for compact and precision applications. It features a 7 mm bore diameter, 19 mm outer diameter, and 6 mm width, making it ideal for miniature assemblies. The bearing includes 6 balls with a diameter of 3.5 mm and offers a basic dynamic load rating of 2,570 N and a static load rating of 885 N. It supports high-speed operation with grease lubrication up to 32,000 rpm and is built for reliable performance in tight spaces.
Robust and compact construction for space efficient installation
High quality bearing steel ensures excellent durability
Lightweight design
