NSK 6013ZZ 1 Row Deep Groove Ball Bearing - 65 mm ID, 100 mm OD
- RS Stock No.:
- 643-775
- Mfr. Part No.:
- 6013ZZ
- Brand:
- NSK
Subtotal (1 unit)*
£36.34
(exc. VAT)
£43.61
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.34 |
*price indicative
- RS Stock No.:
- 643-775
- Mfr. Part No.:
- 6013ZZ
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 65mm | |
| Outside Diameter | 100mm | |
| Race Width | 18mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 25200N | |
| Dynamic Load Rating | 33500N | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 7500rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 65mm | ||
Outside Diameter 100mm | ||
Race Width 18mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 25200N | ||
Dynamic Load Rating 33500N | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 7500rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
Non Compliant

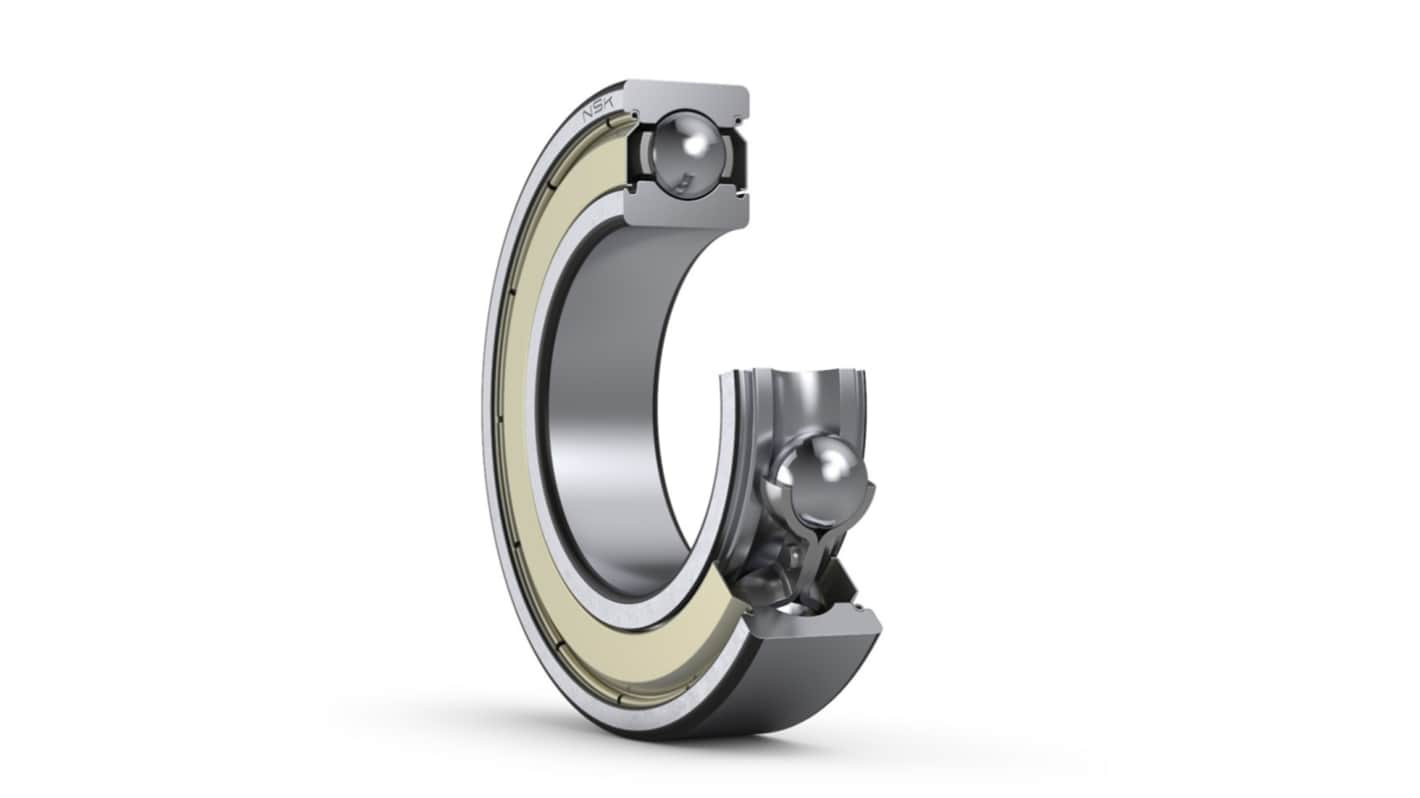

The NSK Single-row deep groove ball bearing is ideal for applications requiring high reliability and minimal maintenance. It has a 65 mm bore diameter, 100 mm outer diameter, and 18 mm width, making it suitable for a variety of mechanical assemblies. The bearing is shielded with metal shields (ZZ) to prevent the ingress of dust and debris while retaining lubrication for optimal performance. With a basic dynamic load rating of 33,500 N and a static load rating of 25,200 N, it performs reliably under both dynamic and static loads.
Durable construction
Excellent wear resistance due to the high quality materials
Compact design providing optimal space usage with minimal weight
