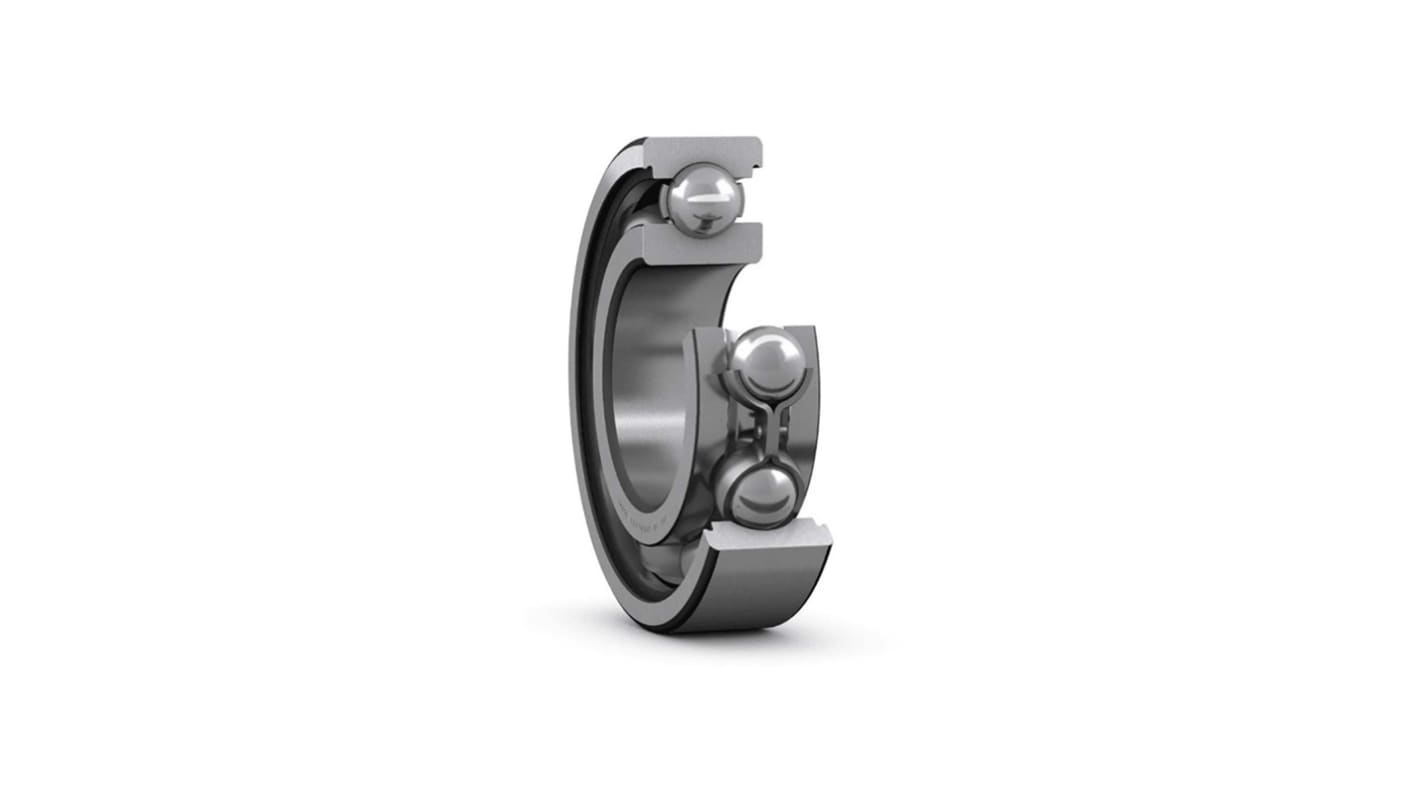

SKF 16013 Single Row Deep Groove Ball Bearing- Open Type 65mm I.D, 100mm O.D
- RS Stock No.:
- 209-1843
- Mfr. Part No.:
- 16013
- Brand:
- SKF
Subtotal (1 unit)*
£52.98
(exc. VAT)
£63.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £52.98 |
*price indicative
- RS Stock No.:
- 209-1843
- Mfr. Part No.:
- 16013
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 65mm | |
Outside Diameter | 100mm | |
Race Width | 11mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 19.6kN | |
Dynamic Load Rating | 22.5kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 16013 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 65mm | ||
Outside Diameter 100mm | ||
Race Width 11mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 19.6kN | ||
Dynamic Load Rating 22.5kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 16013 | ||
- COO (Country of Origin):
- FR
The SKF deep groove ball bearing having bore diameter 65mm and outside diameter 100mm. It is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. The deep groove ball bearings are the most widely used bearing type.
Cylindrical type bore
Steel bearing
Steel bearing
