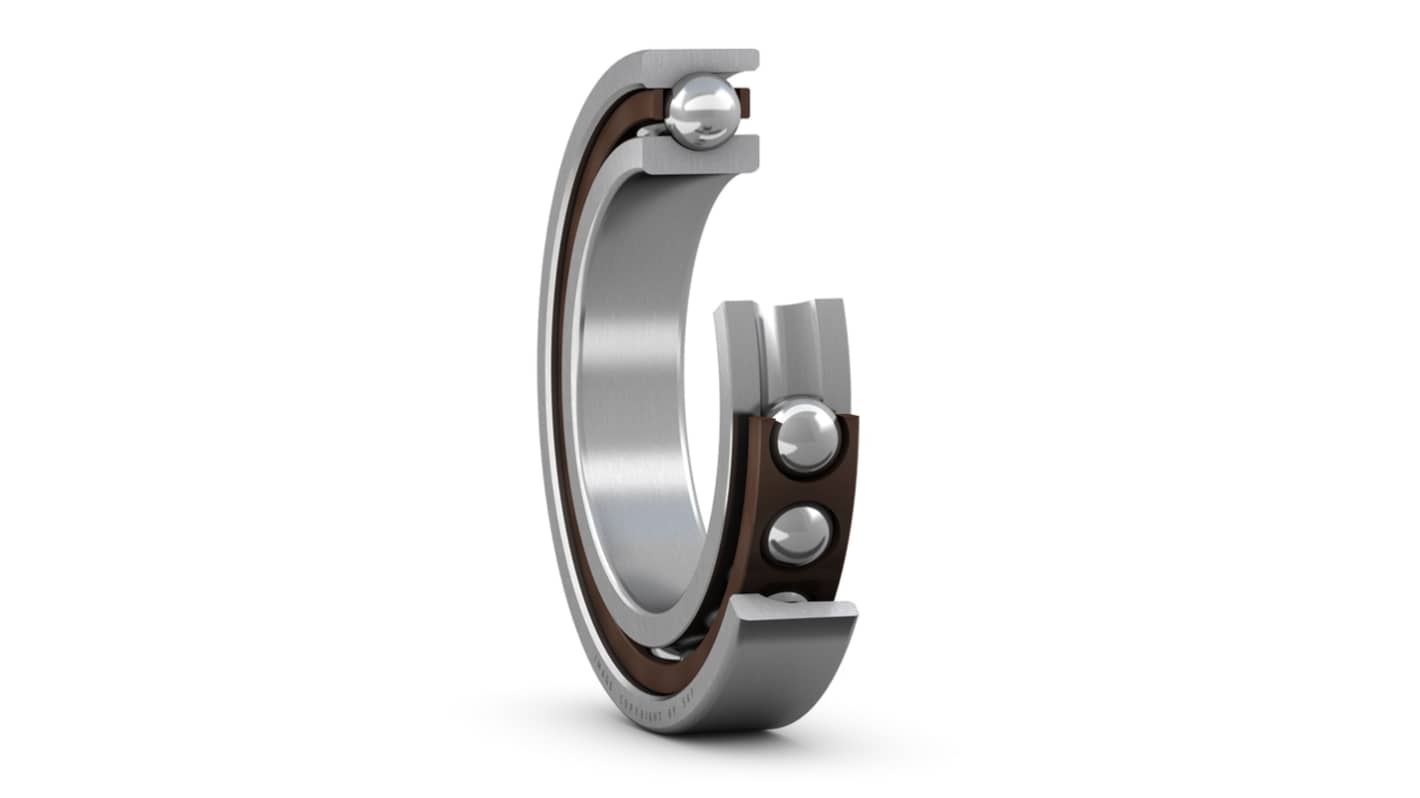

SKF 7322 BEM 1 Row Angular Contact Ball Bearing - 110 mm ID, 240 mm OD 50 mm Race Width
- RS Stock No.:
- 462-028
- Mfr. Part No.:
- 7322 BEM
- Brand:
- SKF
Subtotal (1 unit)*
£1,647.13
(exc. VAT)
£1,976.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,647.13 |
*price indicative
- RS Stock No.:
- 462-028
- Mfr. Part No.:
- 7322 BEM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 110 mm | |
| Outside Diameter | 240 mm | |
| Race Width | 50mm | |
| Ball Material | Bearing Steel | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Static Load Rating | 224kN | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 225kN | |
| Standards/Approvals | No | |
| Series | 7322 | |
| Limiting Speed | 4000rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 110 mm | ||
Outside Diameter 240 mm | ||
Race Width 50mm | ||
Ball Material Bearing Steel | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Static Load Rating 224kN | ||
Contact Angle 40° | ||
Dynamic Load Rating 225kN | ||
Standards/Approvals No | ||
Series 7322 | ||
Limiting Speed 4000rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
- COO (Country of Origin):
- AT
Akshay
The SKF Single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads
