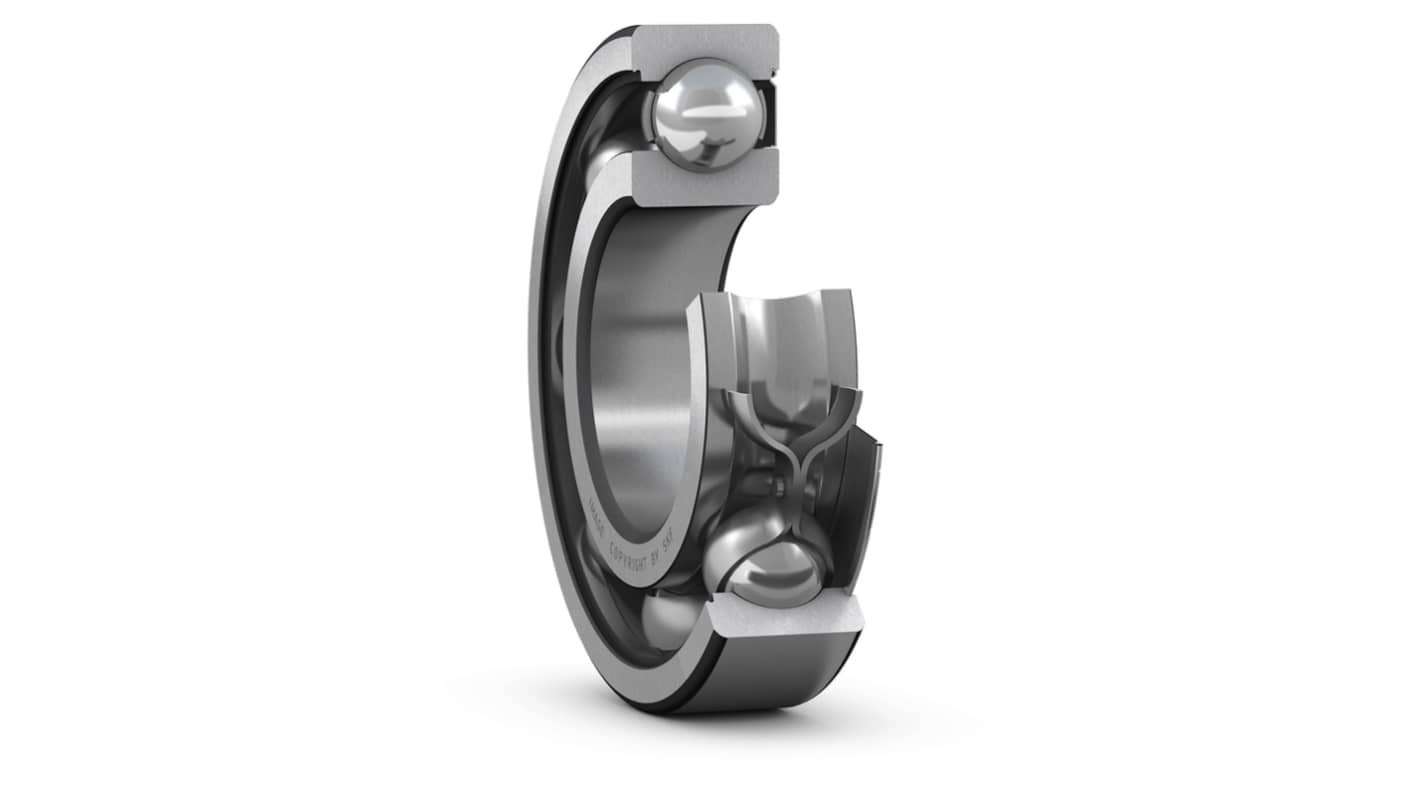

SKF 61956 MA 1 Row Deep Groove Ball Bearing - 280 mm ID, 380 mm OD
- RS Stock No.:
- 461-260
- Mfr. Part No.:
- 61956 MA
- Brand:
- SKF
Subtotal (1 unit)*
£2,525.33
(exc. VAT)
£3,030.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,525.33 |
*price indicative
- RS Stock No.:
- 461-260
- Mfr. Part No.:
- 61956 MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 280 mm | |
| Outside Diameter | 380 mm | |
| Race Width | 46mm | |
| Ball Material | Bearing Steel | |
| Cage Material | Machined Metal | |
| Race Material | Bearing Steel | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 285kN | |
| Dynamic Load Rating | 216kN | |
| Series | 61956 MA | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Limiting Speed | 2800rpm | |
| Bearing Type | Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 280 mm | ||
Outside Diameter 380 mm | ||
Race Width 46mm | ||
Ball Material Bearing Steel | ||
Cage Material Machined Metal | ||
Race Material Bearing Steel | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 285kN | ||
Dynamic Load Rating 216kN | ||
Series 61956 MA | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Limiting Speed 2800rpm | ||
Bearing Type Deep Groove Ball | ||
- COO (Country of Origin):
- FR
Gavin
The SKF Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Low friction
High speed capability
Accommodate radial and axial loads in both directions
