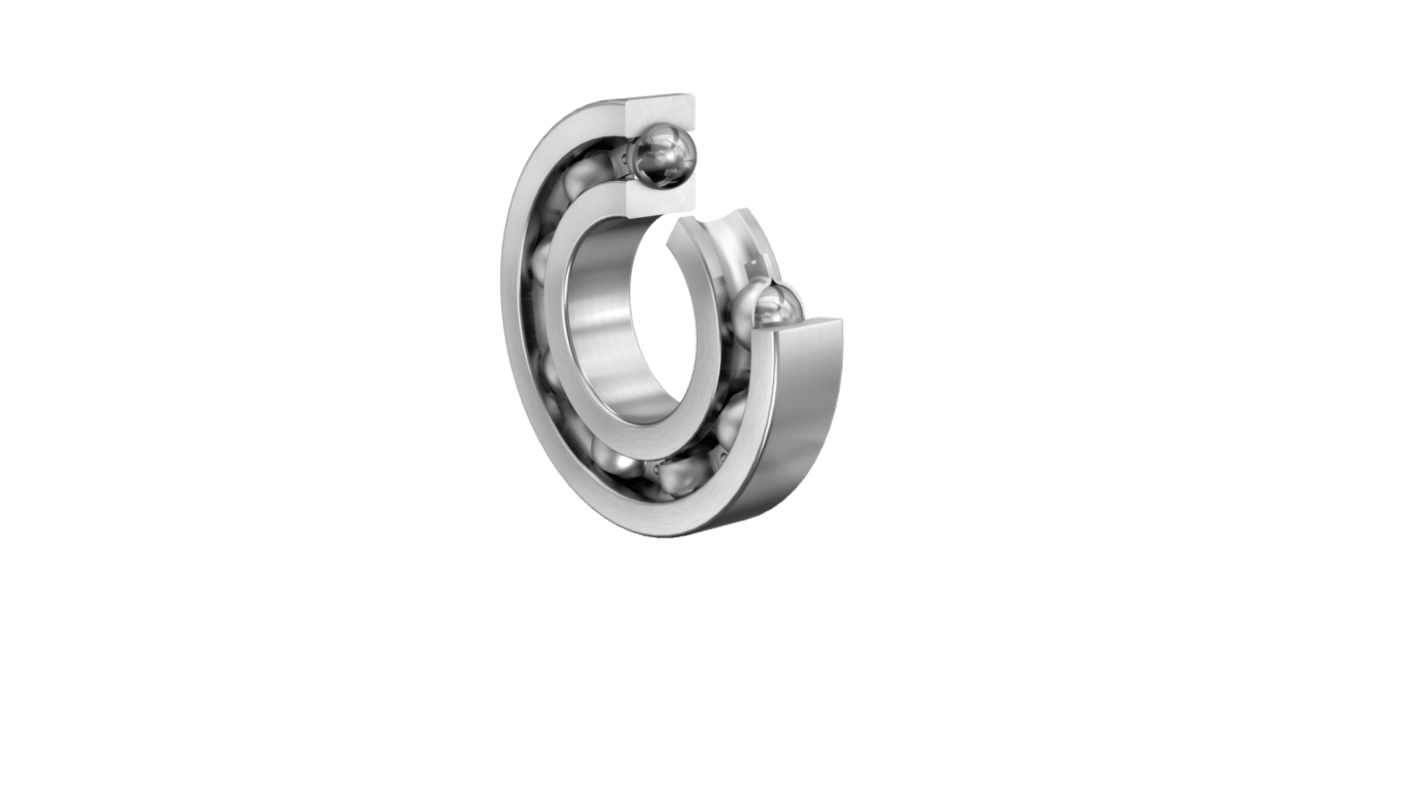

FAG 6224-C3 1 Row Deep Groove Ball Bearing - 120 mm ID, 215 mm OD
- RS Stock No.:
- 310-948
- Mfr. Part No.:
- 6224-C3
- Brand:
- FAG
Subtotal (1 unit)*
£339.48
(exc. VAT)
£407.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £339.48 |
*price indicative
- RS Stock No.:
- 310-948
- Mfr. Part No.:
- 6224-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 120mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 215mm | |
| Race Width | 40mm | |
| Cage Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 123000N | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 154000N | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Limiting Speed | 4200rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 120mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 215mm | ||
Race Width 40mm | ||
Cage Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 123000N | ||
Internal Clearance C3 | ||
Dynamic Load Rating 154000N | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Limiting Speed 4200rpm | ||
Bearing Type Deep Groove | ||
The FAG Deep Groove Ball Bearing is designed for exceptional performance, is perfect for a variety of applications requiring reliability and precision. With a robust design that withstands high loads, it features a steel sheet metal cage for enhanced durability. Ideal for demanding conditions, it operates efficiently across a broad temperature range, ensuring longevity and consistent functionality.
Optimised for a long operational life in various environments
Equipped with a normal tolerance class to meet standard requirements
Lightweight construction allows for ease of handling during installation
Effective in high speed applications with a respectable limiting speed
Not sealed allowing for versatile lubrication options suitable for different substances
Manufactured with dimensional stability for consistent performance under heat
