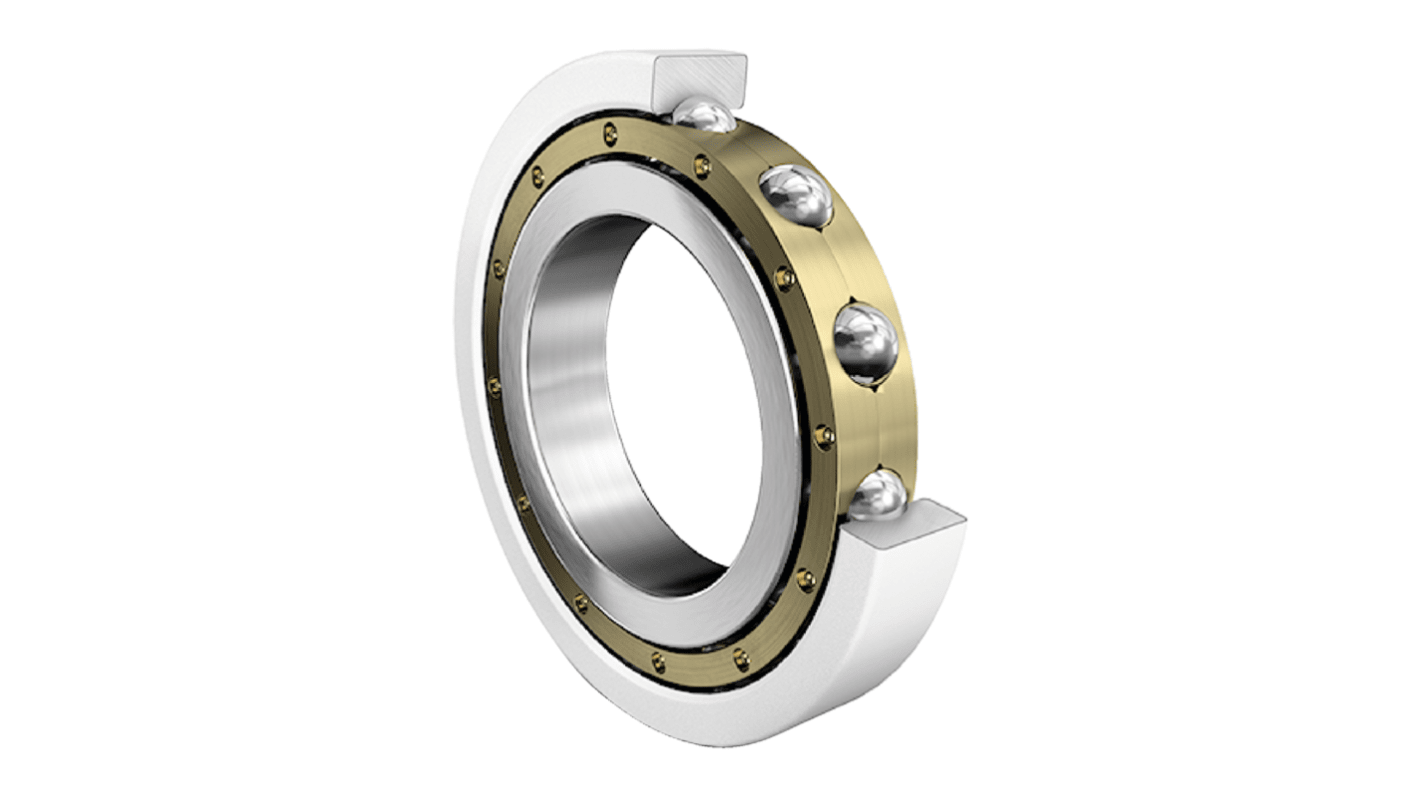

FAG 6222-M-J20AA-C4 1 Row Deep Groove Ball Bearing - 110 mm ID, 200 mm OD
- RS Stock No.:
- 310-807
- Mfr. Part No.:
- 6222-M-J20AA-C4
- Brand:
- FAG
Subtotal (1 unit)*
£1,322.79
(exc. VAT)
£1,587.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,322.79 |
*price indicative
- RS Stock No.:
- 310-807
- Mfr. Part No.:
- 6222-M-J20AA-C4
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 110 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 200 mm | |
| Race Width | 38mm | |
| Cage Material | Brass | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 117000N | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 153000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 5800rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 110 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 200 mm | ||
Race Width 38mm | ||
Cage Material Brass | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 117000N | ||
Internal Clearance C4 | ||
Dynamic Load Rating 153000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 5800rpm | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is a precision engineered solution crafted for robust performance in various industrial applications. Designed with a solid brass cage and a unique ceramic coating, this bearing offers superior protection against wear and tear, ensuring longevity in demanding environments. Its advanced features include radial internal clearance tailored for high load applications and a dynamic load rating suitable for optimised speed and efficiency.
Designed for high radial internal clearance supporting greater loads
Capable of operating at high speeds which ensuring efficient functionality
Wide temperature range accommodates various industrial conditions
Current insulation feature minimises electrical discharge damage
Not sealed design allows for easy maintenance and lubrication
