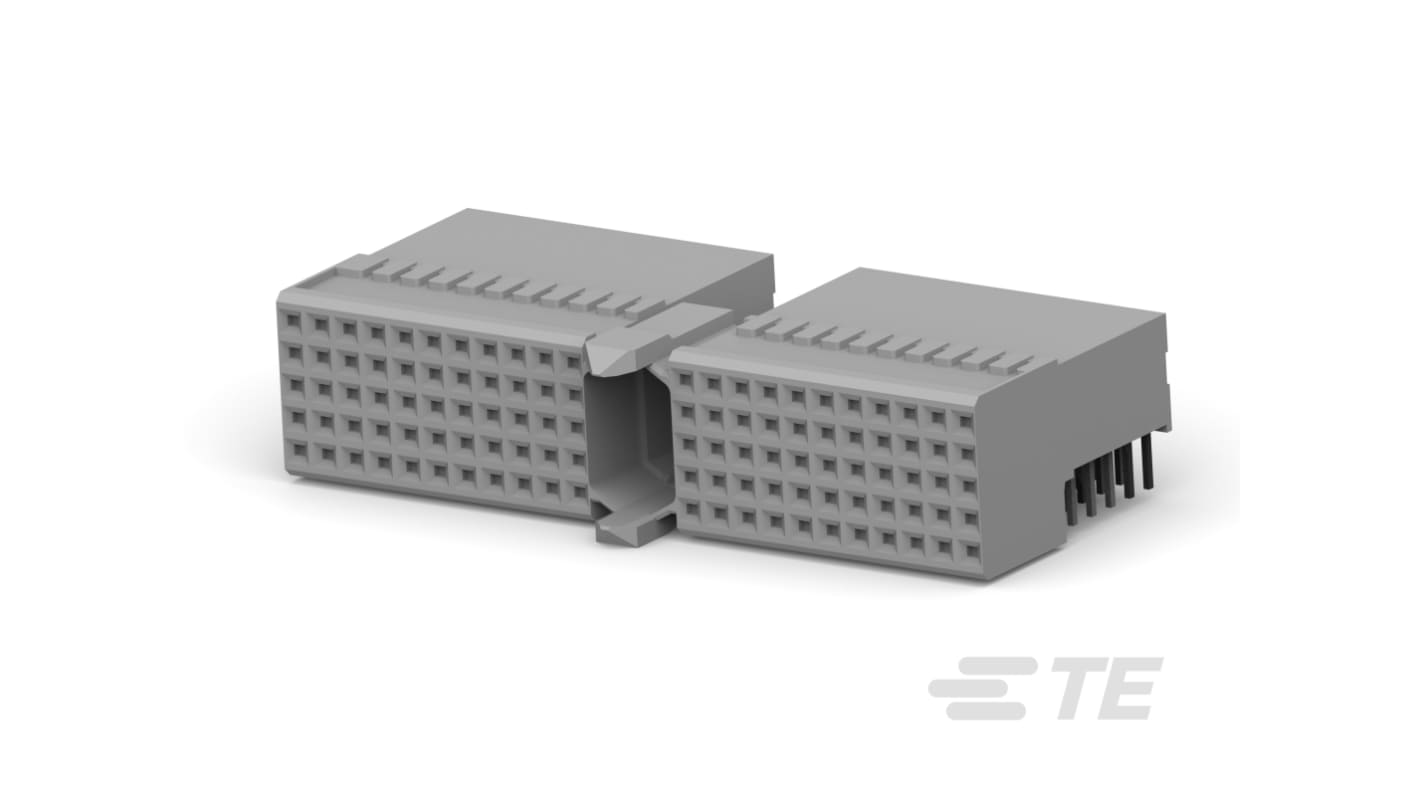

TE Connectivity, Z-PACK 2 mm Pitch Hard Metric Backplane Connector, Right Angle Male/Female, 22 Column, 5 Row, 110 Way
- RS Stock No.:
- 501-385
- Mfr. Part No.:
- 1857989-1
- Brand:
- TE Connectivity
Subtotal (1 tube of 11 units)*
£145.25
(exc. VAT)
£174.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £145.25 | £13.205 |
*price indicative
- RS Stock No.:
- 501-385
- Mfr. Part No.:
- 1857989-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Backplane Connector | |
| Backplane Connector Type | Hard Metric | |
| Number of Contacts | 110 | |
| Current | 1.5A | |
| Orientation | Right Angle | |
| Number of Columns | 22 | |
| Number of Rows | 5 | |
| Connector Gender | Male/Female | |
| Housing Material | Glass Filled Polyester | |
| Pitch | 2mm | |
| Contact Material | Phosphor Bronze | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male/Female | |
| Standards/Approvals | EU ELV, RoHS, UL 94V0 | |
| Series | Z-PACK | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Backplane Connector | ||
Backplane Connector Type Hard Metric | ||
Number of Contacts 110 | ||
Current 1.5A | ||
Orientation Right Angle | ||
Number of Columns 22 | ||
Number of Rows 5 | ||
Connector Gender Male/Female | ||
Housing Material Glass Filled Polyester | ||
Pitch 2mm | ||
Contact Material Phosphor Bronze | ||
Mount Type Board | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male/Female | ||
Standards/Approvals EU ELV, RoHS, UL 94V0 | ||
Series Z-PACK | ||
- COO (Country of Origin):
- CN
The TE Connectivity hard metric backplane PCB mount receptacle is an advanced solution tailored for high-speed signal transmission at rates of up to 1 Gb/s. Designed with a robust configuration of 22 columns and 5 rows, this receptacle offers a traditional backplane architecture, supporting 110 positions with a densely packed yet reliable layout. Crafted from glass-filled polyester, it ensures excellent durability while operating within a wide temperature range of -55 to 125 °C. This receptacle is ideal for applications where space efficiency and signal integrity are paramount, embodying the innovation and reliability that customers expect from leading component technologies.
Excellent mechanical attachment suited for board mount applications
Features contact plating of gold for enhanced connectivity
Utilises nickel underplating for optimal electrical performance
Designed to support board-to-board connectivity with precision
Engineered for a reliable fit with a 2 mm centreline pitch
Available in a grey hue, ensuring easy identification within complex assemblies
Complies with stringent industry standards including UL 94V-0 for safety
Packed in convenient tube packaging for straightforward handling
