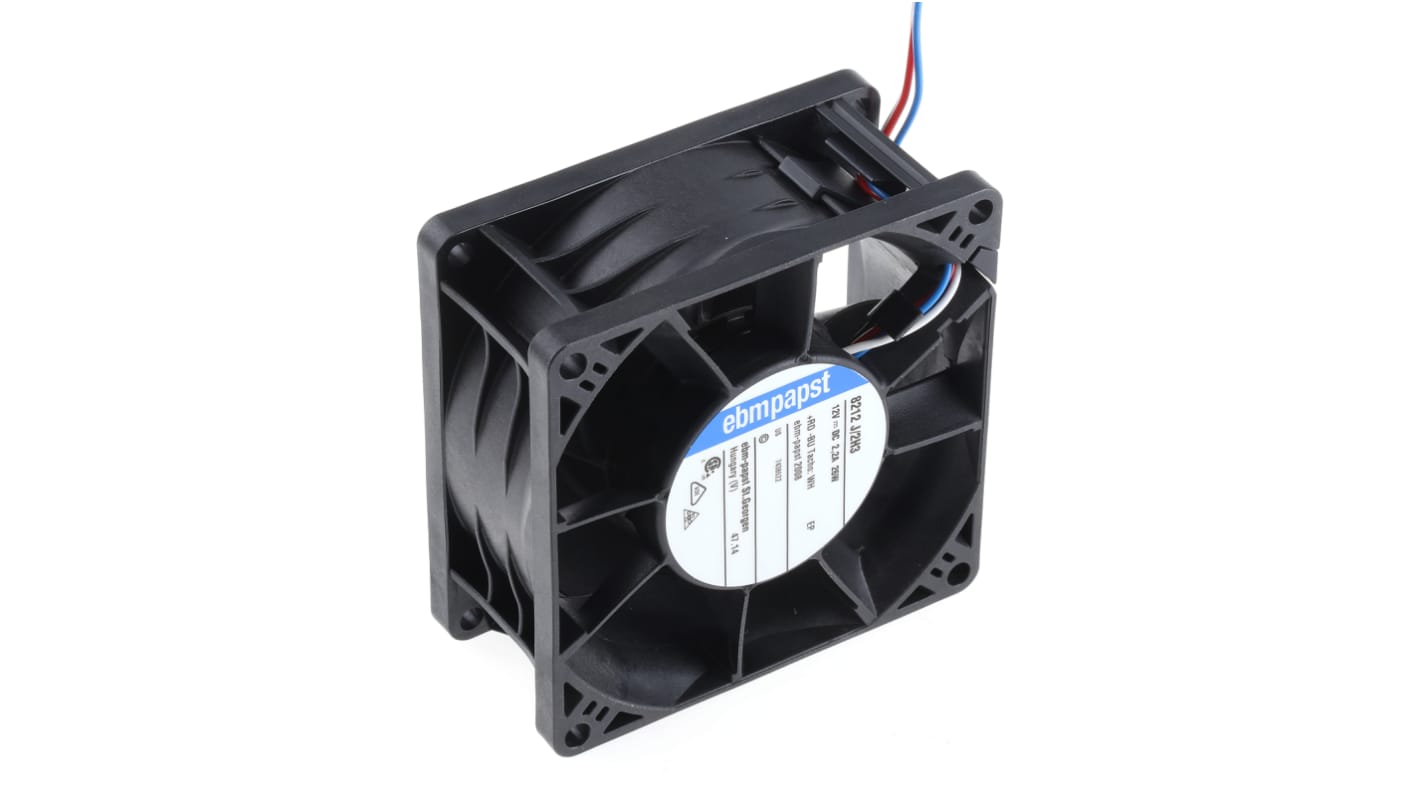

ebm-papst 8200 J Series Axial Fan, 12V dc, 190 m³/h, 26 W, 2.16 A Max, IP20 80 mm 80mm 38 mm
- RS Stock No.:
- 757-8601
- Mfr. Part No.:
- 8212J/2H3-RS0
- Brand:
- ebm-papst
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 757-8601
- Mfr. Part No.:
- 8212J/2H3-RS0
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 26W | |
| Maximum Current | 2.16A | |
| Air Flow | 190m³/h | |
| Noise Level | 66dB | |
| Fan Speed | 12000rpm | |
| Direction of Curve | Forward | |
| External Depth | 38mm | |
| Terminal Type | Connector | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Fan Frame Size | 80 mm | |
| Height | 80mm | |
| Depth | 38mm | |
| Width | 80mm | |
| Series | 8200 J | |
| Standards/Approvals | CSA, VDE, UL, CE | |
| IP Rating | IP20 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 26W | ||
Maximum Current 2.16A | ||
Air Flow 190m³/h | ||
Noise Level 66dB | ||
Fan Speed 12000rpm | ||
Direction of Curve Forward | ||
External Depth 38mm | ||
Terminal Type Connector | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Fan Frame Size 80 mm | ||
Height 80mm | ||
Depth 38mm | ||
Width 80mm | ||
Series 8200 J | ||
Standards/Approvals CSA, VDE, UL, CE | ||
IP Rating IP20 | ||
- COO (Country of Origin):
- HU
ebm-papst PC Cooling Fans
The ebm-papst high performance compact axial fan range has been adapted for use as casing-mounted fans in personal computers. Used to cool the computer casing, they prevent component instability and extend the life of your PC.
• Provided with a 3-pin molex connector
• Includes sensor signal for monitoring speed
• Aerodynamic characteristics for reduced noise
• Long service life
