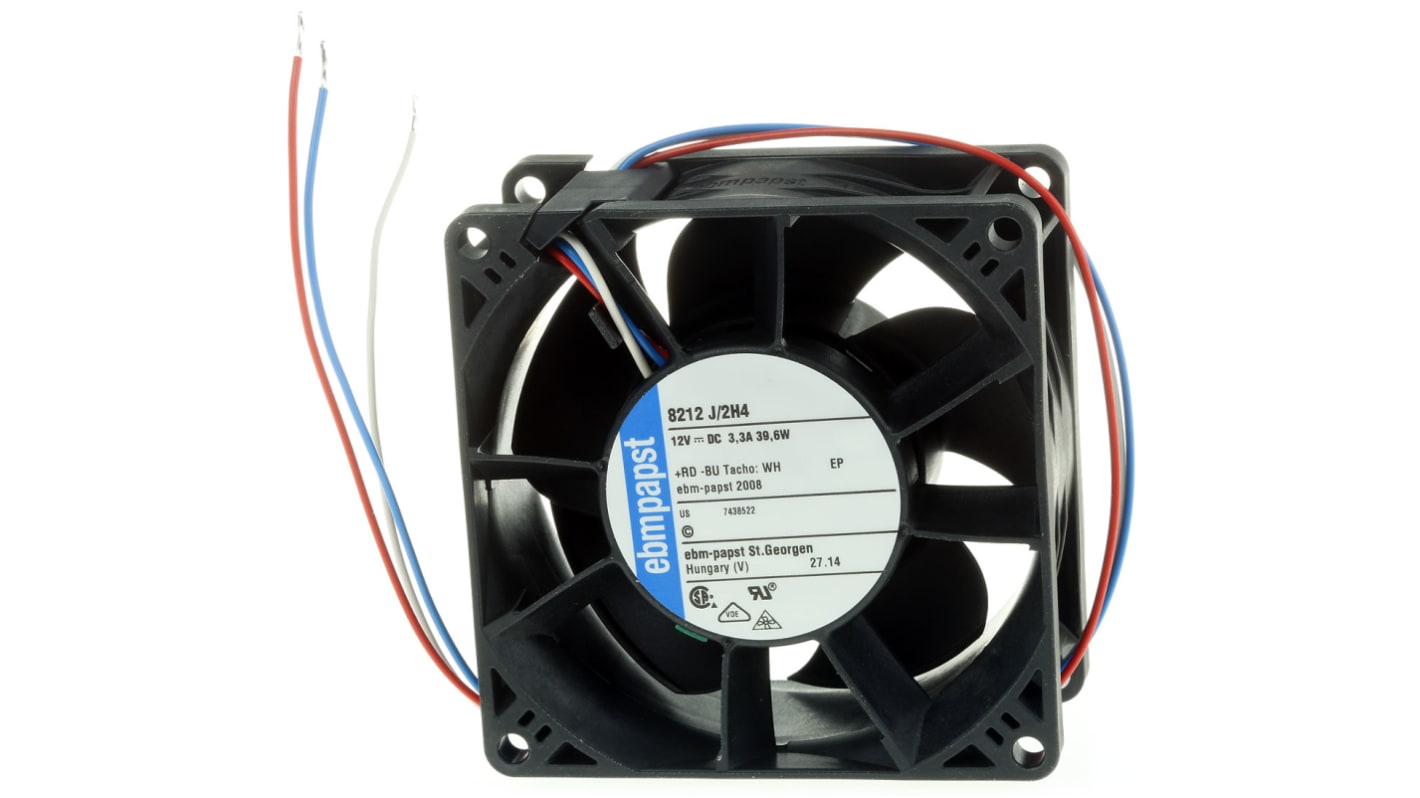

ebm-papst 8200 J Series Axial Fan, 12V dc, 222 m³/h, 39 W, IP68 80 mm 80mm 38 mm
- RS Stock No.:
- 557-789
- Mfr. Part No.:
- 8212J/2H4
- Brand:
- ebm-papst
Subtotal (1 unit)*
£73.59
(exc. VAT)
£88.31
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 6 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £73.59 |
*price indicative
- RS Stock No.:
- 557-789
- Mfr. Part No.:
- 8212J/2H4
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 39W | |
| Air Flow | 222m³/h | |
| Noise Level | 71dB | |
| Fan Speed | 14000rpm | |
| Direction of Curve | Forward | |
| External Depth | 38mm | |
| Bearing Type | Ball | |
| Fan Frame Type | Rectangular | |
| Fan Frame Size | 80 mm | |
| Series | 8200 J | |
| Width | 80mm | |
| Height | 80mm | |
| Depth | 38mm | |
| Standards/Approvals | CE, EAC, UL, VDE | |
| IP Rating | IP68 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 39W | ||
Air Flow 222m³/h | ||
Noise Level 71dB | ||
Fan Speed 14000rpm | ||
Direction of Curve Forward | ||
External Depth 38mm | ||
Bearing Type Ball | ||
Fan Frame Type Rectangular | ||
Fan Frame Size 80 mm | ||
Series 8200 J | ||
Width 80mm | ||
Height 80mm | ||
Depth 38mm | ||
Standards/Approvals CE, EAC, UL, VDE | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- DE
S-Force High Performance Compact Fans
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications. This fan series is particularly suitable for the cooling of high-performance electronic components, such as those in servers, TCA systems, telecommunication devices, inverter drives and many other industrial applications.
• Performance from 600m³/h to a maximum of 930m³/h, depending on model
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
Note
Manufacturer part number suffix 'P' indicates PWM controllable
DCP fan controllers are available separately: stock nos 6670377, 6670371, 6670380, 6670383, 6670387, 6670396
DCP fan controllers are available separately: stock nos 6670377, 6670371, 6670380, 6670383, 6670387, 6670396
