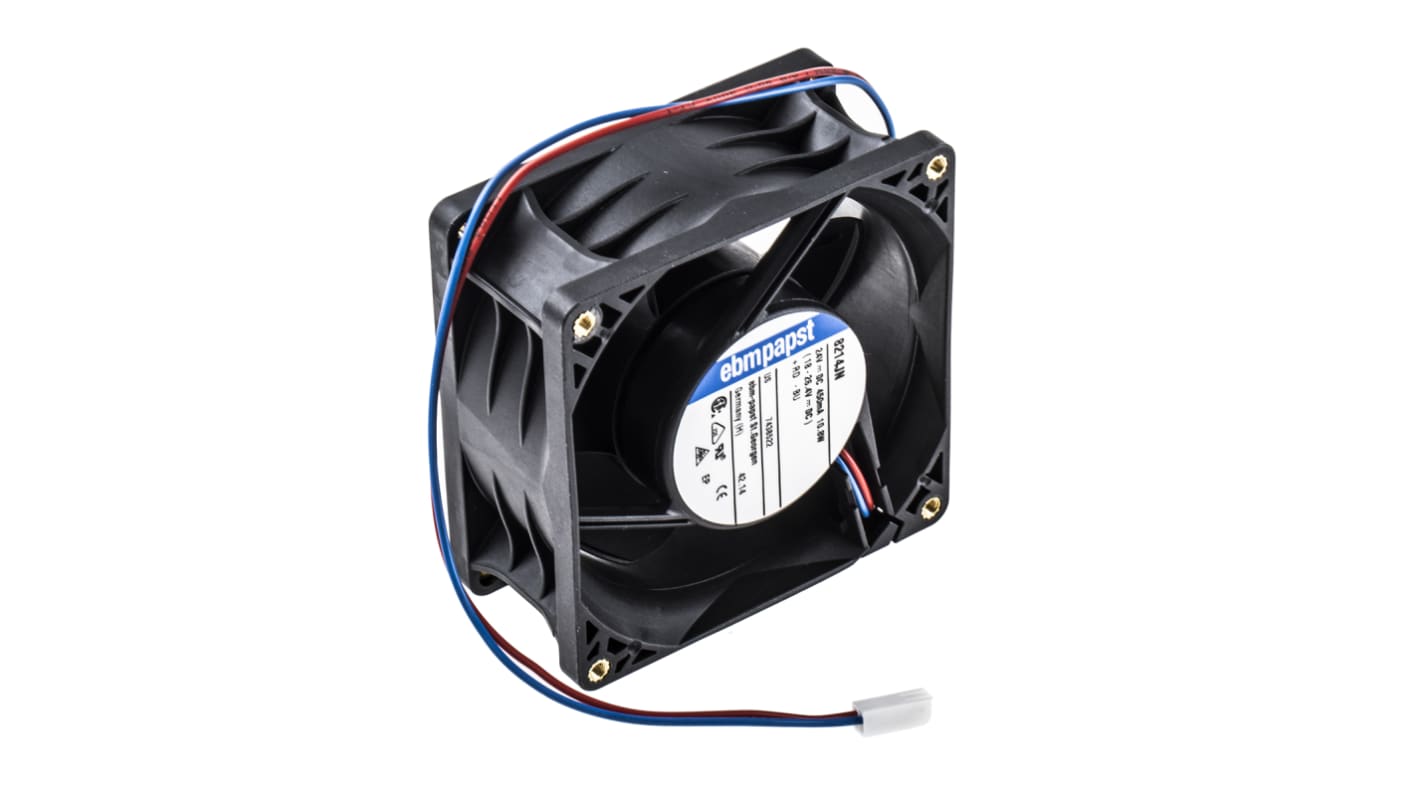

ebm-papst 8200 J Series Axial Fan, 24V dc, 132 m³/h, 11 W, IP68 80 mm 80mm 38 mm
- RS Stock No.:
- 783-2712
- Mfr. Part No.:
- 8214JN-RS0
- Brand:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£64.51
(exc. VAT)
£77.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £64.51 |
| 5 - 9 | £59.35 |
| 10 - 24 | £56.77 |
| 25 - 49 | £52.90 |
| 50 + | £46.45 |
*price indicative
- RS Stock No.:
- 783-2712
- Mfr. Part No.:
- 8214JN-RS0
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 11W | |
| Air Flow | 132m³/h | |
| Noise Level | 55dB | |
| Fan Speed | 8400rpm | |
| External Depth | 38mm | |
| Direction of Curve | Forward | |
| Fan Frame Size | 80 mm | |
| Fan Frame Type | Rectangular | |
| Bearing Type | Ball | |
| Height | 80mm | |
| Depth | 38mm | |
| Series | 8200 J | |
| Width | 80mm | |
| Standards/Approvals | CE, EAC, UL, VDE | |
| IP Rating | IP68 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 11W | ||
Air Flow 132m³/h | ||
Noise Level 55dB | ||
Fan Speed 8400rpm | ||
External Depth 38mm | ||
Direction of Curve Forward | ||
Fan Frame Size 80 mm | ||
Fan Frame Type Rectangular | ||
Bearing Type Ball | ||
Height 80mm | ||
Depth 38mm | ||
Series 8200 J | ||
Width 80mm | ||
Standards/Approvals CE, EAC, UL, VDE | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- HU
ebm-papst Compact DC Fan Assemblies with Inserts and Connectors
ebm-papst compact DC fans are suitable for high air performance with moderate pressure build-up and feature threaded inserts in each corner to take an M3 threaded bolt and a Molex 22-01-2025 connector. Ideal for PC cooling and various other applications.
• DC fans
• Plastic housing
• Molex connector fitted
• Threaded inserts for easy mounting
• Connection via lead 313mm (+/- 10mm)
• Threaded brass inserts fitted on both sides
• Blowing over struts
• Protection IP20
