ebm-papst 8200 J Series Axial Fan, 48 V dc, DC Operation, 222.7m³/h, 36W, 80 x 80 x 38mm
- RS Stock No.:
- 749-6975
- Distrelec Article No.:
- 301-47-925
- Mfr. Part No.:
- 8218J/2H4P
- Brand:
- ebm-papst

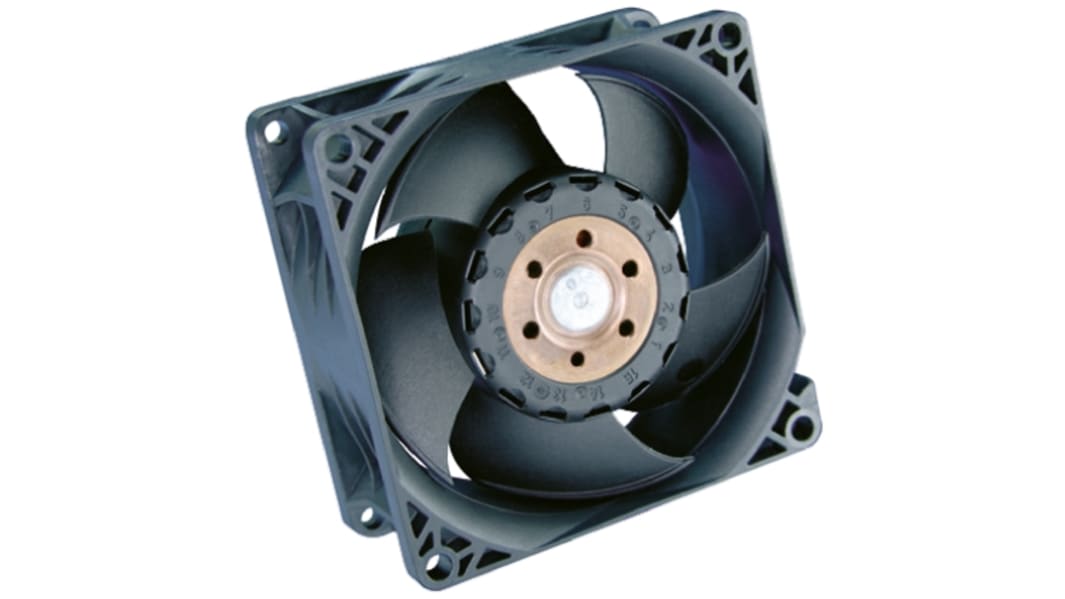

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£88.23
(exc. VAT)
£105.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £88.23 |
| 5 - 9 | £81.17 |
| 10 - 24 | £77.64 |
| 25 - 49 | £72.35 |
| 50 + | £63.52 |
*price indicative
- RS Stock No.:
- 749-6975
- Distrelec Article No.:
- 301-47-925
- Mfr. Part No.:
- 8218J/2H4P
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 48 V dc | |
| AC or DC Operation | DC | |
| Height | 80mm | |
| Width | 80mm | |
| Power Consumption | 36W | |
| Depth | 38mm | |
| Air Flow | 222.7m³/h | |
| Dimensions | 80 x 80 x 38mm | |
| Noise Level | 71dB | |
| Fan Speed | 14000rpm | |
| Sensor Type | PWM, Tachometer | |
| Bearing Type | Ball | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 48 V dc | ||
AC or DC Operation DC | ||
Height 80mm | ||
Width 80mm | ||
Power Consumption 36W | ||
Depth 38mm | ||
Air Flow 222.7m³/h | ||
Dimensions 80 x 80 x 38mm | ||
Noise Level 71dB | ||
Fan Speed 14000rpm | ||
Sensor Type PWM, Tachometer | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- DE
S-Force High Performance Compact Fans
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications. This fan series is particularly suitable for the cooling of high-performance electronic components, such as those in servers, TCA systems, telecommunication devices, inverter drives and many other industrial applications.
• Performance from 600m³/h to a maximum of 930m³/h, depending on model
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
