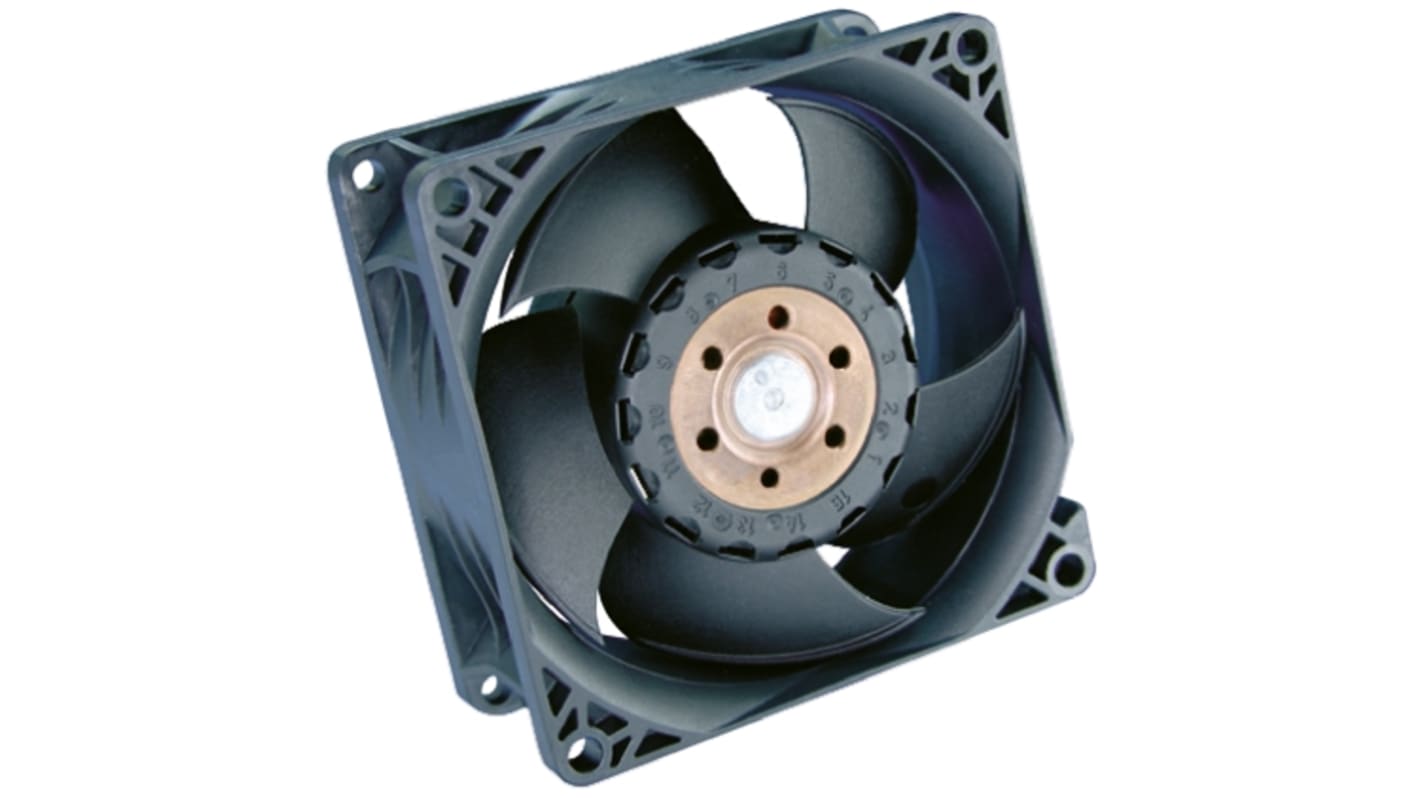

ebm-papst 8200 J Series Axial Fan, 12 V dc, DC Operation, 222.7m³/h, 39W, 80 x 80 x 38mm
- RS Stock No.:
- 749-6962
- Mfr. Part No.:
- 8212J/2H4P
- Brand:
- ebm-papst
25 In stock - FREE next working day delivery available
Added
Price Each
£85.51
(exc. VAT)
£102.61
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £85.51 |
| 5 - 9 | £78.67 |
| 10 - 24 | £75.25 |
| 25 - 49 | £70.12 |
| 50 + | £61.57 |
- RS Stock No.:
- 749-6962
- Mfr. Part No.:
- 8212J/2H4P
- Brand:
- ebm-papst
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
S-Force High Performance Compact Fans
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications. This fan series is particularly suitable for the cooling of high-performance electronic components, such as those in servers, TCA systems, telecommunication devices, inverter drives and many other industrial applications.
• Performance from 600m³/h to a maximum of 930m³/h, depending on model
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
Note
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 12 V dc |
| AC or DC Operation | DC |
| Height | 80mm |
| Power Consumption | 39W |
| Width | 80mm |
| Depth | 38mm |
| Dimensions | 80 x 80 x 38mm |
| Air Flow | 222.7m³/h |
| Noise Level | 71dB |
| Fan Speed | 14000rpm |
| Sensor Type | PWM, Tachometer |
| Bearing Type | Ball |
