STMicroelectronics STEVAL-CCA057V1 Evaluation Board for Dual Operational Amplifier Family in an SO8 Package for CCA057V1

View all Analogue Development Tools
Bulk discount available

Subtotal (1 unit)*

£16.16

(exc. VAT)

£19.39

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 - 4£16.16
5 - 9£15.74
10 - 24£15.33
25 +£14.95

*price indicative

RS Stock No.:
196-1745
Mfr. Part No.:
STEVAL-CCA057V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Analogue Development Kit

Kit Classification

Evaluation Board

For Use With

Dual Operational Amplifier Family in an SO8 Package

Featured Device

CCA057V1

COO (Country of Origin):
IT

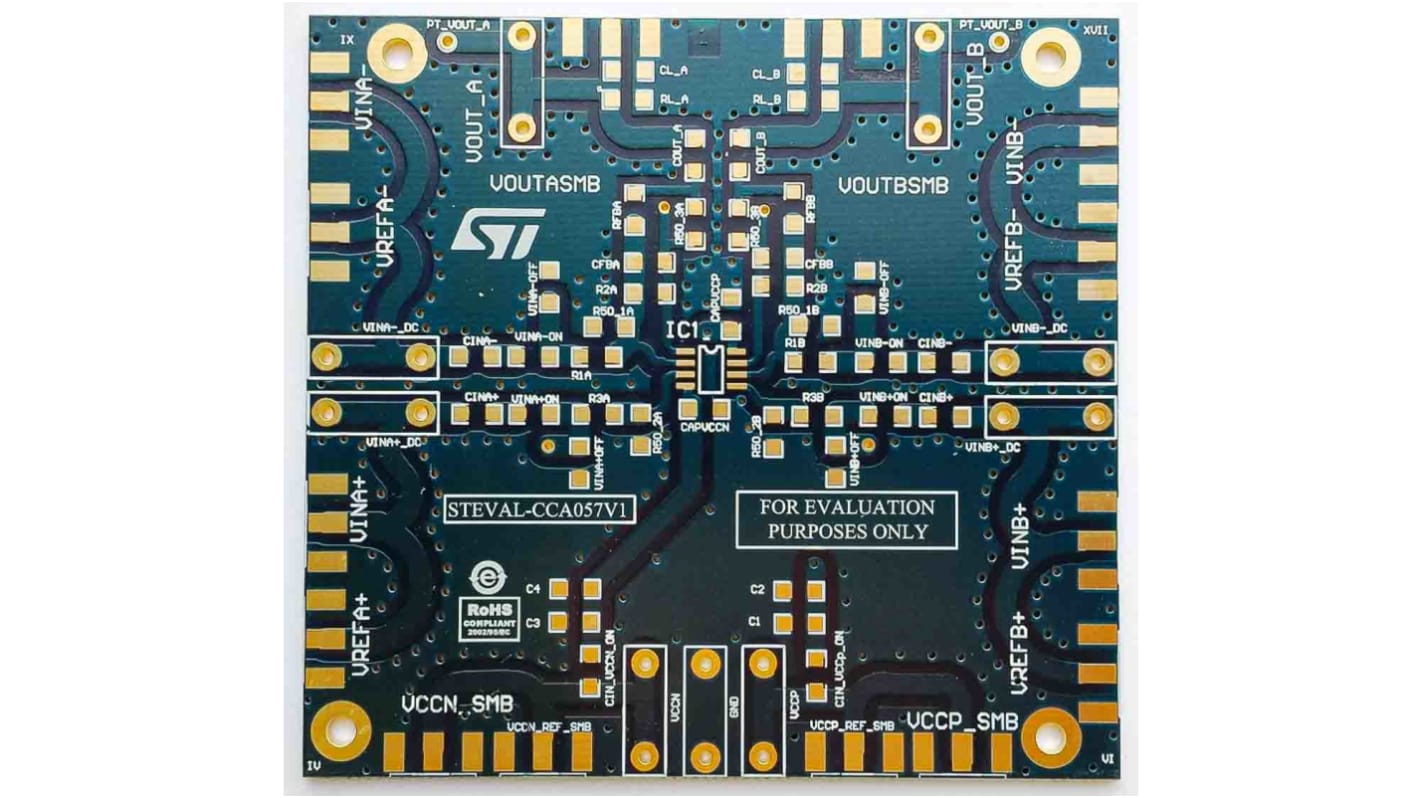

The STEVAL-CCA057V1 evaluation board is designed to help customers quickly prototype new dual op amp circuits in an SO8 package and reduce design time. It can be used with almost any STMicroelectronics dual op amp in various configurations and applications.

The STEVAL-CCA057V1 is a bare board. There are no components or amplifiers soldered on the board. The components must be ordered separately.

The board with its components allow it to be configured as:

Sallen-key filter

Instrument amplifier

AC-coupled circuit

Out-of-loop compensation circuit

In loop compensation circuit

Transimpedance amplifier

Gain amplifier

Numerous other possible configurations
