STMicroelectronics STEVAL-AETKT4V1, Evaluation Kit For TSC202x Family, High Voltage, Precision Current Sense Amplifier

View all Analogue Development Tools

Subtotal (1 unit)*

£34.42

(exc. VAT)

£41.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£34.42

*price indicative

RS Stock No.:
279-885
Mfr. Part No.:
STEVAL-AETKT4V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Analogue Function

Current Sensing Amplifier

Kit Classification

Evaluation Kit

For Use With

TSC202x Family

Featured Device

TSC2020, TSC2021, TSC2022

Kit Name

Evaluation Kit For TSC202x Family, High Voltage, Precision Current Sense Amplifier

COO (Country of Origin):
IT

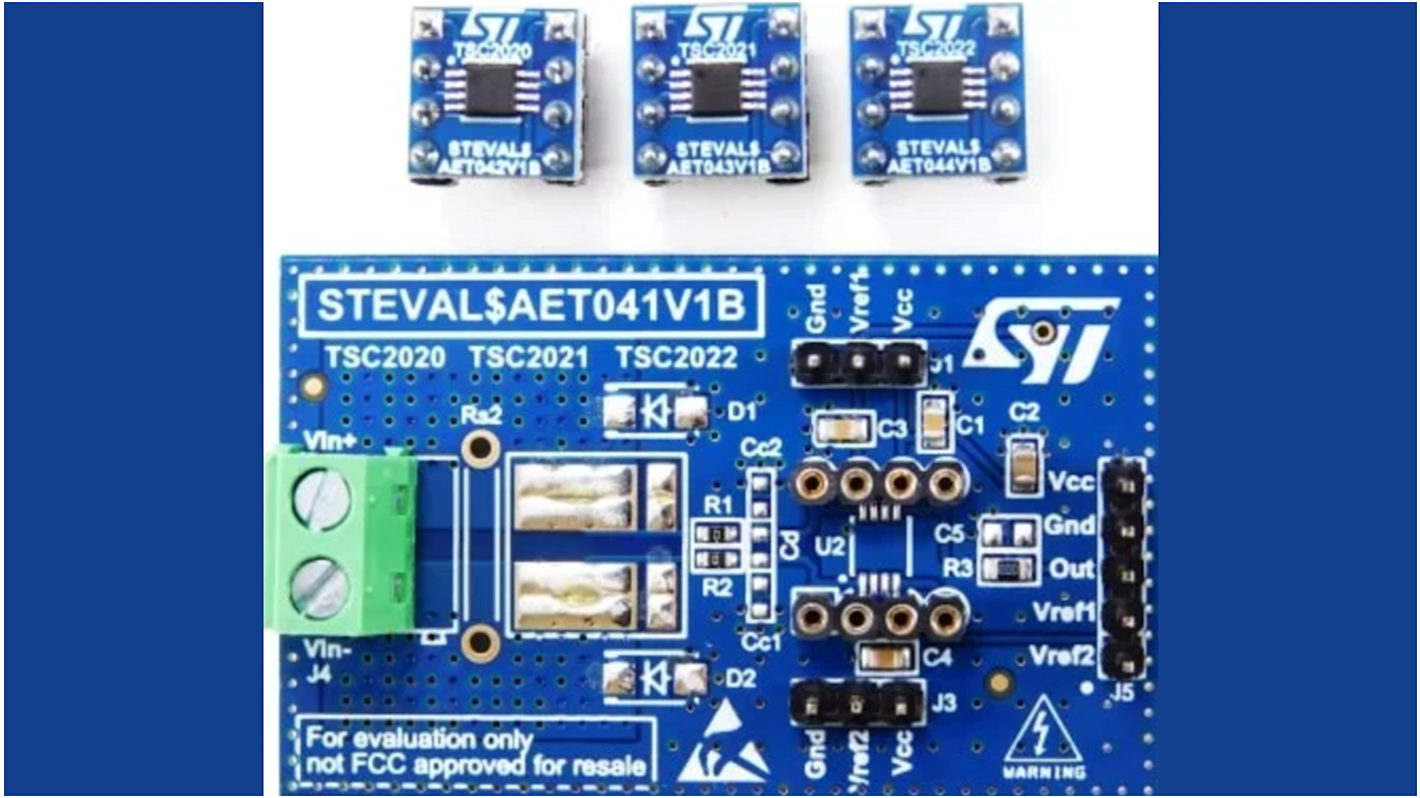

The STMicroelectronics evaluation kit is designed for bidirectional current sensing, featuring a motherboard and three daughter boards with varying gain (20, 50, 100). It uses TSC202x amplifiers with zero-drift topology for high precision, offering high CMRR and low input-offset voltage. The kit supports both unidirectional and bidirectional current sensing with optimized PWM rejection.

Gain range from 20 to 100
Maximum gain error of 0.3%
Operating temperature range: -40°C to 125°C
RoHS compliant
