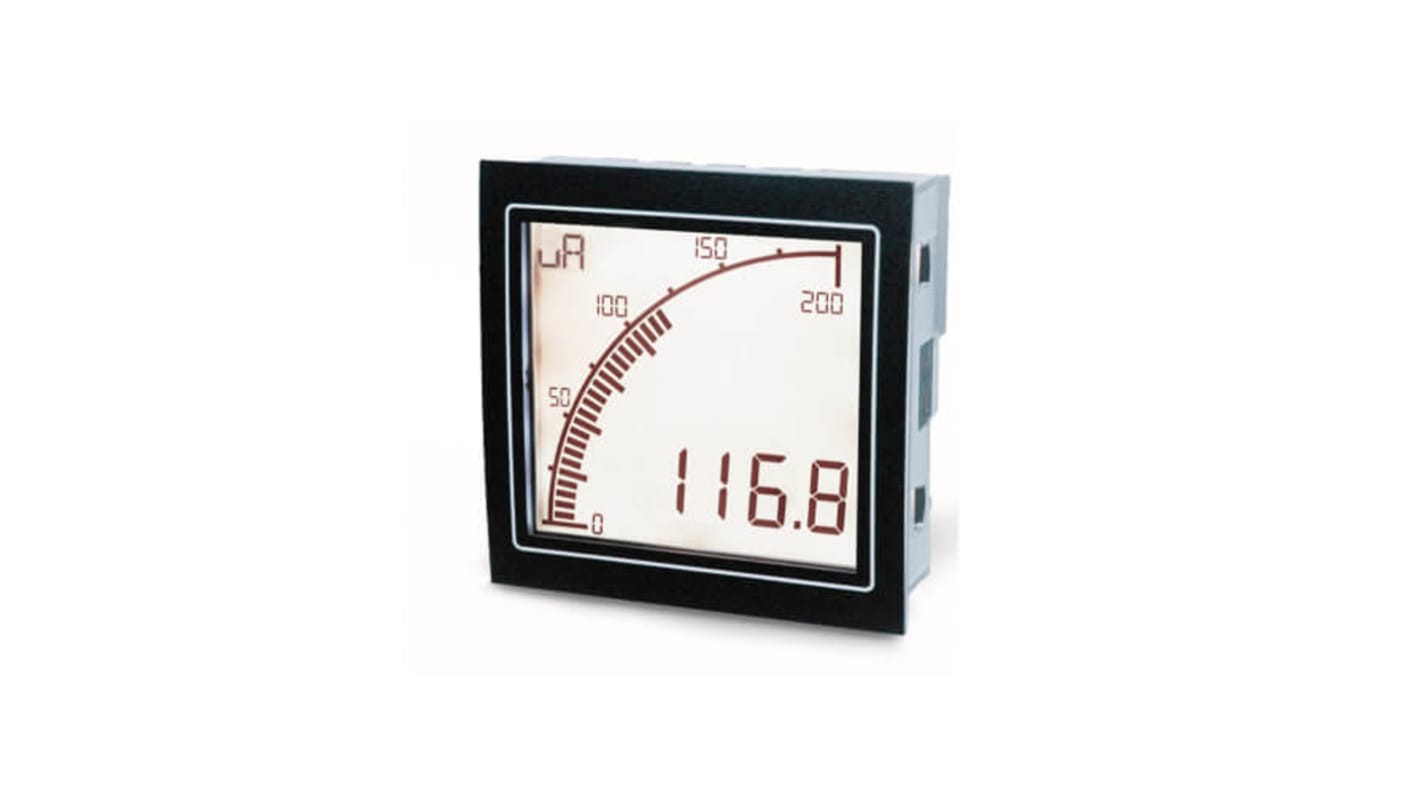

Trumeter APM Analogue Panel Ammeter DC, 68mm x 68mm

The APM Micro Meter is designed for precise DC current measurement in microamps, ideal for applications where accuracy and reliability are essential. With a high-resolution range of 0-200 μA and 0.1% accuracy, it captures even minor current fluctuations, making it perfect for sensitive processes requiring fine measurement.

Its innovative display merges the readability of analogue meters with the precision of digital, providing both instant recognition and exact data. This panel meter offers unmatched ease of use and readability for seamless monitoring. With the free APM configuration software, users can easily tailor settings such as scale, range, alarms, backlight colour, and messaging to suit their application needs. It features two configurable outputs, which can be set as either digital (open collector) or analogue (4-20mA) outputs.

Additionally, the APM Micro Meter is compatible with Trumeter’s APM IoT Gateway, allowing for remote monitoring through Trumeter Cloud. Users can access meter data from any location, track data over time, and receive notifications via online alerts, SMS, and email.

The positive LCD uses black figures on a colour-changing background.

• 0-200 μA
• 0.1% accuracy
• Fully user-configurable digital panel meter
• Scaling and range options including min. and max, offset and gain, x10 scaling factor, centre zero, 20-point non-linearization scaling and more.
• Dynamic colour-changing backlight - green, red, white
• Remote monitoring with Trumeter Cloud when used with Trumeter APM IoT Gateway
• 40-segment bar graph display
• Large, high contrast, anti-glare, LCD display with wide viewing angle
• Starburst display area for messages and alarm information
• 10 alarm setpoints & configurable digital output delay
• Two independent outputs as digital or analogue (4-20 mA)
• Wide viewing angle
• IP65 protection

All Trumeter products come with a 3-year manufacturer's warranty
