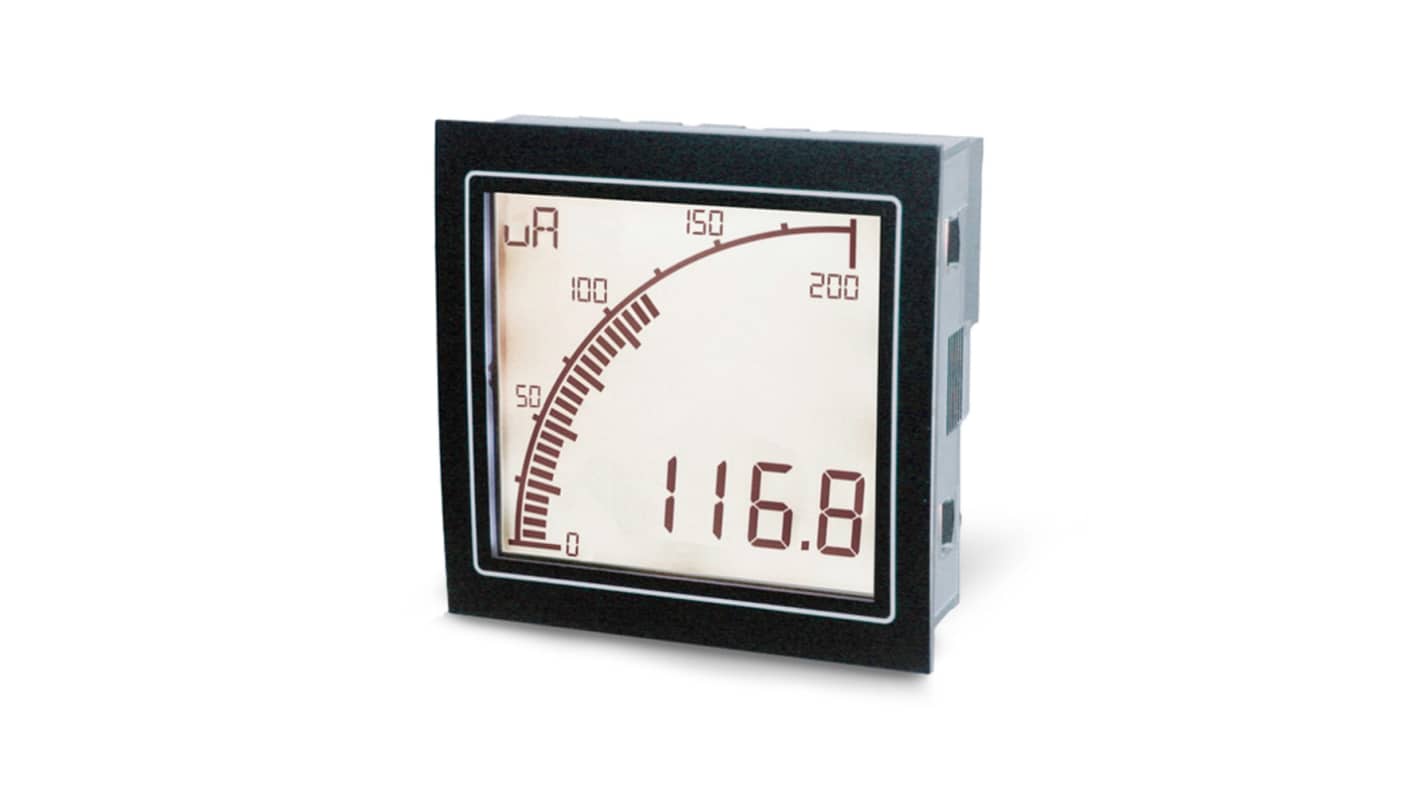

Trumeter APM Analogue Panel Ammeter DC, 68mm x 68mm
- RS Stock No.:
- 210-2702
- Mfr. Part No.:
- APM-MICRO-ANO
- Brand:
- Trumeter
Subtotal (1 unit)*
£133.67
(exc. VAT)
£160.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £133.67 |
*price indicative
- RS Stock No.:
- 210-2702
- Mfr. Part No.:
- APM-MICRO-ANO
- Brand:
- Trumeter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Trumeter | |
Current Type | DC | |
Cutout Height | 68mm | |
Cutout Width | 68mm | |
Series | APM | |
Select all | ||
---|---|---|
Brand Trumeter | ||
Current Type DC | ||
Cutout Height 68mm | ||
Cutout Width 68mm | ||
Series APM | ||
- COO (Country of Origin):
- MY
APM-MICRO-ANO
The APM Micro Meter is designed for precise DC current measurement in microamps, ideal for applications where accuracy and reliability are essential. With a high-resolution range of 0-200 μA and 0.1% accuracy, it captures even minor current fluctuations, making it perfect for sensitive processes requiring fine measurement.
Its innovative display merges the readability of analogue meters with the precision of digital, providing both instant recognition and exact data. This panel meter offers unmatched ease of use and readability for seamless monitoring. With the free APM configuration software, users can easily tailor settings such as scale, range, alarms, backlight colour, and messaging to suit their application needs. It features two configurable outputs, which can be set as either digital (open collector) or analogue (4-20mA) outputs.
Additionally, the APM Micro Meter is compatible with Trumeters APM IoT Gateway, allowing for remote monitoring through Trumeter Cloud. Users can access meter data from any location, track data over time, and receive notifications via online alerts, SMS, and email.
With a negative LCD display, with colour-changing figures on a black background.
Its innovative display merges the readability of analogue meters with the precision of digital, providing both instant recognition and exact data. This panel meter offers unmatched ease of use and readability for seamless monitoring. With the free APM configuration software, users can easily tailor settings such as scale, range, alarms, backlight colour, and messaging to suit their application needs. It features two configurable outputs, which can be set as either digital (open collector) or analogue (4-20mA) outputs.
Additionally, the APM Micro Meter is compatible with Trumeters APM IoT Gateway, allowing for remote monitoring through Trumeter Cloud. Users can access meter data from any location, track data over time, and receive notifications via online alerts, SMS, and email.
With a negative LCD display, with colour-changing figures on a black background.
Features and Benefits
• 0-200 μA
• 0.1% accuracy
• Fully user-configurable digital panel meter
• Scaling and range options including min. and max, offset and gain, x10 scaling factor, centre zero, 20-point non-linearization scaling and more.
• Dynamic colour-changing backlight - green, red, white
• Remote monitoring with Trumeter Cloud when used with Trumeter APM IoT Gateway
• 40-segment bar graph display
• Large, high contrast, anti-glare, LCD display with wide viewing angle
• Starburst display area for messages and alarm information
• 10 alarm setpoints & configurable digital output delay
• Two independent outputs as digital or analogue (4-20 mA)
• Wide viewing angle
• IP65 protection
• 0.1% accuracy
• Fully user-configurable digital panel meter
• Scaling and range options including min. and max, offset and gain, x10 scaling factor, centre zero, 20-point non-linearization scaling and more.
• Dynamic colour-changing backlight - green, red, white
• Remote monitoring with Trumeter Cloud when used with Trumeter APM IoT Gateway
• 40-segment bar graph display
• Large, high contrast, anti-glare, LCD display with wide viewing angle
• Starburst display area for messages and alarm information
• 10 alarm setpoints & configurable digital output delay
• Two independent outputs as digital or analogue (4-20 mA)
• Wide viewing angle
• IP65 protection
Note
All Trumeter products come with a 3-year manufacturer's warranty
