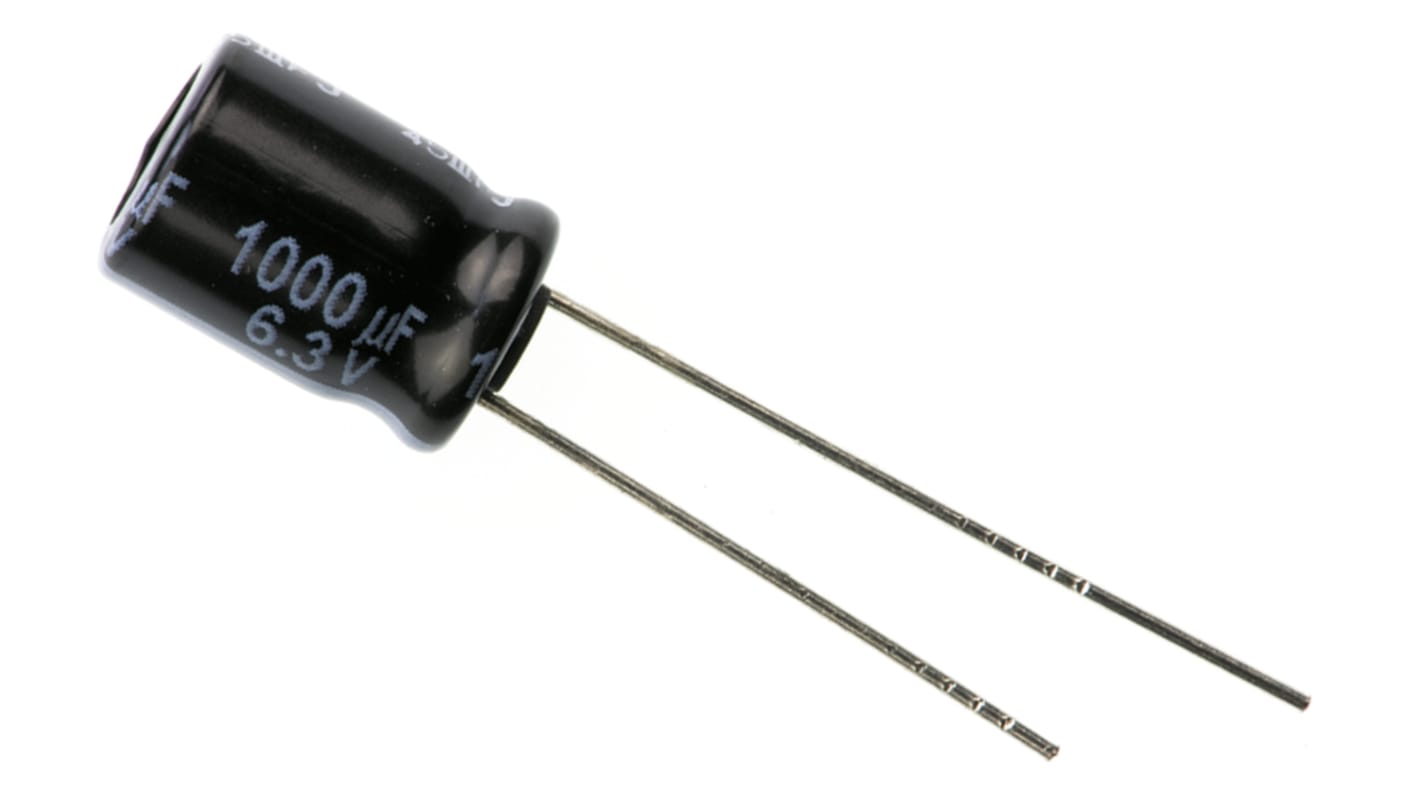

Panasonic 1000μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 6.3V dc, Radial, Through Hole - EEUFR0J102
- RS Stock No.:
- 766-0040
- Mfr. Part No.:
- EEUFR0J102
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.52
(exc. VAT)
£3.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 400 unit(s) ready to ship from another location
- Plus 1,020 unit(s) shipping from 12 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.252 | £2.52 |
| 100 - 240 | £0.237 | £2.37 |
| 250 - 490 | £0.222 | £2.22 |
| 500 - 990 | £0.207 | £2.07 |
| 1000 + | £0.187 | £1.87 |
*price indicative
- RS Stock No.:
- 766-0040
- Mfr. Part No.:
- EEUFR0J102
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 1000µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 8 x 11.5mm | |
| Height | 11.5mm | |
| Length | 11.5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 6000h | |
| Lead Pitch | 3.5mm | |
| Tolerance | ±20% | |
| Series | FR-A | |
| Polarised | Polar | |
| Leakage Current | ≤0.01 CV μA (After 2 min) | |
| Ripple Current | 950mA | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 1000µF | ||
Voltage 6.3V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 x 11.5mm | ||
Height 11.5mm | ||
Length 11.5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 6000h | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Series FR-A | ||
Polarised Polar | ||
Leakage Current ≤0.01 CV μA (After 2 min) | ||
Ripple Current 950mA | ||
Dissipation Factor 200% | ||
