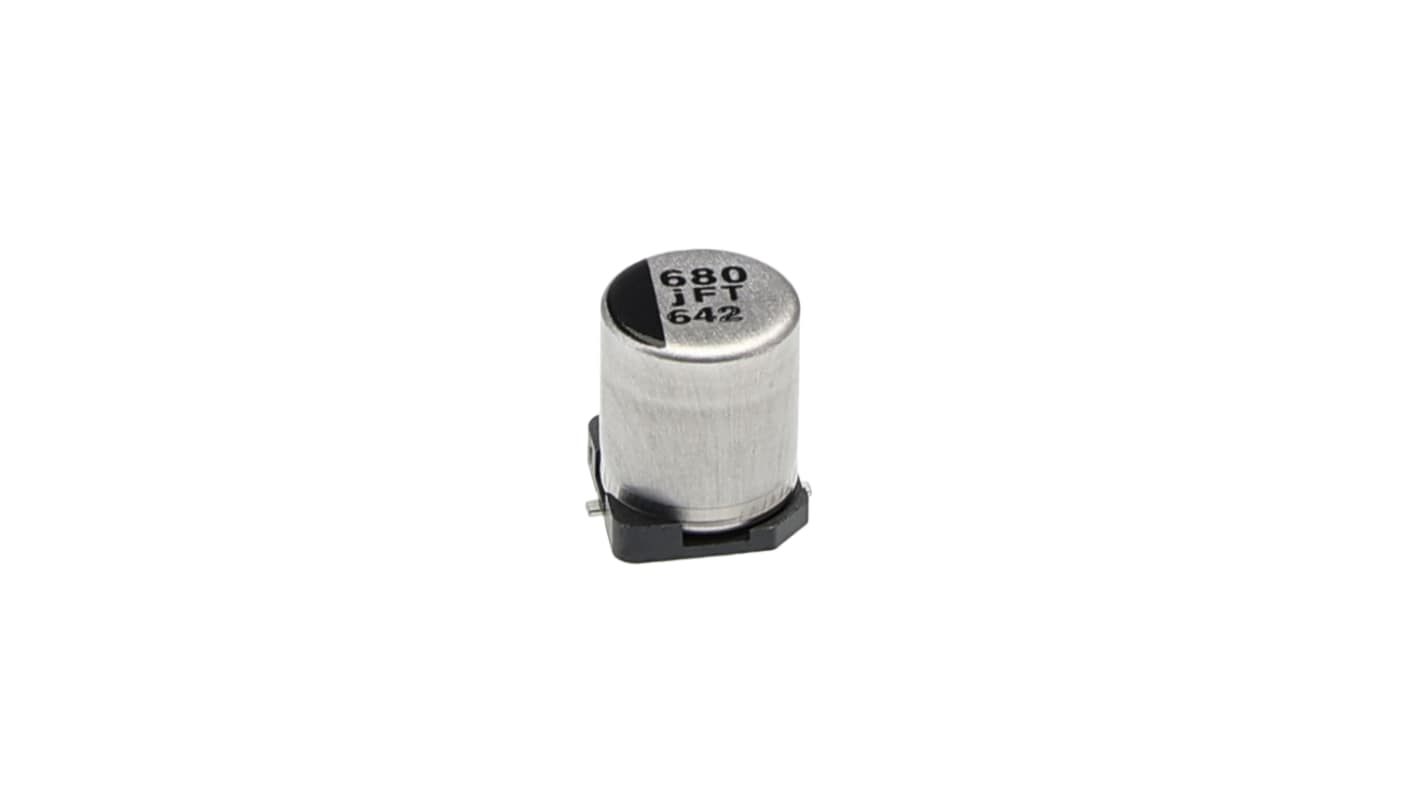

Panasonic 680μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - EEEFTJ681XAP
- RS Stock No.:
- 747-2455
- Mfr. Part No.:
- EEEFTJ681XAP
- Brand:
- Panasonic
Subtotal (1 pack of 10 units)*
£2.73
(exc. VAT)
£3.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 14,130 unit(s) shipping from 15 July 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.273 | £2.73 |
*price indicative
- RS Stock No.:
- 747-2455
- Mfr. Part No.:
- EEEFTJ681XAP
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 680µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 7.7mm | |
| Height | 7.7mm | |
| Length | 7.7mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 1.8mm | |
| Series | FT | |
| Equivalent Series Resistance | 160mΩ | |
| Ripple Current | 600mA | |
| Leakage Current | 42.8 μA | |
| Automotive Standard | AEC-Q200 | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 680µF | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 7.7mm | ||
Height 7.7mm | ||
Length 7.7mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 1.8mm | ||
Series FT | ||
Equivalent Series Resistance 160mΩ | ||
Ripple Current 600mA | ||
Leakage Current 42.8 μA | ||
Automotive Standard AEC-Q200 | ||
Polarised Polar | ||
Tolerance ±20% | ||
Dissipation Factor 200% | ||
