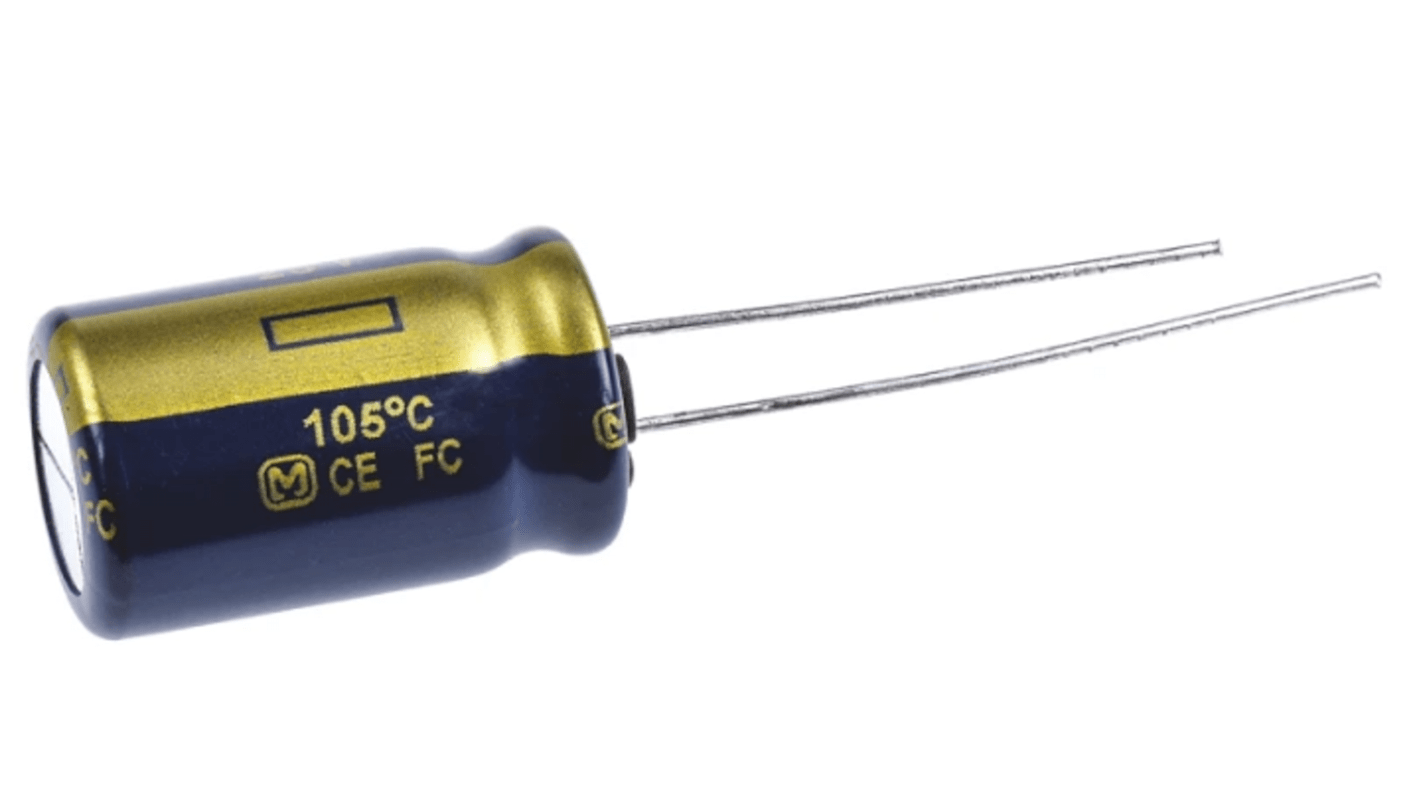

Panasonic 1000μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEUFC1H102B
- RS Stock No.:
- 240-3836
- Mfr. Part No.:
- EEUFC1H102B
- Brand:
- Panasonic
Available to back order for despatch 20/05/2024
Added
Price Each (On a Tape of 250)
£0.841
(exc. VAT)
£1.009
(inc. VAT)
| Units | Per unit | Per Tape* |
| 250 + | £0.841 | £210.25 |
| *price indicative | ||
- RS Stock No.:
- 240-3836
- Mfr. Part No.:
- EEUFC1H102B
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
The Panasonic FC-A series 1000μF aluminium electrolytic capacitors (radial lead type) capacitance and rated voltage 50V.
Endurance : 105 ℃ 1000 h to 5000 h
Low impedance
AEC-Q200 compliant
RoHS compliant
Low impedance
AEC-Q200 compliant
RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1000µF |
| Voltage | 50V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 16 x 25mm |
| Length | 25mm |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Polarised | Polar |
| Automotive Standard | AEC-Q200 |
| Series | FC-A |
| Tolerance | ±20% |
