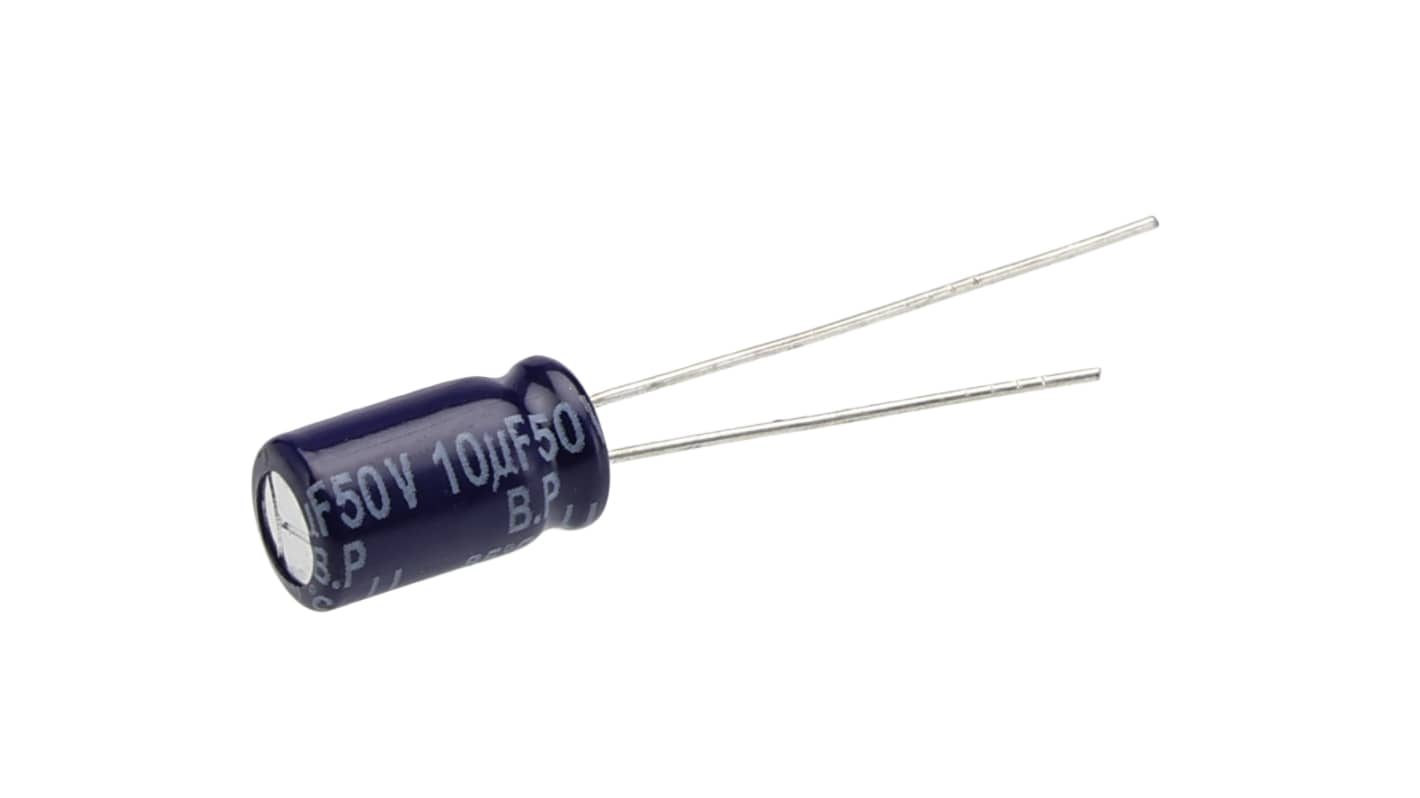

Panasonic 10μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - ECEA1HN100U
- RS Stock No.:
- 727-0486
- Mfr. Part No.:
- ECEA1HN100U
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 25 units)*
£3.725
(exc. VAT)
£4.475
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 250 unit(s) shipping from 30 October 2025
- Plus 2,000 unit(s) shipping from 08 December 2025
- Plus 2,000 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.149 | £3.73 |
| 100 - 225 | £0.138 | £3.45 |
| 250 - 475 | £0.131 | £3.28 |
| 500 - 975 | £0.12 | £3.00 |
| 1000 + | £0.111 | £2.78 |
*price indicative
- RS Stock No.:
- 727-0486
- Mfr. Part No.:
- ECEA1HN100U
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 10µF | |
| Voltage | 50V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 11.2mm | |
| Height | 11.2mm | |
| Length | 11.2mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 2.5mm | |
| Lifetime | 2000h | |
| Polarised | Bi-Polar | |
| Series | SU-A (Bi-Polar) | |
| Tolerance | ±20% | |
| Ripple Current | 50mA | |
| Leakage Current | 18 μA | |
| Dissipation Factor | 150% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 10µF | ||
Voltage 50V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 11.2mm | ||
Height 11.2mm | ||
Length 11.2mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 2.5mm | ||
Lifetime 2000h | ||
Polarised Bi-Polar | ||
Series SU-A (Bi-Polar) | ||
Tolerance ±20% | ||
Ripple Current 50mA | ||
Leakage Current 18 μA | ||
Dissipation Factor 150% | ||
Panasonic SU Bi-Polar Series
Panasonic SU Series are bipolar electrolytic capacitors. These radial capacitors offer 2000 hours endurance at +85°C.
Applications
Bipolar
Radial lead type
High reliability
Long life
Low impedance
High ripple current
Surface mount
Radial lead type
High reliability
Long life
Low impedance
High ripple current
Surface mount
Panasonic SU Series electrolytic capacitors are recommended for use in applications where polarity can change. Their high reliability makes them suitable for use in industrial instruments and crossover networks in high fidelity systems.
Note
Product may be marked with + / -
