Vishay 6800 μF Capacitor 25V dc, Axial, Through Hole - MAL212516682E3 Axial
- RS Stock No.:
- 238-5609
- Mfr. Part No.:
- MAL212516682E3
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£6.37
(exc. VAT)
£7.64
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 598 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £6.37 |
| 5 - 9 | £5.98 |
| 10 - 24 | £5.62 |
| 25 + | £5.34 |
*price indicative
- RS Stock No.:
- 238-5609
- Mfr. Part No.:
- MAL212516682E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Capacitor | |
| Capacitance | 6800μF | |
| Voltage | 25V dc | |
| Mount Type | Axial, Through Hole | |
| Packaging | Tape | |
| Height | 39.5mm | |
| Polarity | Polar | |
| Length | 38mm | |
| Minimum Operating Temperature | 105°C | |
| Diameter | 18mm | |
| Pin Count | 2 | |
| Capacitor Ripple Current | 1.8A | |
| Termination Type | Axial | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 10000 h (Useful Life), 5000 h (Endurance) | |
| Standards/Approvals | AEC-Q200, IEC 60068, IEC 60384-4/EN 130300 | |
| Automotive Standard | AEC-Q200 | |
| Tolerance | ±20 % | |
| Equivalent Series Resistance ESR | 0.051mΩ | |
| Series | 125ALS | |
| Leakage Current | 360μA | |
| Dissipation Factor | 0.26% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Capacitor | ||
Capacitance 6800μF | ||
Voltage 25V dc | ||
Mount Type Axial, Through Hole | ||
Packaging Tape | ||
Height 39.5mm | ||
Polarity Polar | ||
Length 38mm | ||
Minimum Operating Temperature 105°C | ||
Diameter 18mm | ||
Pin Count 2 | ||
Capacitor Ripple Current 1.8A | ||
Termination Type Axial | ||
Maximum Operating Temperature 105°C | ||
Lifetime 10000 h (Useful Life), 5000 h (Endurance) | ||
Standards/Approvals AEC-Q200, IEC 60068, IEC 60384-4/EN 130300 | ||
Automotive Standard AEC-Q200 | ||
Tolerance ±20 % | ||
Equivalent Series Resistance ESR 0.051mΩ | ||
Series 125ALS | ||
Leakage Current 360μA | ||
Dissipation Factor 0.26% | ||

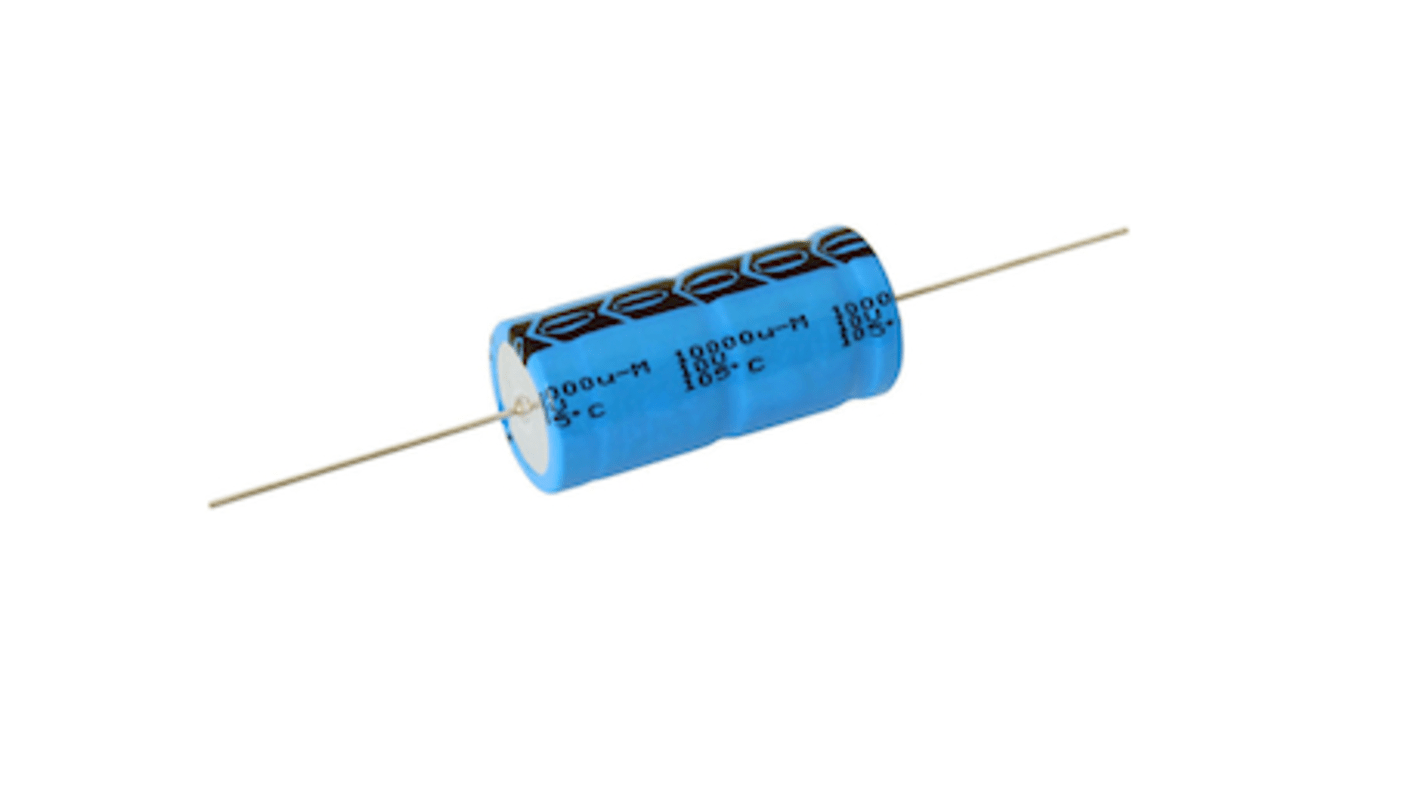

The Vishay aluminium electrolytic capacitors have rated capacitance of 6800 μF. These have axial leads, cylindrical aluminium case, insulated with blue sleeve charge and discharge proof. Suitable for industrial, automotive, EDP, and telecommunication.
Long useful life 5000h to 1000h at 105°C , high reliability
High ripple current capability
Miniaturized, high CV-product per unit volume
