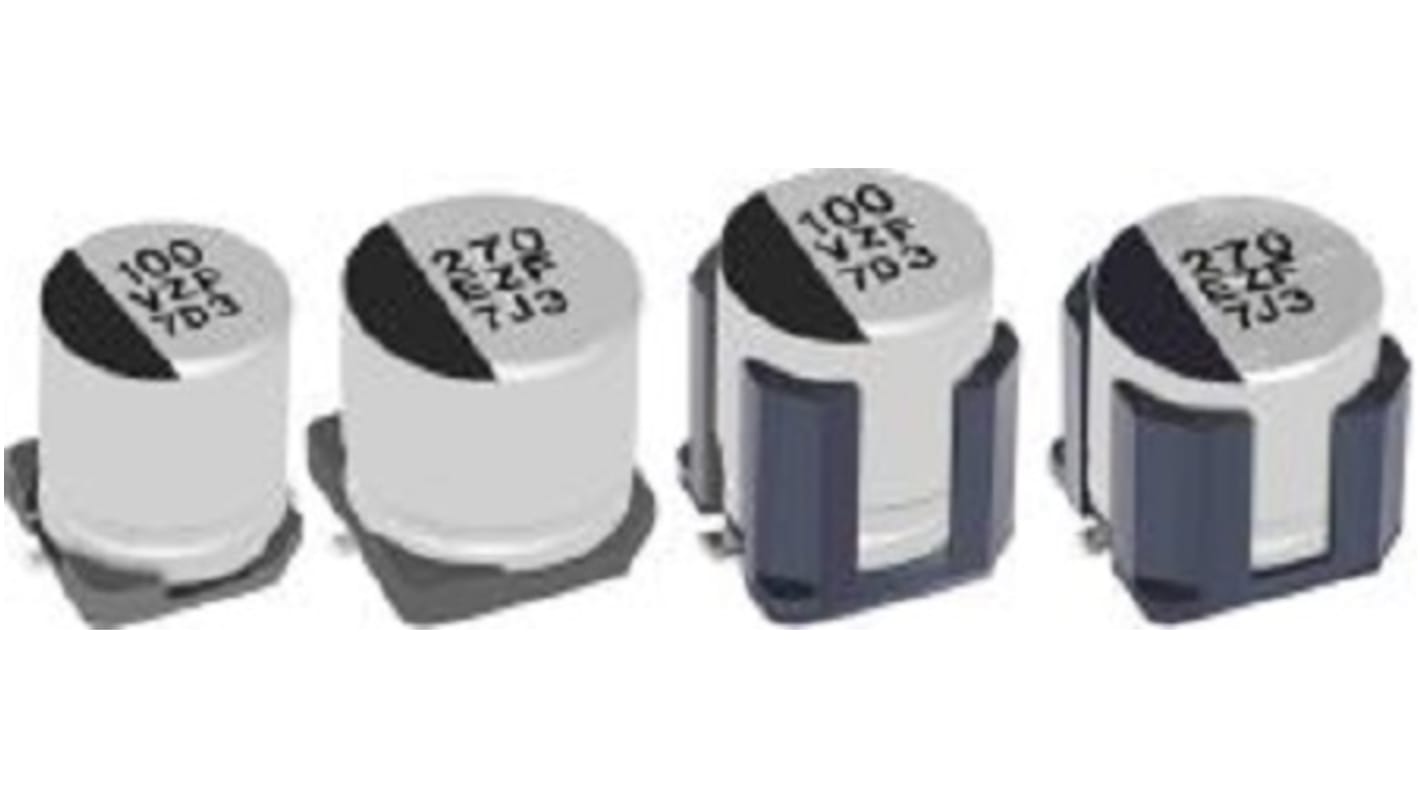

Panasonic 100μF Conductive Polymer Hybrid Aluminium Electrolytic Capacitor 50V dc, Surface Mount - EEHZF1H101V
- RS Stock No.:
- 211-0534
- Mfr. Part No.:
- EEHZF1H101V
- Brand:
- Panasonic
Subtotal (1 reel of 500 units)*
£470.00
(exc. VAT)
£565.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.94 | £470.00 |
*price indicative
- RS Stock No.:
- 211-0534
- Mfr. Part No.:
- EEHZF1H101V
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 100µF | |
| Voltage | 50V dc | |
| Mounting Type | Surface Mount | |
| Technology | Conductive Polymer Hybrid | |
| Dimensions | 10 (Dia.) x 10.5mm | |
| Length | 10.5mm | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +150°C | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Automotive Standard | AEC-Q200 | |
| Series | ZF-V | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 100µF | ||
Voltage 50V dc | ||
Mounting Type Surface Mount | ||
Technology Conductive Polymer Hybrid | ||
Dimensions 10 (Dia.) x 10.5mm | ||
Length 10.5mm | ||
Diameter 10mm | ||
Maximum Operating Temperature +150°C | ||
Polarised Polar | ||
Tolerance ±20% | ||
Automotive Standard AEC-Q200 | ||
Series ZF-V | ||
