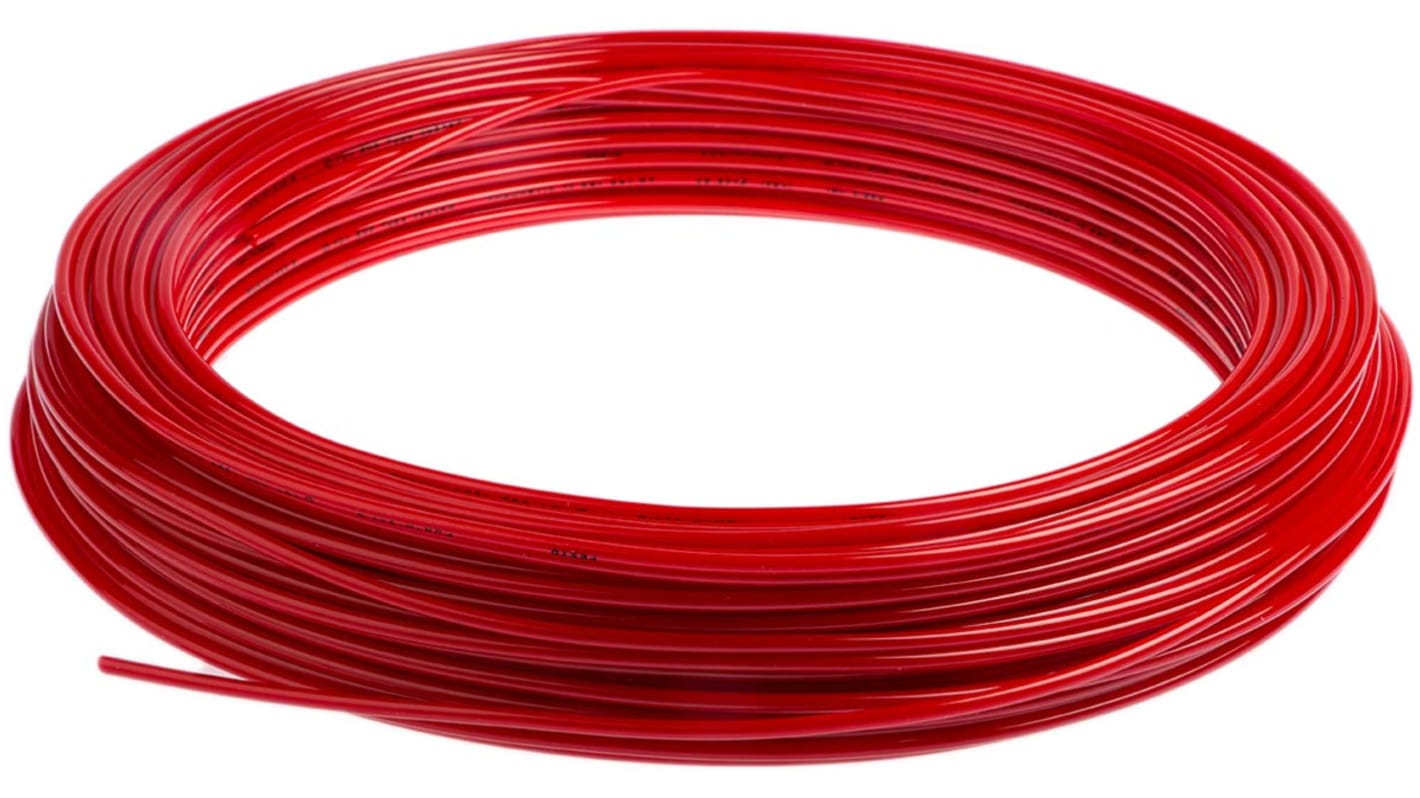

Festo Compressed Air Pipe Red Polyurethane 3 mm 50 m PUN-H Series, 558284
- RS Stock No.:
- 181-6059
- Distrelec Article No.:
- 302-17-966
- Mfr. Part No.:
- PUN-H-3X0,5-RT
- Brand:
- Festo
Bulk discount available
Subtotal (1 reel of 50 metres)*
£33.50
(exc. VAT)
£40.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 27 April 2026
- Plus 2 unit(s) shipping from 27 April 2026
- Plus 12 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | £33.50 | £0.67 |
| 5 - 9 | £32.16 | £0.643 |
| 10 + | £30.82 | £0.616 |
*price indicative
- RS Stock No.:
- 181-6059
- Distrelec Article No.:
- 302-17-966
- Mfr. Part No.:
- PUN-H-3X0,5-RT
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Compressed Air Pipe | |
| Colour | Red | |
| Material | Polyurethane | |
| Length | 50m | |
| Maximum Operating Pressure | 10 bar | |
| Application | Food and Industrial Applications | |
| Series | PUN-H | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 60°C | |
| Inside Diameter | 2.1mm | |
| Resistance Features | Hydrolysis Resistant | |
| Outside Diameter | 3mm | |
| Standards/Approvals | No | |
| Number of Tubes | 1 | |
| Model Number | 558284 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Compressed Air Pipe | ||
Colour Red | ||
Material Polyurethane | ||
Length 50m | ||
Maximum Operating Pressure 10 bar | ||
Application Food and Industrial Applications | ||
Series PUN-H | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 60°C | ||
Inside Diameter 2.1mm | ||
Resistance Features Hydrolysis Resistant | ||
Outside Diameter 3mm | ||
Standards/Approvals No | ||
Number of Tubes 1 | ||
Model Number 558284 | ||
- COO (Country of Origin):
- CZ
Festo Air Hose
The Festo PUN-H series red polyurethane air hose is highly flexible, food safe and hydrolysis resistant plastic tubing. It is mainly used with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane that gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate. The PUN-H series is easy to install with push-in pneumatic fittings due to a simple one click principle.
Features and Benefits
• Highly flexible plastic tube
• Hydrolysis resistant making it suitable for water applications
• Compatible with a wide variety of fittings
• FDA compliant and corrosion resistant due to 100% polymer construction
• Operating pressure ranges between -0.95bar and 10bar
• Free of copper and PTFE
Applications
• Used in water applications
• Clean rooms
• Food industry
Certifications
• ISO8573-1:2010
Festo PUN-H Series Polyurethane Tubing
FESTO PUN-H series is a highly flexible food safe and hydrolysis resistant plastic tubing for use with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane which gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate. The PUN-H series is Very easy to install with push in pneumatic fittings thanks to a simple one click principle.
Features and Benefits
Highly flexible plastic tube
Hydrolysis resistant making it suitable for water applications
Compatible with a wide variety of fittings
Suitable for use in clean rooms
FDA compliant and corrosion resistant thanks to 100% polymer construction
Compressed air in accordance with ISO 8573¬1:2010
Operating pressure: -0.95 to +10 bar
Free of copper and PTFE
Conforms to RoHS
What is an air hose?
An air hose is a tube which transports pressurised air to pneumatic actuators, valves, tools and other devices. A robust and reliable air hose is absolutely essential to maintaining a consistent airflow. A wide range of materials can be used to create the tubing such as polyurethane, rubber, PVC and nylon. Selecting the correct material to suit the application and environment is important to ensure a long service life.
