Festo Compressed Air Pipe Red Polyurethane 3mm x 50m PUN Series, 178409
- RS Stock No.:
- 181-6052
- Mfr. Part No.:
- PUN-3X0,5-RT
- Brand:
- Festo
Bulk discount available
Subtotal (1 reel of 50 metres)*
£44.12
(exc. VAT)
£52.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | £44.12 | £0.882 |
| 5 - 9 | £42.36 | £0.847 |
| 10 + | £40.59 | £0.812 |
*price indicative
- RS Stock No.:
- 181-6052
- Mfr. Part No.:
- PUN-3X0,5-RT
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Hose Outside Diameter | 3mm | |
| Hose Inside Diameter | 2.1mm | |
| Colour | Red | |
| Material | Polyurethane | |
| Length | 50m | |
| Maximum Operating Pressure | 10 bar | |
| Manufacturer Series | PUN | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +60°C | |
| Number of Tubes | 1 | |
| Model Number p | 178409 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Hose Outside Diameter 3mm | ||
Hose Inside Diameter 2.1mm | ||
Colour Red | ||
Material Polyurethane | ||
Length 50m | ||
Maximum Operating Pressure 10 bar | ||
Manufacturer Series PUN | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +60°C | ||
Number of Tubes 1 | ||
Model Number p 178409 | ||
- COO (Country of Origin):
- CZ

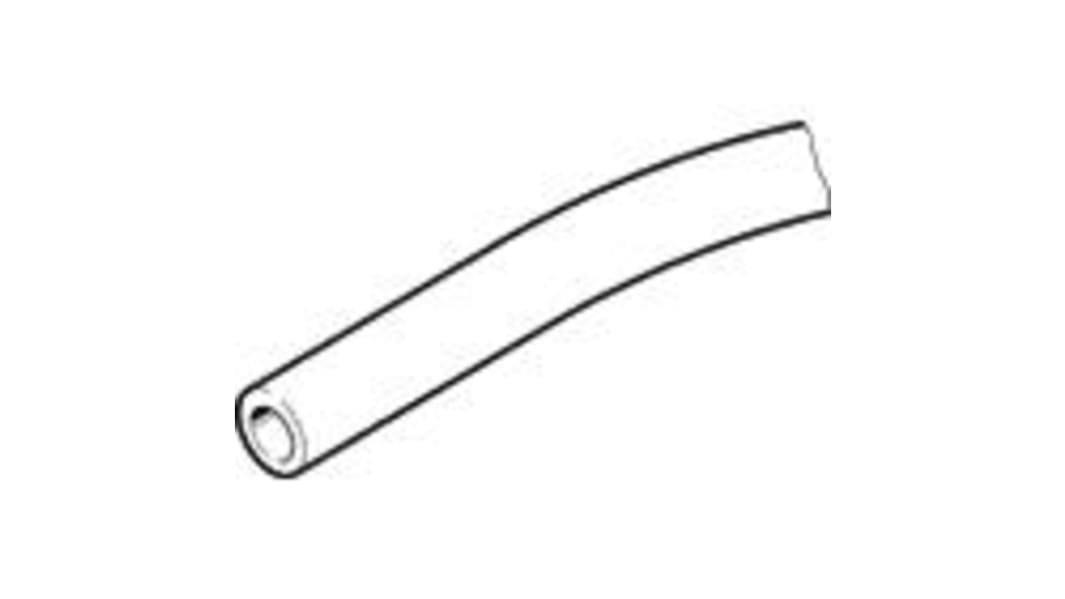

Festo Air Hose
The Festo air hose is made from superior quality polyurethane. It is compatible with cable carriers for applications with high cycle rate suitable for energy chains greater than 5 million cycles. It operates on compressed air. It has inner diameter of 2.1mm and outer diameter of 3mm. The pneumatic connections have been given for plug nipple interior and for push-in fitting exterior diameter.
Features and Benefits
• Superior quality pneumatic fittings
• Easy to use tubing
• Plastic tubing PUN-3X05-RT standard O
• D tubing for QS plug connectors CN and CK polyurethane fittings (not approved for use in the food industry)
• Easy to use tubing
• Plastic tubing PUN-3X05-RT standard O
• D tubing for QS plug connectors CN and CK polyurethane fittings (not approved for use in the food industry)
Applications
• Welding
• Industrial robotics
• Pneumatic valves, fuel and lubrication lines
• Control instrumentation
• Pneumatic lines, chemical transfer tubing and metering pumps
• Industrial robotics
• Pneumatic valves, fuel and lubrication lines
• Control instrumentation
• Pneumatic lines, chemical transfer tubing and metering pumps
