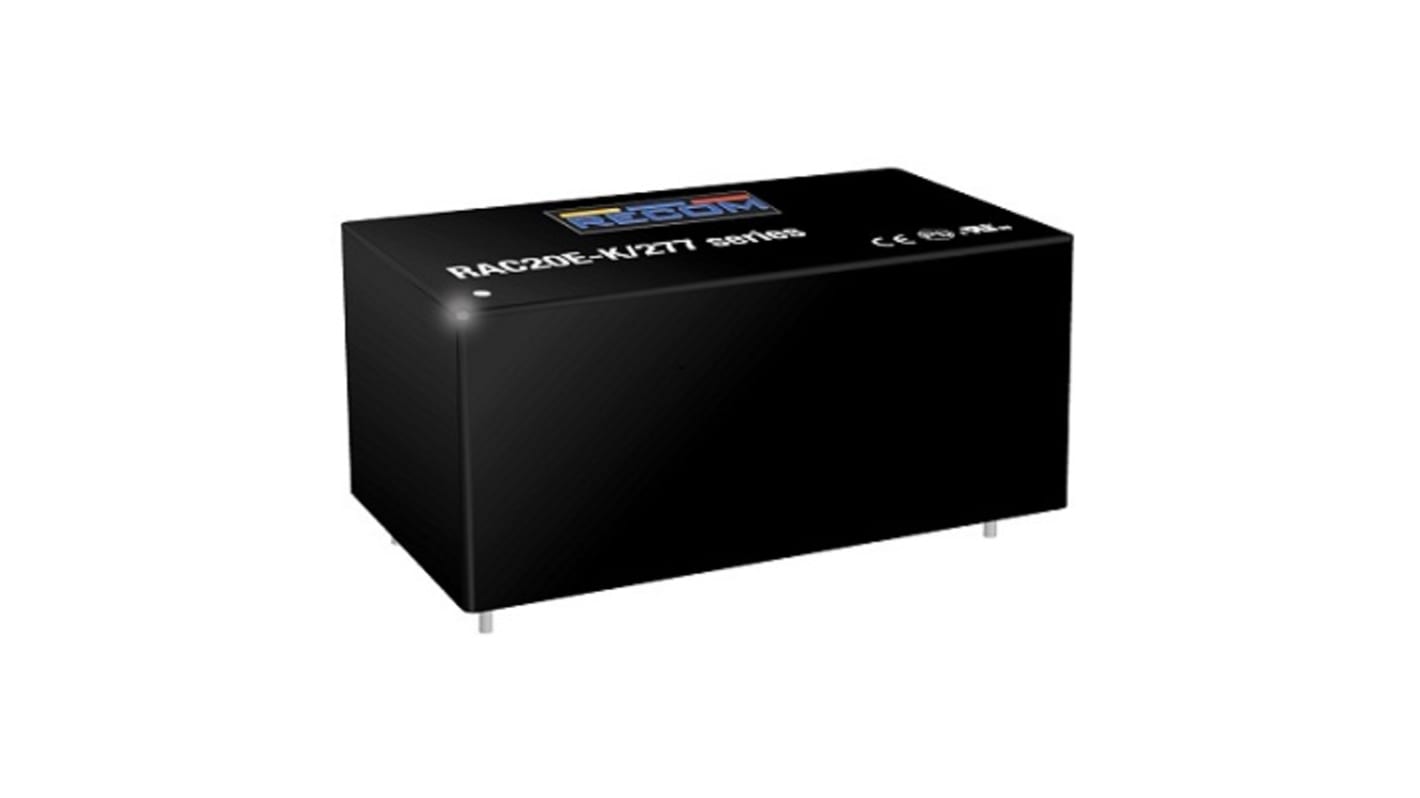

Recom, AC/DC Converter 4 A, 24V, 24 V 4-Pin RAC20E-24SK/277
- RS Stock No.:
- 249-8836
- Mfr. Part No.:
- RAC20E-24SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 15 units)*
£151.125
(exc. VAT)
£181.35
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 30 unit(s) shipping from 25 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 15 - 60 | £10.075 | £151.13 |
| 75 - 135 | £9.773 | £146.60 |
| 150 - 360 | £9.471 | £142.07 |
| 375 - 735 | £9.168 | £137.52 |
| 750 + | £8.866 | £132.99 |
*price indicative
- RS Stock No.:
- 249-8836
- Mfr. Part No.:
- RAC20E-24SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 24V | |
| Mount Type | Through Hole | |
| Output Power | 20W | |
| Switching Frequency | 120kHz | |
| Pin Count | 4 | |
| Maximum Output Current | 4A | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Width | 27.6mm | |
| Series | RAC20E-K/277 | |
| Length | 52.7mm | |
| Standards/Approvals | UL 62368-1, EN55032 Class B, RoHS 2+, CE, REACH | |
| Height | 23mm | |
| Minimum Output Voltage | 24V | |
| Minimum Output Current | 833mA | |
| Automotive Standard | No | |
| Supply Current | 400mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 24V | ||
Mount Type Through Hole | ||
Output Power 20W | ||
Switching Frequency 120kHz | ||
Pin Count 4 | ||
Maximum Output Current 4A | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Width 27.6mm | ||
Series RAC20E-K/277 | ||
Length 52.7mm | ||
Standards/Approvals UL 62368-1, EN55032 Class B, RoHS 2+, CE, REACH | ||
Height 23mm | ||
Minimum Output Voltage 24V | ||
Minimum Output Current 833mA | ||
Automotive Standard No | ||
Supply Current 400mA | ||
- COO (Country of Origin):
- TW
RECOM AC-DC Converter, 305V AC Maximum Input Voltage, 24V DC Maximum Output Voltage - EK Series - RAC20E-24SK/277
Looking for an efficient power management solution for your electrical components? Choose this AC-DC converter from RECOM. It converts an input voltage up to 305V AC to a regulated maximum output of 24V DC, so is a handy general-purpose option. Thanks to 4kV AC isolation and overvoltage protection, you can rest assured it keeps your system safe from unexpected surges. As the unit's plastic housing stops burning in less than 10 seconds and stands up to abrasive forces, this is a safe and long-lasting option. Through-hole mounting on your PCB achieves a stable connection, even in high-vibration settings.
Features & Benefits
• Typical 84% efficiency reduces waste for optimum performance
• Compact dimensions of 52.7 (L) x 27.6 (W) x 23mm (H) fit snugly onto your circuit board
• ±2.0% output accuracy indicates it maintains reliable voltage for a consistent workflow
• Mean time between failures of 830,000, so it's a dependable choice
• Fast-moving, with a maximum start-up time of 150ms
Applications
• Food and beverage production
• Transportation industry
• Mechanical workshops
Can I use this component in harsh industrial conditions?
Yes. This device operates in a broad temperature range between -40°C and +60°C, so it's suitable for use in harsh industrial environments.
