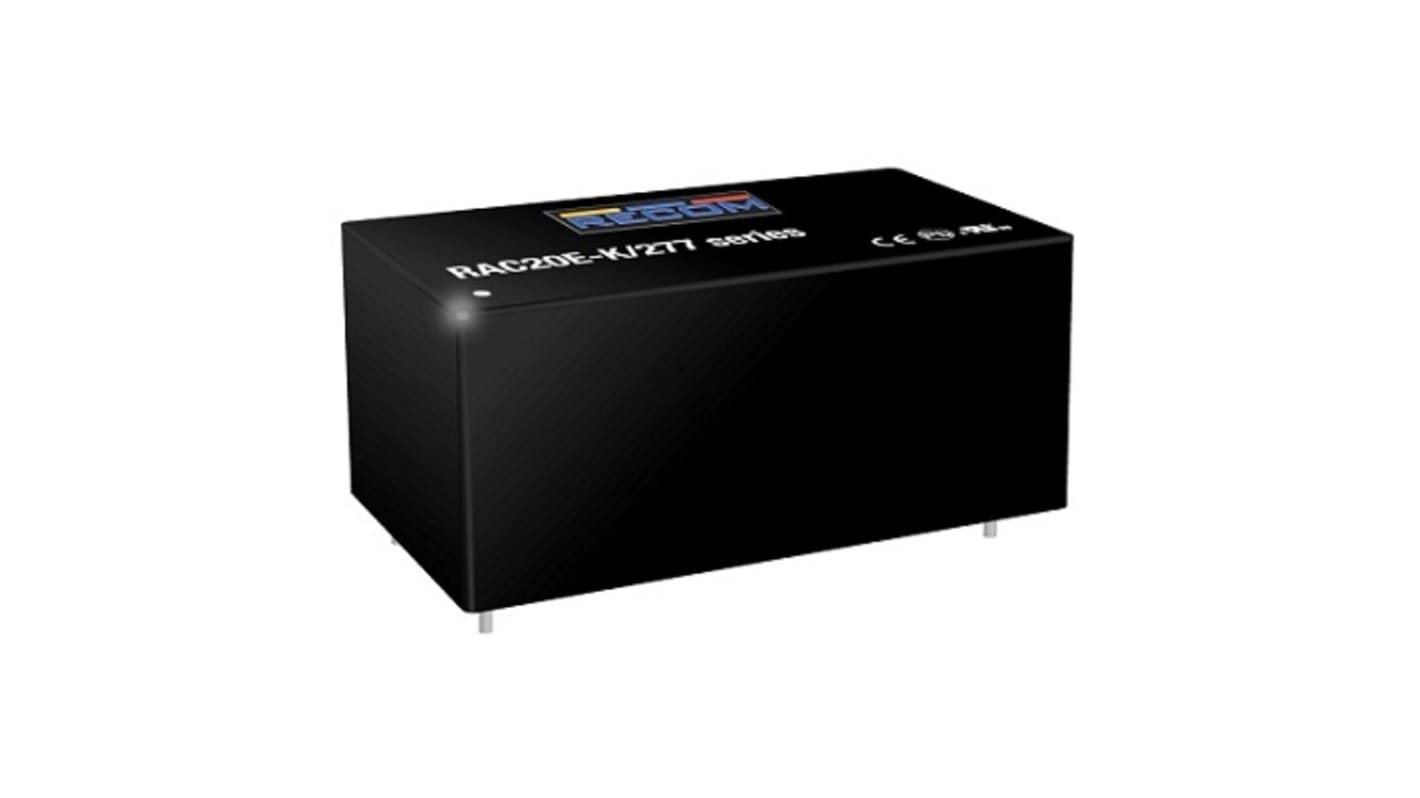

Recom, AC-DC Converter 4-Pin RAC20E-12SK/277
- RS Stock No.:
- 249-8834
- Mfr. Part No.:
- RAC20E-12SK/277
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 15 units)*
£148.005
(exc. VAT)
£177.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 15 - 60 | £9.867 | £148.01 |
| 75 - 135 | £9.571 | £143.57 |
| 150 - 360 | £9.275 | £139.13 |
| 375 - 735 | £8.979 | £134.69 |
| 750 + | £8.683 | £130.25 |
*price indicative
- RS Stock No.:
- 249-8834
- Mfr. Part No.:
- RAC20E-12SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V | |
| Maximum Output Voltage | 12V | |
| Mounting Type | Through Hole | |
| Pin Count | 4 | |
| Maximum Output Current | 1.667A | |
| Dimensions | 52.7 x 27.6 x 23.0mm | |
| Input Voltage Range | 85 → 305 Vac | |
| Current Limit | 0.25mA | |
| Minimum Input Voltage | 85 Vac | |
| Maximum Operating Temperature | +90 °C | |
| Length | 52.7mm | |
| Width | 27.6mm | |
| Height | 23mm | |
| Minimum Operating Temperature | -40 °C | |
| Operating Temperature Range | -40 → +90 °C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V | ||
Maximum Output Voltage 12V | ||
Mounting Type Through Hole | ||
Pin Count 4 | ||
Maximum Output Current 1.667A | ||
Dimensions 52.7 x 27.6 x 23.0mm | ||
Input Voltage Range 85 → 305 Vac | ||
Current Limit 0.25mA | ||
Minimum Input Voltage 85 Vac | ||
Maximum Operating Temperature +90 °C | ||
Length 52.7mm | ||
Width 27.6mm | ||
Height 23mm | ||
Minimum Operating Temperature -40 °C | ||
Operating Temperature Range -40 → +90 °C | ||
- COO (Country of Origin):
- TW
RECOM AC-DC Converter, 305V AC Maximum Input Voltage, 12V DC Maximum Output Voltage - EK Series - RAC20E-12SK/277
Need to change alternating current into direct current in a flash? Choose this AC-DC converter from RECOM. With a maximum start-up time of 150ms, it gets things moving fast. A versatile input voltage range between 85 and 305V AC means it's compatible with standard power supplies. Thanks to inbuilt 4kV isolation and overvoltage protection, you can trust this converter to prevent the risk of damage caused by electrical surges. Compact dimensions of 52.7 (L) x 27.6 (W) x 23mm (H) mean it takes it minimal space on your PCB. Plastic housing resists abrasion in demanding industrial settings to deliver a long service life.
Features & Benefits
• 83% conversion efficiency, so it's an energy-conscious choice
• Broad operating temperature range between -40°C and +50°C for use in harsh industrial settings
• Mean time between failures of 830,000 hours, so you can count on long-lasting performance
• Broad operating temperature range between -40°C and +50°C for use in harsh industrial settings
• Mean time between failures of 830,000 hours, so you can count on long-lasting performance
Applications
• Industrial power supplies
• Automotive workshops
• Medical equipment
• Automotive workshops
• Medical equipment
Can I use this converter in humid conditions?
Yes. This converter operates in a relative humidity range between 20% and 90% in non-condensing environments, so it functions in humid conditions.
