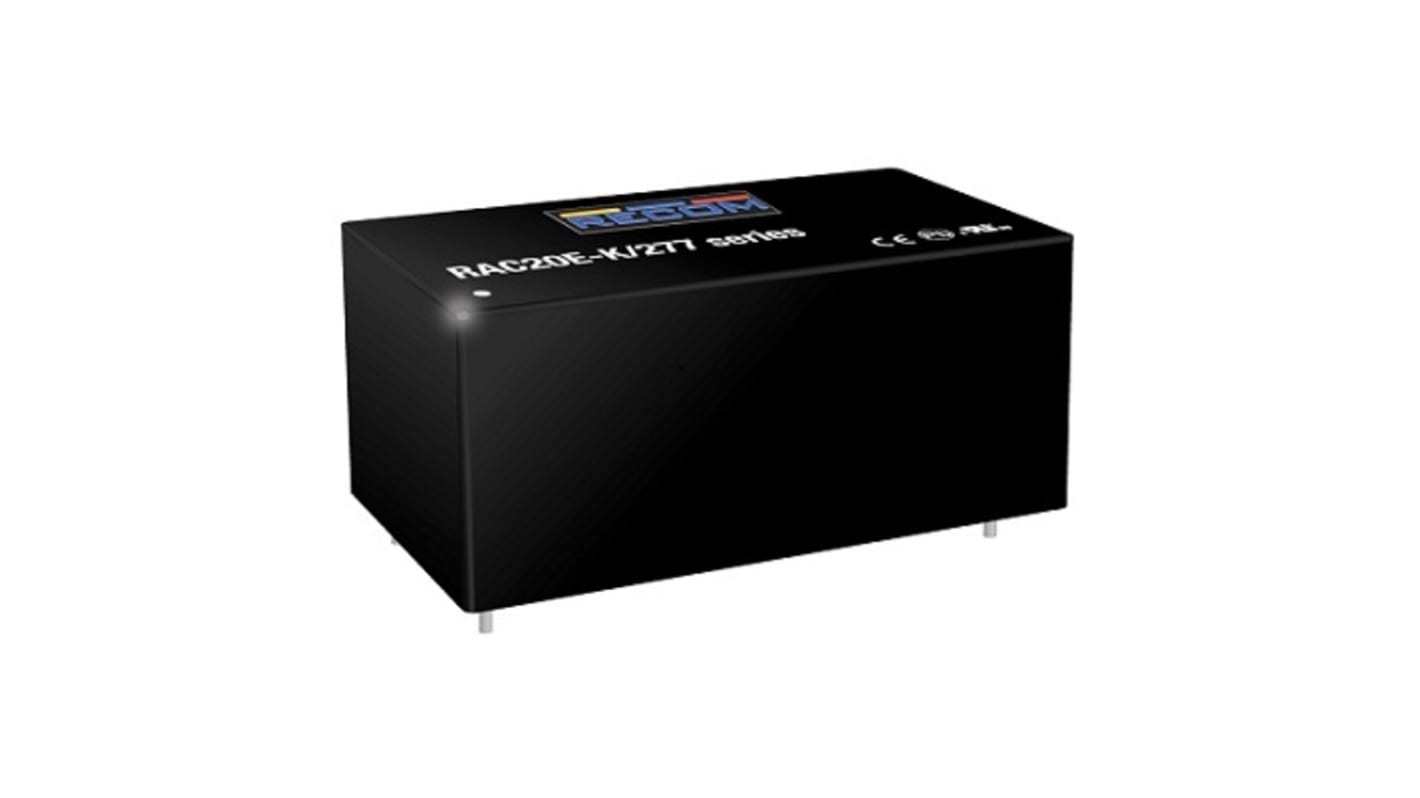

Recom, AC/DC Converter 4000 mA, 5 V, 5 V ac 4-Pin
- RS Stock No.:
- 249-8833
- Mfr. Part No.:
- RAC20E-05SK/277
- Brand:
- Recom
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 249-8833
- Mfr. Part No.:
- RAC20E-05SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 5V | |
| Mount Type | Through Hole | |
| Output Power | 20W | |
| Pin Count | 4 | |
| Switching Frequency | 120kHz | |
| Maximum Output Current | 4000mA | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CE, RoHS 2+, REACH, UL 62368-1, EN55032 Class B | |
| Series | RAC20E-K/277 | |
| Length | 52.7mm | |
| Height | 23mm | |
| Minimum Output Voltage | 5V ac | |
| Minimum Output Current | 4000mA | |
| Supply Current | 400mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 5V | ||
Mount Type Through Hole | ||
Output Power 20W | ||
Pin Count 4 | ||
Switching Frequency 120kHz | ||
Maximum Output Current 4000mA | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CE, RoHS 2+, REACH, UL 62368-1, EN55032 Class B | ||
Series RAC20E-K/277 | ||
Length 52.7mm | ||
Height 23mm | ||
Minimum Output Voltage 5V ac | ||
Minimum Output Current 4000mA | ||
Supply Current 400mA | ||
Automotive Standard No | ||
RECOM AC-DC Converter, 305V AC Maximum Input Voltage, 5V DC Maximum Output Voltage - EK Series - RAC20E-05SK/277
Got a mismatch between power input and output? Choose this AC-DC converter from RECOM to get your equipment up and running. It takes a wide input range from 85 to 305V AC and steps it down to a steady 5V DC. An internal fuse protects your kit from damage caused by overcurrent or short circuits. The unit's typical efficiency is 80%, which means minimal energy is wasted and more power is available for your tasks. Plastic housing resists moisture and abrasion to deliver a longer service life in challenging industrial conditions.
Features & Benefits
• Broad operating temperature range between -40°C and +50°C for use in harsh industrial environments
• Light 60g weight doesn't add unnecessary load to your setup, reducing strain
• Mean time between failures of 830,000 hours indicates this a durable option
Applications
• Transportation industry
• Industrial power supplies
• Food and beverage production
What size is this converter?
This unit has compact dimensions of 52.7 (L) x 27.6 (W) x 23mm (H), so it fits neatly onto a crowded PCB.
