Recom, AC/DC Converter 167 mA, 12 V dc, 12 V dc 4-Pin, 1.35 x 0.88 in RAC02E-12SK/277
- RS Stock No.:
- 274-5199
- Mfr. Part No.:
- RAC02E-12SK/277
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£6.67
(exc. VAT)
£8.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 20 unit(s) shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.67 |
| 5 - 9 | £6.46 |
| 10 - 24 | £6.28 |
| 25 - 49 | £6.07 |
| 50 + | £5.88 |
*price indicative
- RS Stock No.:
- 274-5199
- Mfr. Part No.:
- RAC02E-12SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V ac | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 12V dc | |
| Mount Type | Through Hole | |
| Output Power | 2W | |
| Pin Count | 4 | |
| Maximum Output Current | 167mA | |
| Package Type | 1.35 x 0.88 in | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Length | 33mm | |
| Height | 15mm | |
| Series | RAC02E | |
| Standards/Approvals | EN55032 Class B EMC, EN60335‑1, CE, EN60601‑1‑2, EN62368‑1, UL62368‑1, CB, REACH & RoHS, LPS & reinforced Class II insulation | |
| Minimum Output Current | 167mA | |
| Minimum Output Voltage | 12V dc | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V ac | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 12V dc | ||
Mount Type Through Hole | ||
Output Power 2W | ||
Pin Count 4 | ||
Maximum Output Current 167mA | ||
Package Type 1.35 x 0.88 in | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Length 33mm | ||
Height 15mm | ||
Series RAC02E | ||
Standards/Approvals EN55032 Class B EMC, EN60335‑1, CE, EN60601‑1‑2, EN62368‑1, UL62368‑1, CB, REACH & RoHS, LPS & reinforced Class II insulation | ||
Minimum Output Current 167mA | ||
Minimum Output Voltage 12V dc | ||
Automotive Standard No | ||

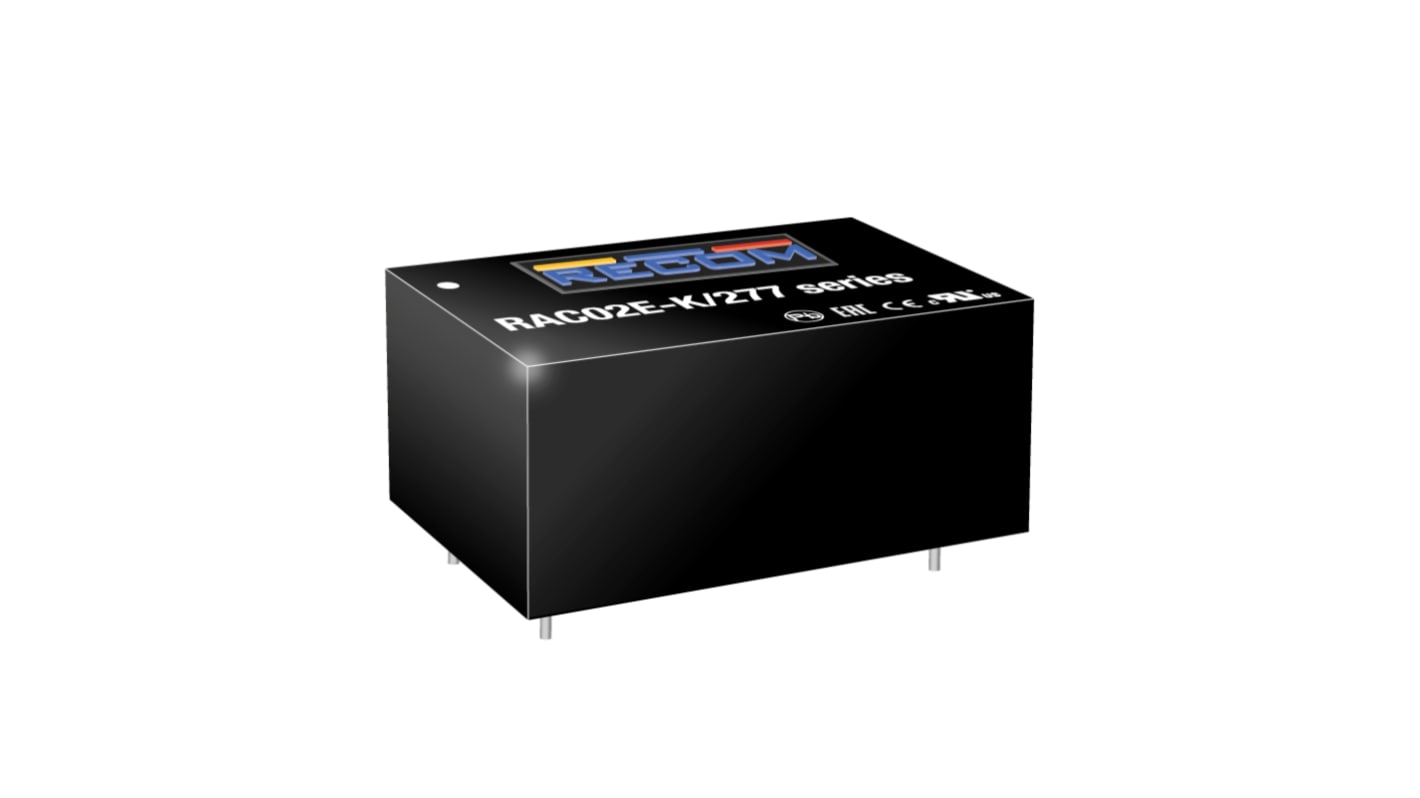

The Recom AC/DC converter is a encapsulated, print-mountable module, delivers an uncompromising 2 watts of output power with tightly regulated outputs. It holds international safety certifications for industrial, domestic, ITE and are suitable for worldwi
Standby mode optimized for Eco designs
Low profile
