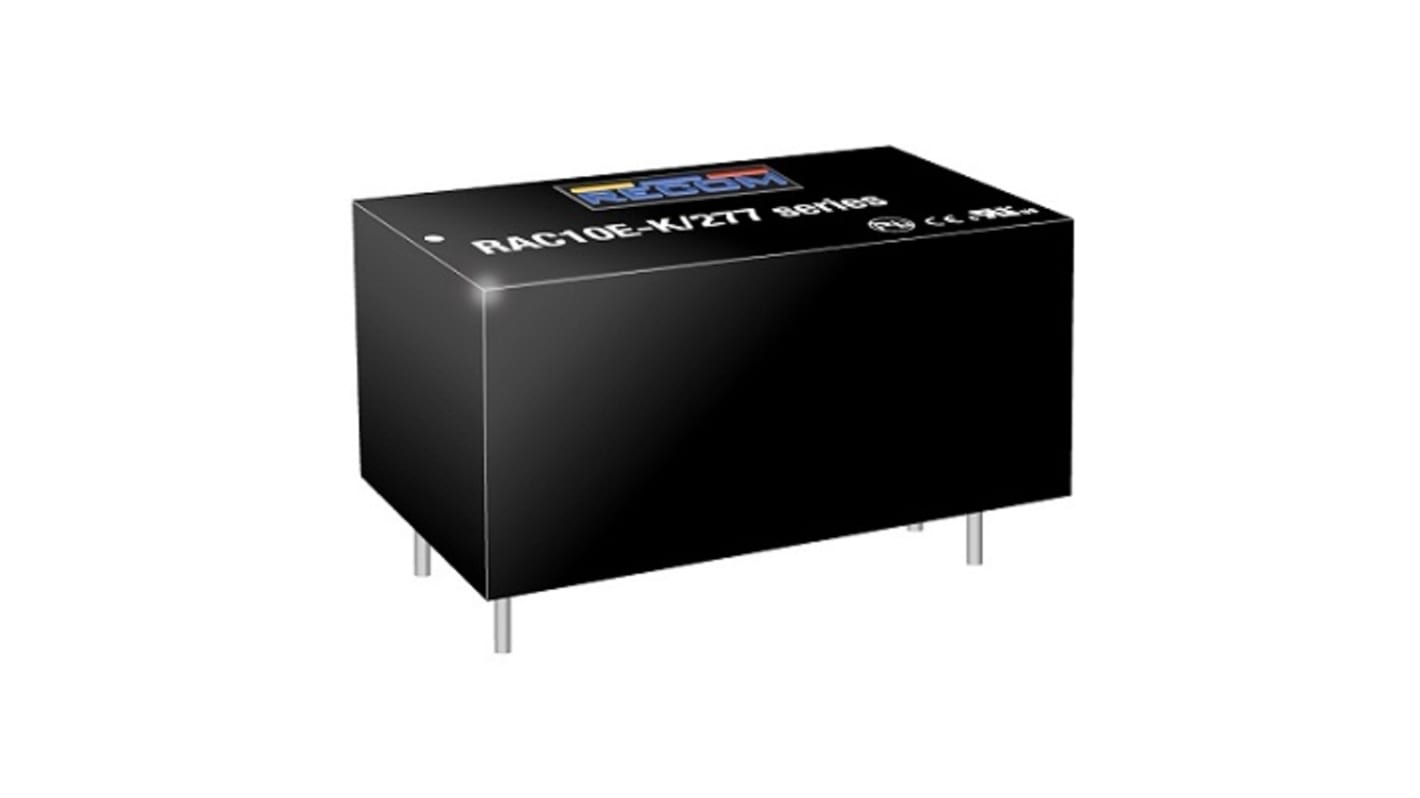

Recom, AC/DC Converter 2.5 A, 3.3V, 3.3 V 4-Pin RAC10E-3.3SK/277
- RS Stock No.:
- 249-8830
- Mfr. Part No.:
- RAC10E-3.3SK/277
- Brand:
- Recom
Get a bulk buy discount
Add 5 more to save £0.95
View bulk pricing optionsSubtotal (1 unit)*
£6.70
(exc. VAT)
£8.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £6.70 | - |
| 5 - 9 | £6.51 | £0.95 |
| 10 - 24 | £6.29 | £4.10 |
| 25 - 49 | £6.10 | £15.00 |
| 50 + | £5.90 | £40.00 |
*price indicative
- RS Stock No.:
- 249-8830
- Mfr. Part No.:
- RAC10E-3.3SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 305V | |
| Maximum Output Voltage | 3.3V | |
| Mount Type | Through Hole | |
| Output Power | 10W | |
| Pin Count | 4 | |
| Switching Frequency | 80kHz | |
| Maximum Output Current | 2.5A | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Width | 25.4mm | |
| Length | 45.7mm | |
| Standards/Approvals | EN 55032, EN 60601-1-2, CB, CE, REACH, EN 62368-1, RoHS 2, UL 62368-1 | |
| Height | 21.5mm | |
| Series | RAC10E-K/277 | |
| Minimum Output Current | 2.5A | |
| Minimum Output Voltage | 3.3V | |
| Automotive Standard | No | |
| Supply Current | 200mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 305V | ||
Maximum Output Voltage 3.3V | ||
Mount Type Through Hole | ||
Output Power 10W | ||
Pin Count 4 | ||
Switching Frequency 80kHz | ||
Maximum Output Current 2.5A | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Width 25.4mm | ||
Length 45.7mm | ||
Standards/Approvals EN 55032, EN 60601-1-2, CB, CE, REACH, EN 62368-1, RoHS 2, UL 62368-1 | ||
Height 21.5mm | ||
Series RAC10E-K/277 | ||
Minimum Output Current 2.5A | ||
Minimum Output Voltage 3.3V | ||
Automotive Standard No | ||
Supply Current 200mA | ||
RECOM AC-DC Converter, 0.05mA Current Limit, 3.3V DC Maximum Output Voltage - RAC10E-K Series - RAC10E-3.3SK/277
Get your appliances up and running in a jiffy with this AC-DC converter from RECOM. It handles input voltages up to 305V AC, so it's a versatile piece of kit. Thanks to a maximum start-up time of 50ms, it doesn't take long to spark your equipment into life. Typical efficiency of 76% keeps power wastage low, so this is an energy-saving option. A reliable output accuracy of ±2.0% is on hand to promote consistent workflow. Through-hole mounting achieves a solid connection that resists vibration and delivers reliable performance.
Features & Benefits
• Compact dimensions of 45.7 (L) x 25.4 (W) x 21.5mm (H) mean it's a space-efficient choice
• Mean time between failures of 1,710,000 hours, so you can rely on it to go the distance
• Weighs in at 52g, so doesn't add excess load to your setup
Applications
• Consumer electronics
• Medical equipment
• Mechanical workshops
Can I use this converter in harsh industrial conditions?
A broad operating temperature range between -40°C and +65°C makes this a safe option for use in harsh industrial conditions.
