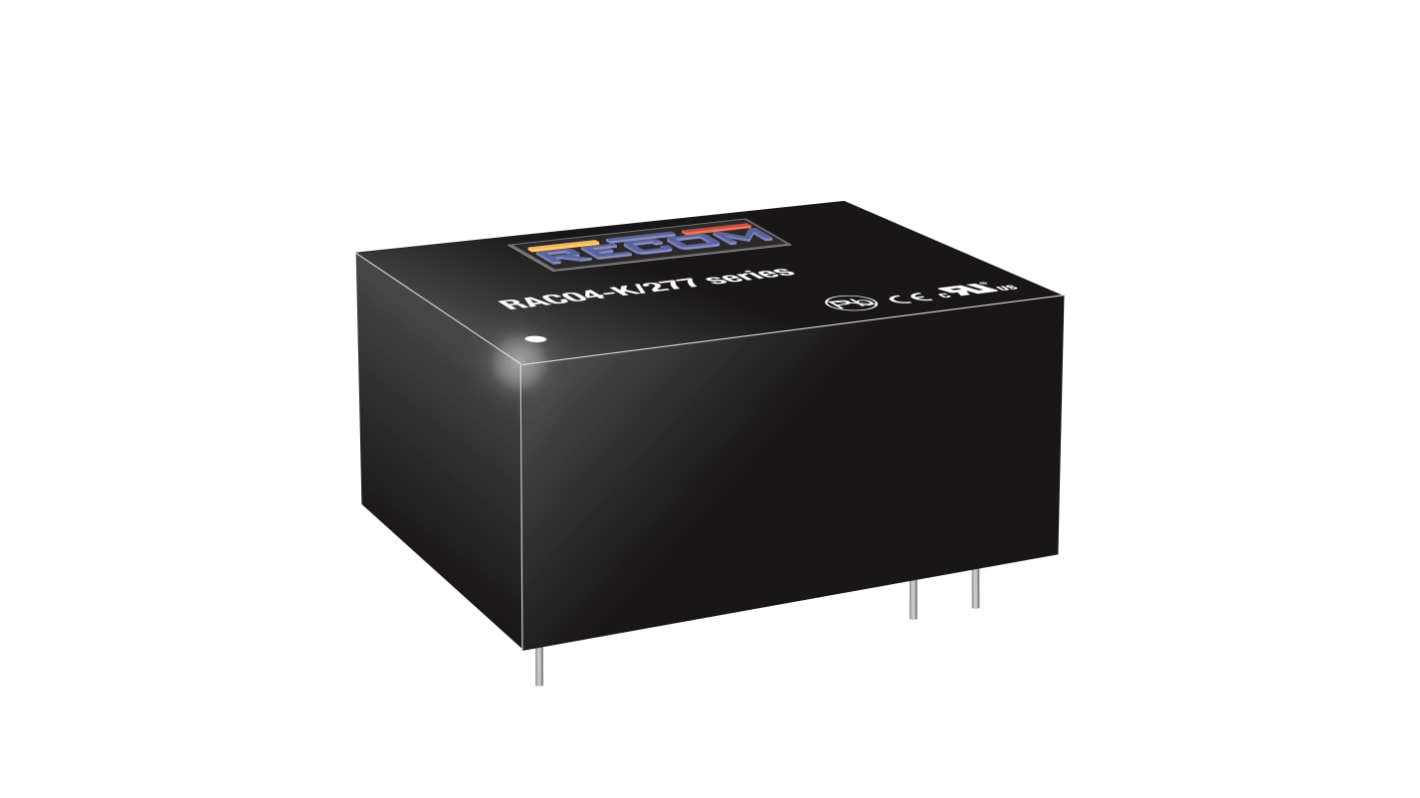

Recom, AC/DC Converter 1.2 A, 3.3V dc, 3.3 V dc 6-Pin RAC04-3.3SK/277
- RS Stock No.:
- 274-5170
- Mfr. Part No.:
- RAC04-3.3SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.10
(exc. VAT)
£8.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 11 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.10 |
| 5 - 9 | £6.88 |
| 10 - 24 | £6.67 |
| 25 - 49 | £6.46 |
| 50 + | £6.23 |
*price indicative
- RS Stock No.:
- 274-5170
- Mfr. Part No.:
- RAC04-3.3SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V ac | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 3.3V dc | |
| Mount Type | Through Hole | |
| Output Power | 4W | |
| Switching Frequency | 130kHz | |
| Pin Count | 6 | |
| Maximum Output Current | 1.2A | |
| Minimum Input Voltage | 80V ac | |
| Topology | Regulated Flyback | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Width | 27.2mm | |
| Series | RAC04 | |
| Length | 36.7mm | |
| Standards/Approvals | EN61204-3, EN55014-1/-2, UL62368-1, EN61558-1, EN55032, FCC 47 Part 15, REACH, EN61558-2-16, IEC62368-1, EN62368-1, EN55024, RoHS2+, IEC60950-1, EN61010-1, EN60335-1 | |
| Height | 17.4mm | |
| Minimum Output Voltage | 3.3V dc | |
| Supply Current | 250mA | |
| Automotive Standard | No | |
| Minimum Output Current | 1200mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V ac | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 3.3V dc | ||
Mount Type Through Hole | ||
Output Power 4W | ||
Switching Frequency 130kHz | ||
Pin Count 6 | ||
Maximum Output Current 1.2A | ||
Minimum Input Voltage 80V ac | ||
Topology Regulated Flyback | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Width 27.2mm | ||
Series RAC04 | ||
Length 36.7mm | ||
Standards/Approvals EN61204-3, EN55014-1/-2, UL62368-1, EN61558-1, EN55032, FCC 47 Part 15, REACH, EN61558-2-16, IEC62368-1, EN62368-1, EN55024, RoHS2+, IEC60950-1, EN61010-1, EN60335-1 | ||
Height 17.4mm | ||
Minimum Output Voltage 3.3V dc | ||
Supply Current 250mA | ||
Automotive Standard No | ||
Minimum Output Current 1200mA | ||
- COO (Country of Origin):
- CN
The Recom AC/DC Converter delivers an uncompromising 4 watts of continuous output power in harsh industrial and household environments. A peak load capability of up to 150 percent supports dynamic power demands of applications.
Fully encapsulated module
Easy to use
