Recom, AC-DC Converter 420mA 4-Pin RAC10E-24SK/277
- RS Stock No.:
- 249-8827
- Mfr. Part No.:
- RAC10E-24SK/277
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 17 units)*
£145.571
(exc. VAT)
£174.692
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 17 - 68 | £8.563 | £145.57 |
| 85 - 153 | £8.306 | £141.20 |
| 170 - 408 | £8.05 | £136.85 |
| 425 - 833 | £7.792 | £132.46 |
| 850 + | £7.535 | £128.10 |
*price indicative
- RS Stock No.:
- 249-8827
- Mfr. Part No.:
- RAC10E-24SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V | |
| Maximum Output Voltage | 24V | |
| Mounting Type | Through Hole | |
| Pin Count | 4 | |
| Dimensions | 45.7 x 25.4 x 21.5mm | |
| Maximum Output Current | 420mA | |
| Input Voltage Range | 85 → 305 Vac | |
| Current Limit | 0.05mA | |
| Minimum Input Voltage | 86 Vac | |
| Maximum Operating Temperature | +80 °C | |
| Length | 52.5mm | |
| Width | 27.4mm | |
| Height | 23mm | |
| Minimum Operating Temperature | -40 °C | |
| Operating Temperature Range | -40 → +80 °C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V | ||
Maximum Output Voltage 24V | ||
Mounting Type Through Hole | ||
Pin Count 4 | ||
Dimensions 45.7 x 25.4 x 21.5mm | ||
Maximum Output Current 420mA | ||
Input Voltage Range 85 → 305 Vac | ||
Current Limit 0.05mA | ||
Minimum Input Voltage 86 Vac | ||
Maximum Operating Temperature +80 °C | ||
Length 52.5mm | ||
Width 27.4mm | ||
Height 23mm | ||
Minimum Operating Temperature -40 °C | ||
Operating Temperature Range -40 → +80 °C | ||

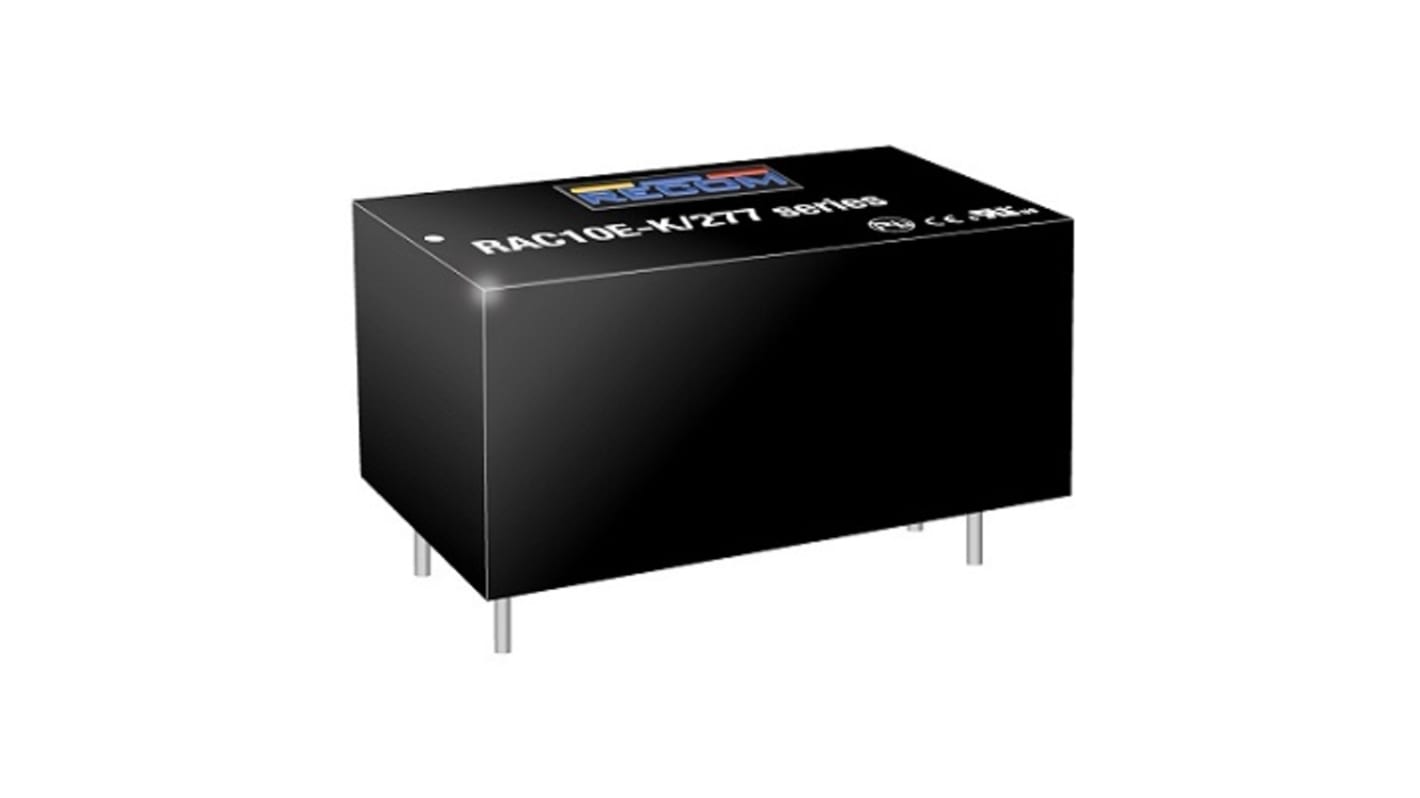

RECOM AC-DC Converter, 416mA Output Current, 4 Pins - RAC10E-K Series - RAC10E-24SK/277
Get your system up and running smoothly with this AC-DC converter from RECOM. It switches AC inputs to a fixed output up to 24V DC, so it's suitable for use with low-power applications. Thanks to its 50ms start-up time, you can depend on the unit to get straight to work. An 84% conversion efficiency rate makes it a smart way to save energy and cut waste heat out of the equation. Electrical faults won't be a problem, as built-in overcurrent, overvoltage and short-circuit protection keeps everything running without a hitch.
Features & Benefits
• Accepts inputs between 85 and 305V AC, so can be used with standard power supplies
• Through-hole mounting for quick installation on a circuit board
• Line regulation rating of ±0.5% means you can be sure of glitch-free outputs
• Supplied in a tube of 17 units, so you'll have plenty in supply
• Through-hole mounting for quick installation on a circuit board
• Line regulation rating of ±0.5% means you can be sure of glitch-free outputs
• Supplied in a tube of 17 units, so you'll have plenty in supply
Applications
• Lighting systems
• Automotive manufacturing
• Rail industry
• Automotive manufacturing
• Rail industry
What temperatures can I use this product in?
This converter handles operating temperatures between -40°C and +65°C, so it's a reliable choice for use in tough industrial settings.
