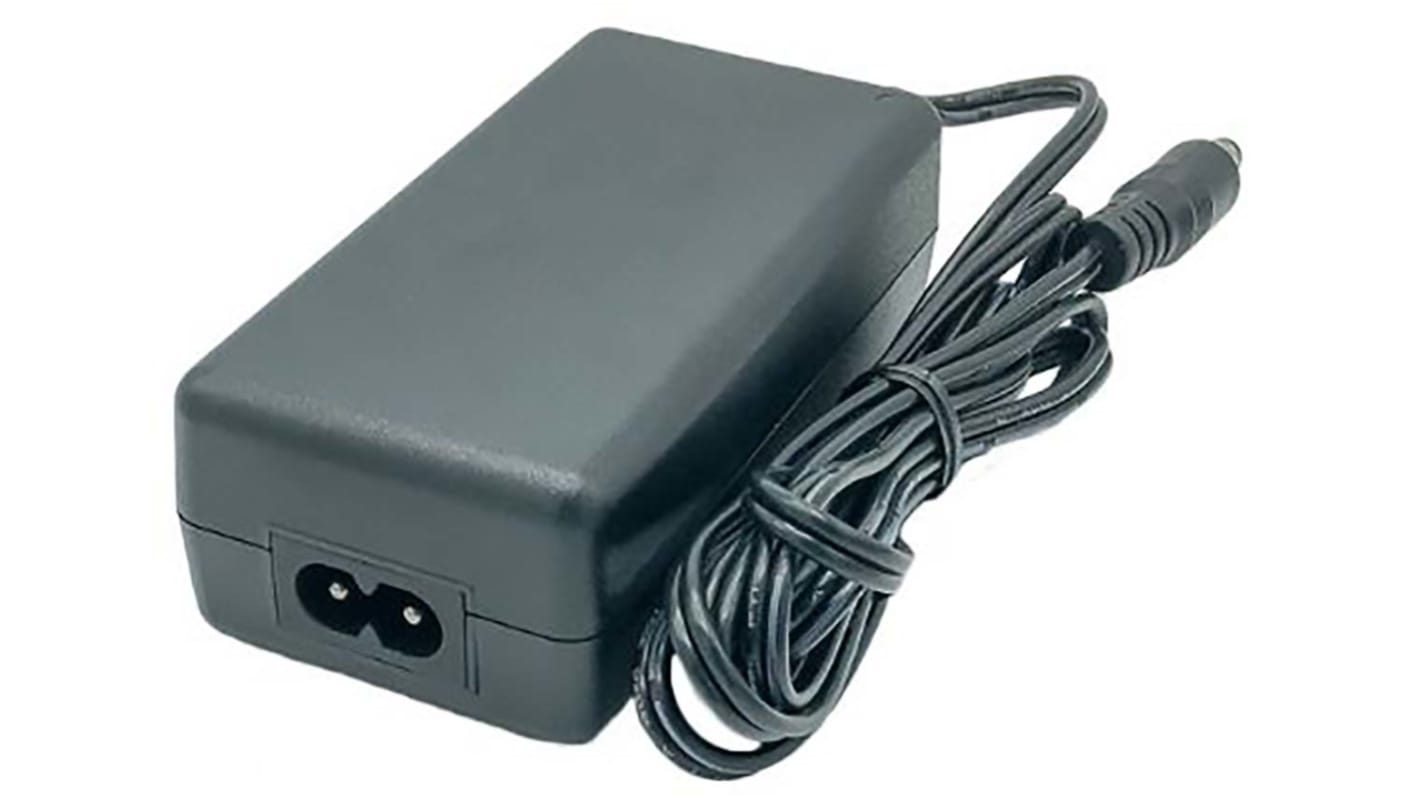

Phihong 25 W Power Adapter AC/DC Adapter IEC 5V dc Output, 5 A
- RS Stock No.:
- 204-7289
- Mfr. Part No.:
- PPL36W-050
- Brand:
- Phihong
Bulk discount available
Subtotal (1 unit)*
£20.48
(exc. VAT)
£24.58
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 16 unit(s) shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £20.48 |
| 5 - 9 | £19.86 |
| 10 - 24 | £19.25 |
| 25 - 49 | £18.63 |
| 50 + | £18.01 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 204-7289
- Mfr. Part No.:
- PPL36W-050
- Brand:
- Phihong
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phihong | |
| Product Type | AC/DC Adapter | |
| Sub Type | Power Adapter | |
| Plug Type | IEC | |
| Output Voltage | 5V dc | |
| Power | 25W | |
| Output Connector Type | 2.1 x 5.5 x 10 mm | |
| Cable Length | 1000mm | |
| Number of Outputs | 5 | |
| Input Connector Type | IEC 60320-C8 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 5A | |
| Maximum Operating Temperature | 400°C | |
| Depth | 33mm | |
| Length | 99mm | |
| Standards/Approvals | cULus 62368-1, IEC 62368-1 | |
| Width | 50mm | |
| Better World Product | Yes | |
| Better World Verification | UL Energy Verified | |
| Maximum Input Voltage | 264V ac | |
| Series | PPL36W | |
| Minimum Input Voltage | 80V ac | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand Phihong | ||
Product Type AC/DC Adapter | ||
Sub Type Power Adapter | ||
Plug Type IEC | ||
Output Voltage 5V dc | ||
Power 25W | ||
Output Connector Type 2.1 x 5.5 x 10 mm | ||
Cable Length 1000mm | ||
Number of Outputs 5 | ||
Input Connector Type IEC 60320-C8 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 5A | ||
Maximum Operating Temperature 400°C | ||
Depth 33mm | ||
Length 99mm | ||
Standards/Approvals cULus 62368-1, IEC 62368-1 | ||
Width 50mm | ||
Better World Product Yes | ||
Better World Verification UL Energy Verified | ||
Maximum Input Voltage 264V ac | ||
Series PPL36W | ||
Minimum Input Voltage 80V ac | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
The Phihong 36W Desktop C18 Adapter which works with a AC input voltage ranges from 90 to 264VAC and AC input frequency ranges from 47 to 63Hz. It can be used in Consumer Electronics, Networking and other applications.
Spill proof case
Over current protection
Over voltage protection
DOE level VI efficiency compliant
