- RS Stock No.:
- 124-2077
- Mfr. Part No.:
- PSAC12R-050(RS)
- Brand:
- Phihong
20 In stock for delivery within 1 working days
Added
Price Each
£20.38
(exc. VAT)
£24.46
(inc. VAT)
Units | Per unit |
1 - 4 | £20.38 |
5 - 9 | £19.36 |
10 - 24 | £18.36 |
25 - 49 | £17.32 |
50 + | £16.30 |
- RS Stock No.:
- 124-2077
- Mfr. Part No.:
- PSAC12R-050(RS)
- Brand:
- Phihong
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

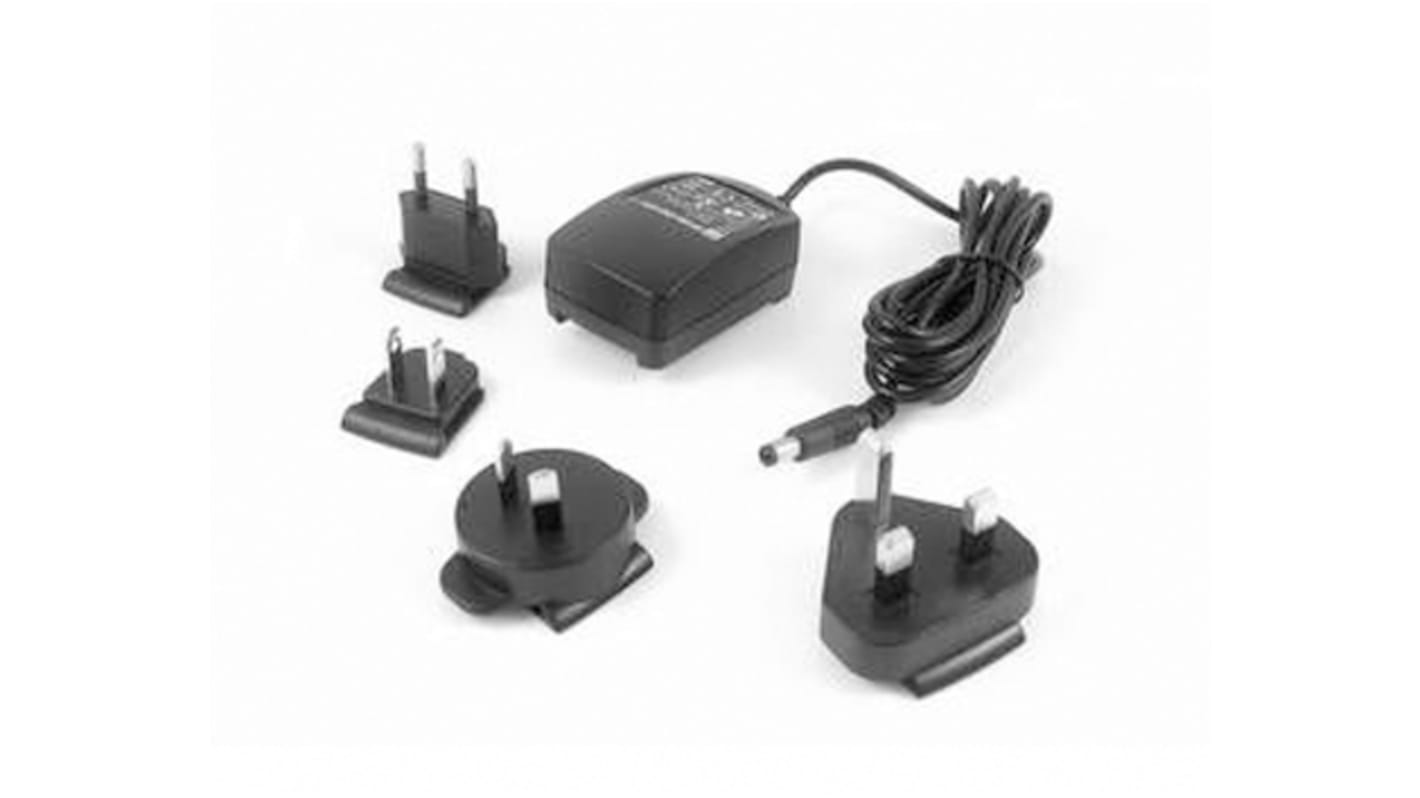

Phihong PSA Series Global Plug-In Power Adapter
Phihong PSA series of global plug-in power adapters are an ideal travel companion for both business and personal devices. The series features interchangeable plug heads which can be easily swapped in and out depending on the location requirement.
Feature and Benefits
Offered in a wide range of 5 - 24V options.
Suitable for a wide range of applications, such as portable electronic equipment.
Offered in a wide range of 5 - 24V options.
Suitable for a wide range of applications, such as portable electronic equipment.
Note
AC input clip-on plugs are sold separately.
Specifications
Attribute | Value |
---|---|
Adapter Type | Plug-In Adapter |
Plug Type | Global Plug |
Output Voltage | 5V dc |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
Output Current | 2.4A |
Maximum Temperature | +40°C |
Output Connector | 2.1 x 5.5 x 10 mm Centre Positive |
Input Connector | Universal Plug |
Number of Outputs | 1 |
Power Rating | 12W |
Cable Length | 1.5m |
Standards Met | CE, cULus, EISA Compliant, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC Class B EN 55022 Class B |
Energy Efficiency Level | VI |
Series | PSAC12R |
Length | 71.7mm |
Depth | 33.25mm |
Type | Universal |
Minimum Temperature | 0°C |
Width | 50mm |
