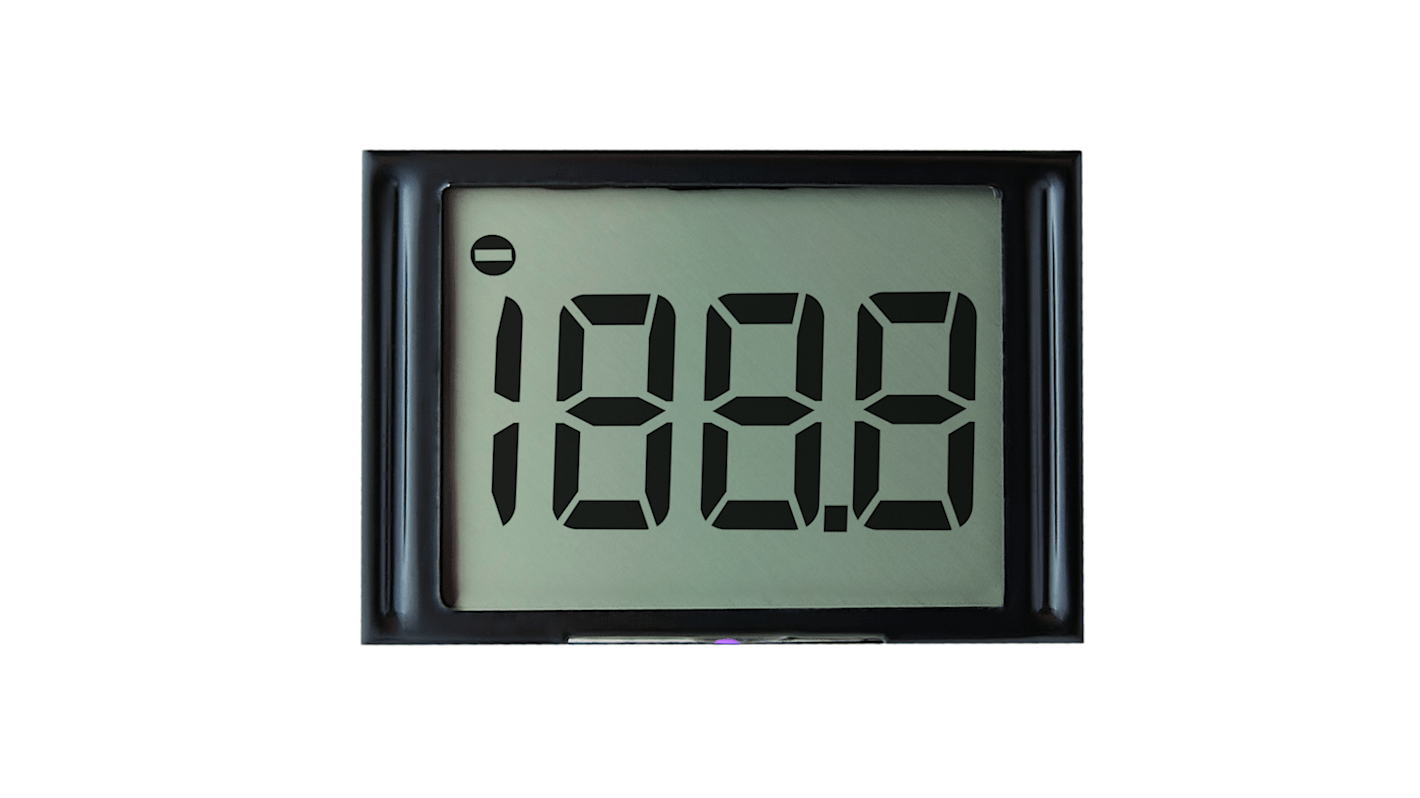

Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
- RS Stock No.:
- 446-2121
- Mfr. Part No.:
- OEM 1B
- Brand:
- Lascar
Bulk discount available
Subtotal (1 unit)*
£24.49
(exc. VAT)
£29.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 52 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.49 |
| 5 - 9 | £23.73 |
| 10 + | £23.25 |
*price indicative
- RS Stock No.:
- 446-2121
- Mfr. Part No.:
- OEM 1B
- Brand:
- Lascar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lascar | |
| Current Type | DC | |
| Number of Digits | 3.5 | |
| Display Type | LCD | |
| Depth | 5.5mm | |
| Supply Voltage | 7.5 → 14 V dc | |
| Digit Height | 8 mm | |
| Meter Accuracy | ±1 % | |
| Analogue Effect | Digits Only | |
| Minimum Temperature | 0°C | |
| Meter Type | Voltmeter | |
| Maximum Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand Lascar | ||
Current Type DC | ||
Number of Digits 3.5 | ||
Display Type LCD | ||
Depth 5.5mm | ||
Supply Voltage 7.5 → 14 V dc | ||
Digit Height 8 mm | ||
Meter Accuracy ±1 % | ||
Analogue Effect Digits Only | ||
Minimum Temperature 0°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +50°C | ||
Ultra-Compact LCD Voltmeter
The OEM 1B uses the latest miniaturisation techniques to produce a very compact 3 digit LCD voltmeter. This device is designed to be a drop-in component in most medium and high volume applications, ranging from personal instrumentation and integral sensor indicators to measurement probes. Connection to the module is via two dual in line rows of pins.
Features and Benefits
8mm digit height
200mV d.c. full scale reading
Auto-zero and auto-polarity
Selectable decimal points
Compact design
200mV d.c. full scale reading
Auto-zero and auto-polarity
Selectable decimal points
Compact design
LCD 5.5 to 15mm Digit Height, OEM Applications
All have a full scale deflection of 200mVd.c. and user selectable decimal points. All have an operating temperature range of 0 to +50°C unless specified otherwise.
