Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
- RS Stock No.:
- 106-0031
- Mfr. Part No.:
- DPM 950S
- Brand:
- Lascar
Bulk discount available
Subtotal (1 unit)*
£55.30
(exc. VAT)
£66.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £55.30 |
5 - 9 | £53.58 |
10 + | £52.48 |
*price indicative
- RS Stock No.:
- 106-0031
- Mfr. Part No.:
- DPM 950S
- Brand:
- Lascar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lascar | |
Current Type | DC | |
Number of Digits | 3.5 | |
Display Type | LCD | |
Cutout Height | 40mm | |
Cutout Width | 72mm | |
Depth | 8.4mm | |
Supply Voltage | 3.5 → 6.5 V dc | |
Digit Height | 19 mm | |
Meter Accuracy | ±1 % | |
Analogue Effect | Digits Only | |
Minimum Temperature | 0°C | |
Meter Type | Voltmeter | |
Maximum Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Lascar | ||
Current Type DC | ||
Number of Digits 3.5 | ||
Display Type LCD | ||
Cutout Height 40mm | ||
Cutout Width 72mm | ||
Depth 8.4mm | ||
Supply Voltage 3.5 → 6.5 V dc | ||
Digit Height 19 mm | ||
Meter Accuracy ±1 % | ||
Analogue Effect Digits Only | ||
Minimum Temperature 0°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- CN

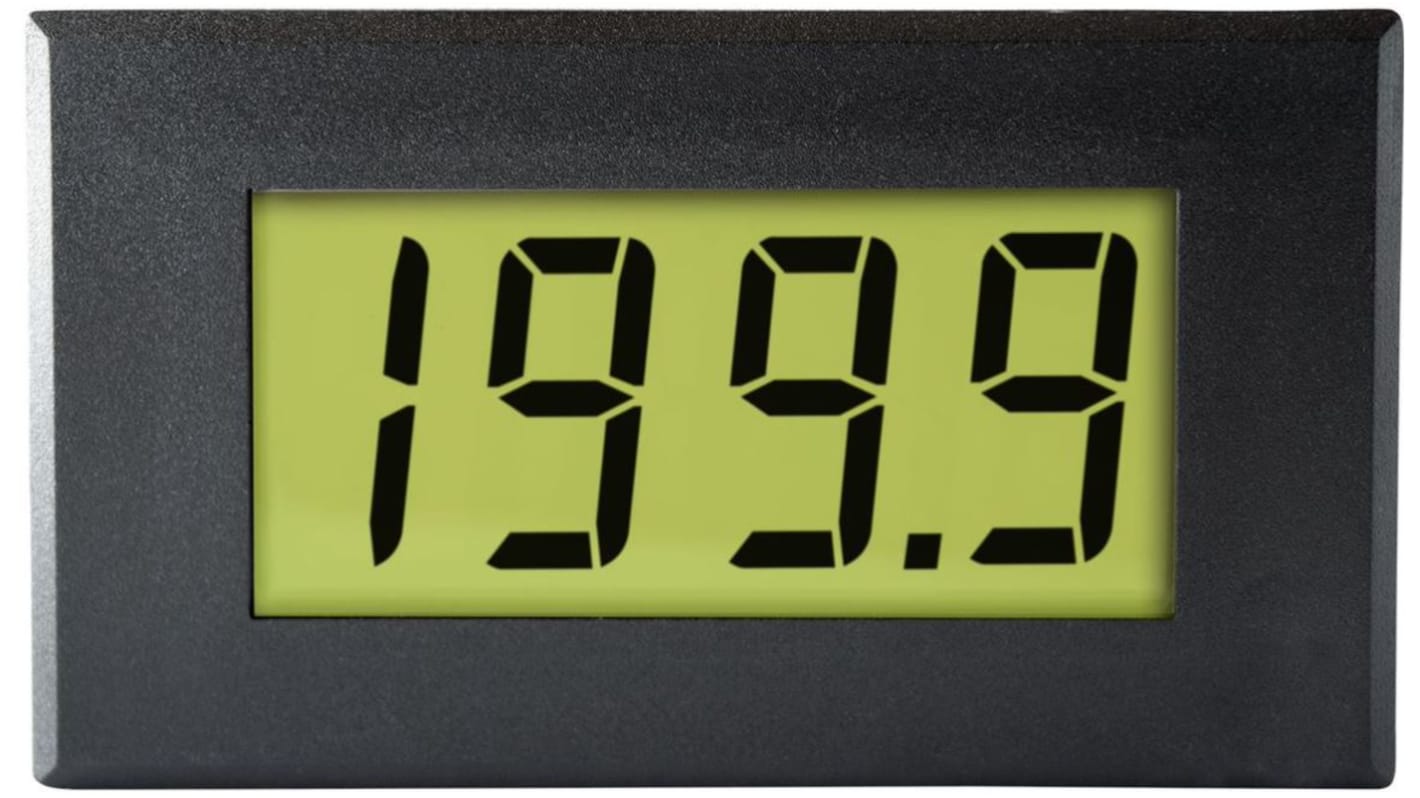

Large 200mV LCD Single Rail Voltmeter with LED Backlighting
Lascar's DPM 950S is a large panel meter featuring a 3 digit LCD with 19mm digit height and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 16-way IDC socket and can be fitted into a panel via the bezel, window and clips provided.
Features and Benefits
19mm Digit Height
IDC Interface
Auto-zero
Auto Polarity
200mV d.c. Full Reading
LED backlight
Single Rail Version
Alarm Annunciator
IDC Interface
Auto-zero
Auto Polarity
200mV d.c. Full Reading
LED backlight
Single Rail Version
Alarm Annunciator
LCD 5.5 to 19mm Digit Height
All have an operating temperature range of 0 to 50°C unless specified otherwise.
