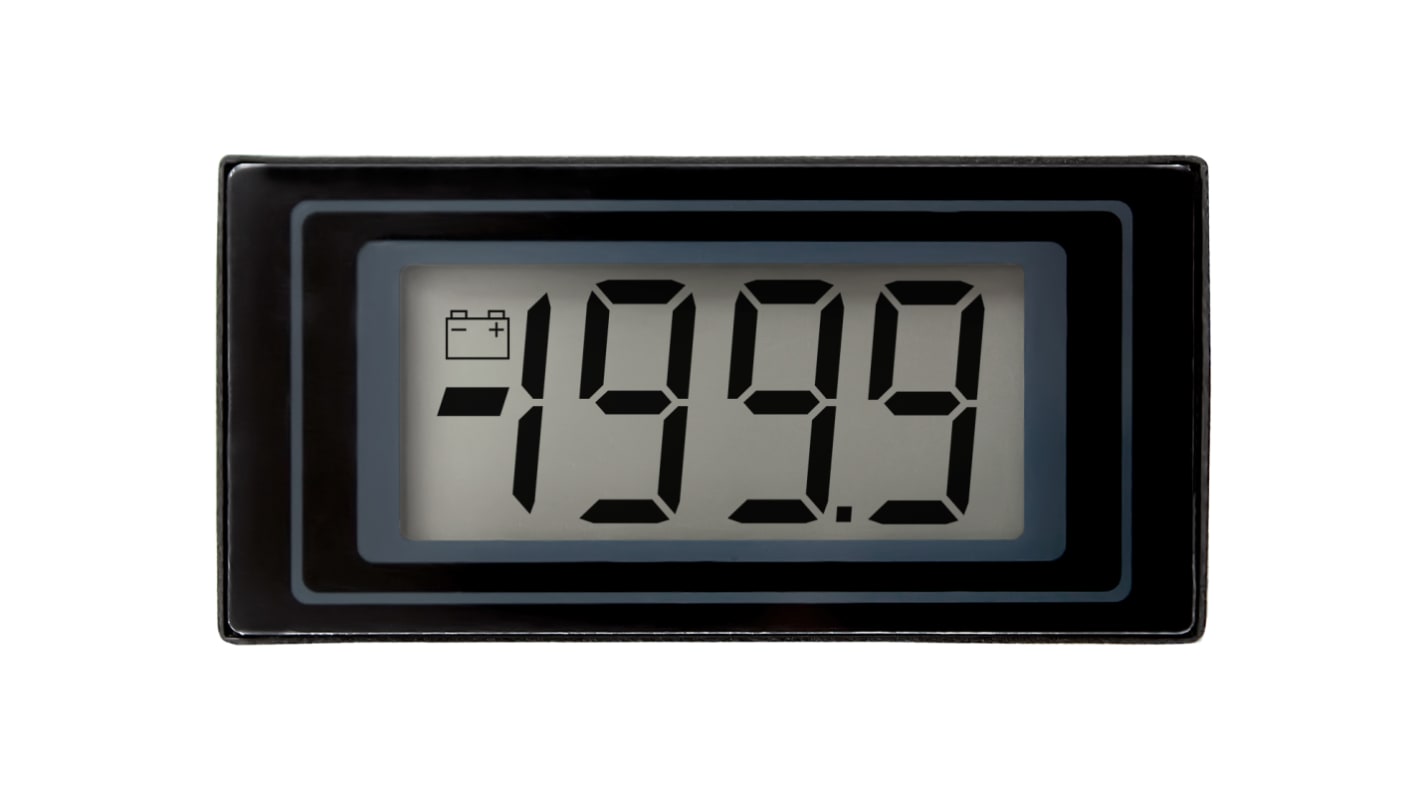

Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
- RS Stock No.:
- 257-212
- Mfr. Part No.:
- DPM 125
- Brand:
- Lascar
Bulk discount available
Subtotal (1 unit)*
£34.29
(exc. VAT)
£41.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £34.29 |
5 - 9 | £33.23 |
10 + | £32.51 |
*price indicative
- RS Stock No.:
- 257-212
- Mfr. Part No.:
- DPM 125
- Brand:
- Lascar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lascar | |
Current Type | DC | |
Number of Digits | 3.5 | |
Display Type | LCD | |
Cutout Height | 22.2mm | |
Cutout Width | 45mm | |
Depth | 9mm | |
Supply Voltage | 7.5 → 14 V | |
Digit Height | 12.5 mm | |
Meter Accuracy | ±1 % | |
Analogue Effect | Digits Only | |
Minimum Temperature | 0°C | |
Meter Type | Voltmeter | |
Maximum Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Lascar | ||
Current Type DC | ||
Number of Digits 3.5 | ||
Display Type LCD | ||
Cutout Height 22.2mm | ||
Cutout Width 45mm | ||
Depth 9mm | ||
Supply Voltage 7.5 → 14 V | ||
Digit Height 12.5 mm | ||
Meter Accuracy ±1 % | ||
Analogue Effect Digits Only | ||
Minimum Temperature 0°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- CN

Lascar Low Power Voltmeter
The Lascar low power voltmeter is a compact instrument, ideally suited for low or high volume applications. It features an exceptionally large display in a miniature package. The meter can be directly plugged into a SIL socket or can be panel mounted using the snap-in bezel. This snap-in bezel incorporates a flat reverse printed window giving a superb appearance that cannot be damaged or rubbed of by contact. The on-card solder pads for essential inter-connections make the selection of the operating mode quick and easy with a minimum of external wiring. It has measurement range is between -200mVDC and 200mVDC and supply voltage ranging between 7.5VDC and 14VDC.
Features and Benefits
Digit height is 12.5mm (0.5in)
Logic selectable decimal points
Auto-zero
Auto-polarity
Full scale reading (F. S. R.) is 200mVDC
Low battery indication
Very low current consumptions
Long battery life
Useful in portable equipment
Operating temperature ranging between 0°C and 50°C
Logic selectable decimal points
Auto-zero
Auto-polarity
Full scale reading (F. S. R.) is 200mVDC
Low battery indication
Very low current consumptions
Long battery life
Useful in portable equipment
Operating temperature ranging between 0°C and 50°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
